Versatile and compact universal combined machine with the more advanced technological solutions for precision, reliability and safety.
Entry-level machine for cabinet work. 3.6hp motors, 2-speed shaper, 3-knife Tersa cutterhead. 12" sawblade with independently adjustable scoring and 5.5' sliding table allows user to crosscut 4x8 panels square and efficiently.


ADVANTAGES

Best cutting
New saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade installed. The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.

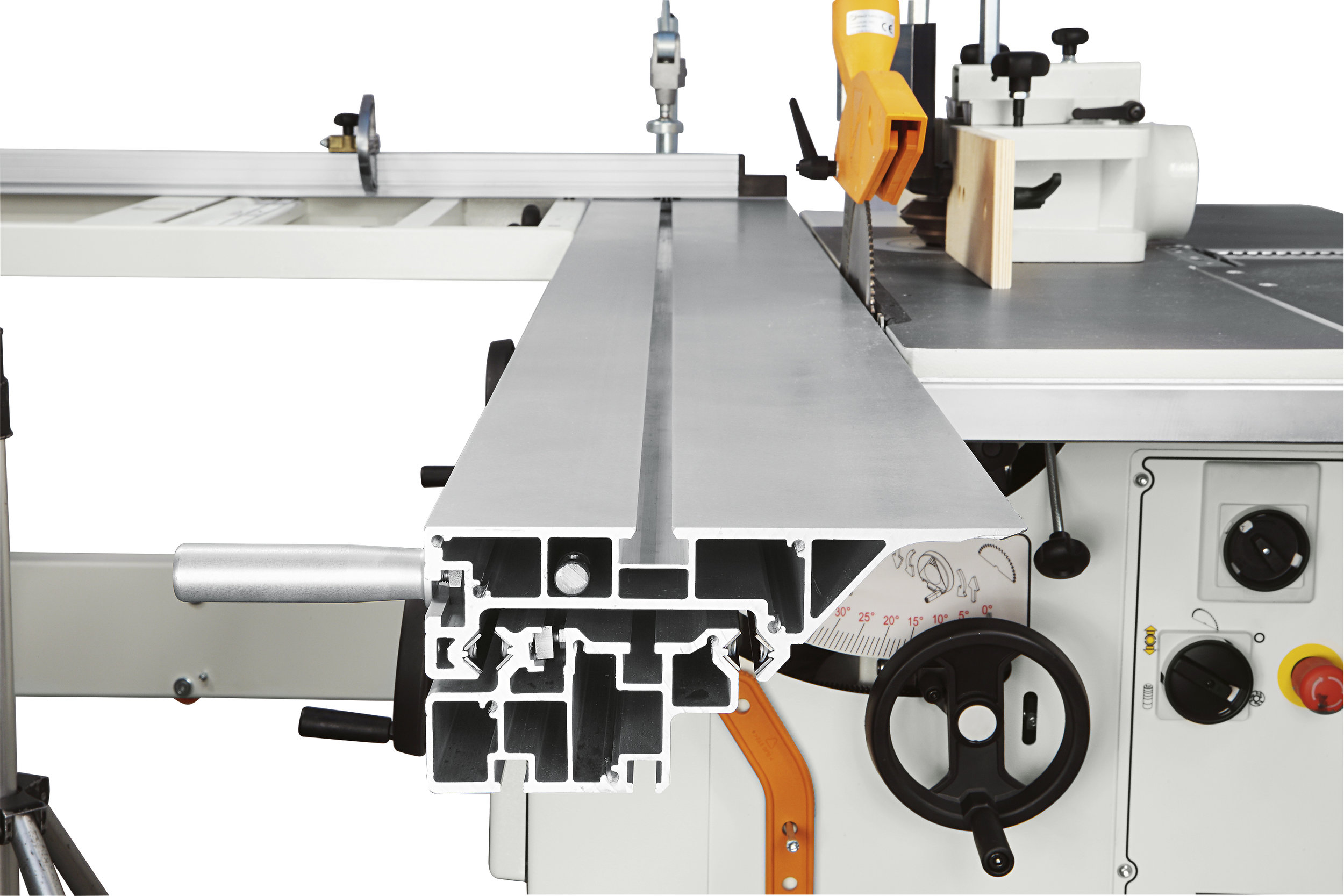

Easier, more precise cutting is possible thanks to perfectly stable support guaranteed, even for large work pieces, by the 270 mm wide sliding table.

Higher efficiency
During the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle, facilitating thicknessing. Work pieces with a maximum height of 220 mm can be machined to the thicknesser. The new design of the dust-conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.

Superior performance
The spindle moulder unit has a spindle with a useful working length of 100 mm. A tool with a maximum diameter of 180 mm can be retracted under the worktable. For machine maximum safety and increased flexibility, a spindle moulder protective hood for shaping is supplied as standard.
