Woodfast PS400C is a high-performance, heavy-duty panel saw built for precision and power in demanding furniture manufacturing and woodworking environments. Featuring full electronic Rise, Fall, and Tilt of the blade and an advanced PLC-controlled rip fence system — all accessible through a user-friendly touchscreen interface — the PS400C is engineered for accuracy, stability, and ease of use. It delivers consistent, high-quality results for professional shops.
Features

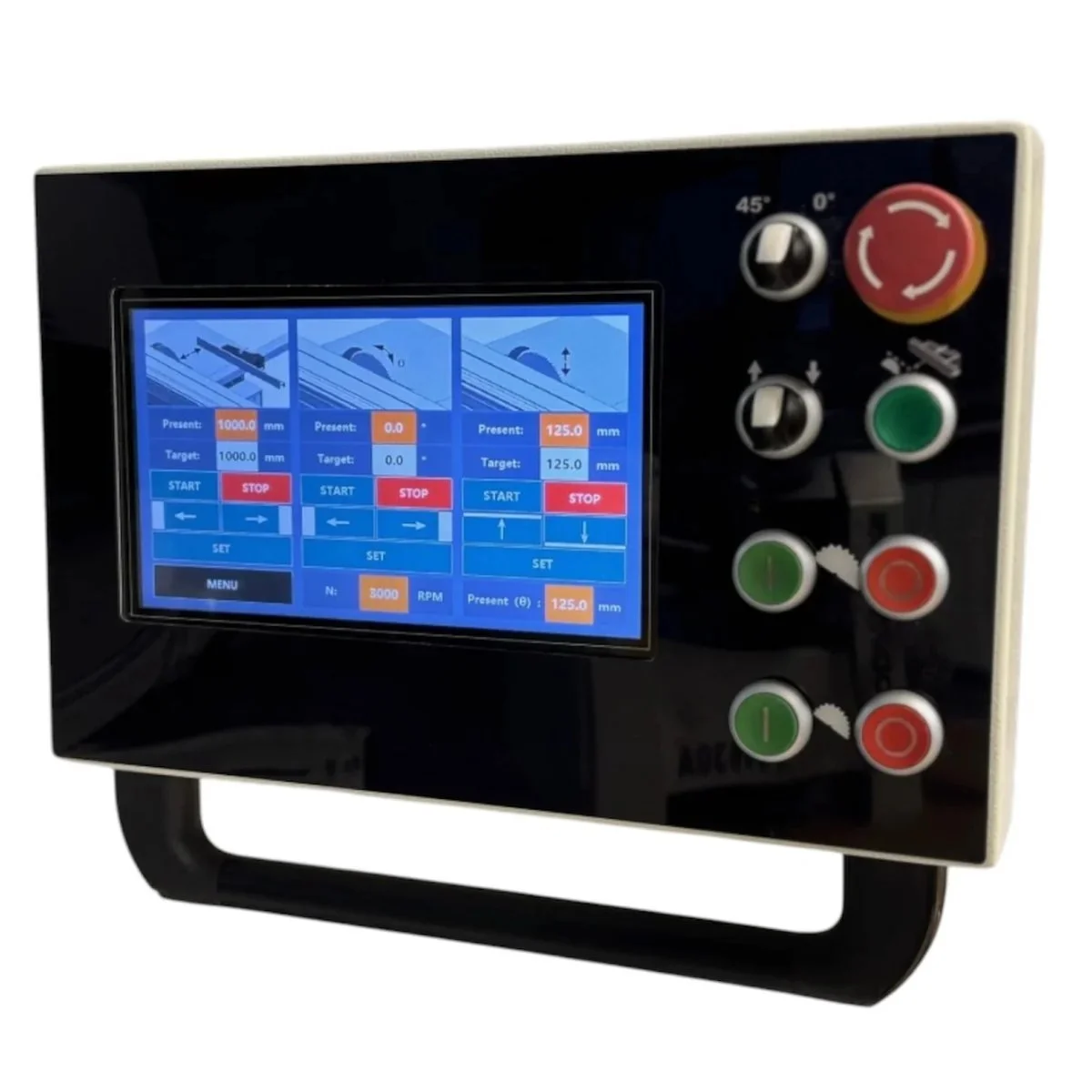

Touchscreen PLC Control: Intuitive touchscreen for seamless control of blade tilt, rise/fall, and rip fence adjustments.

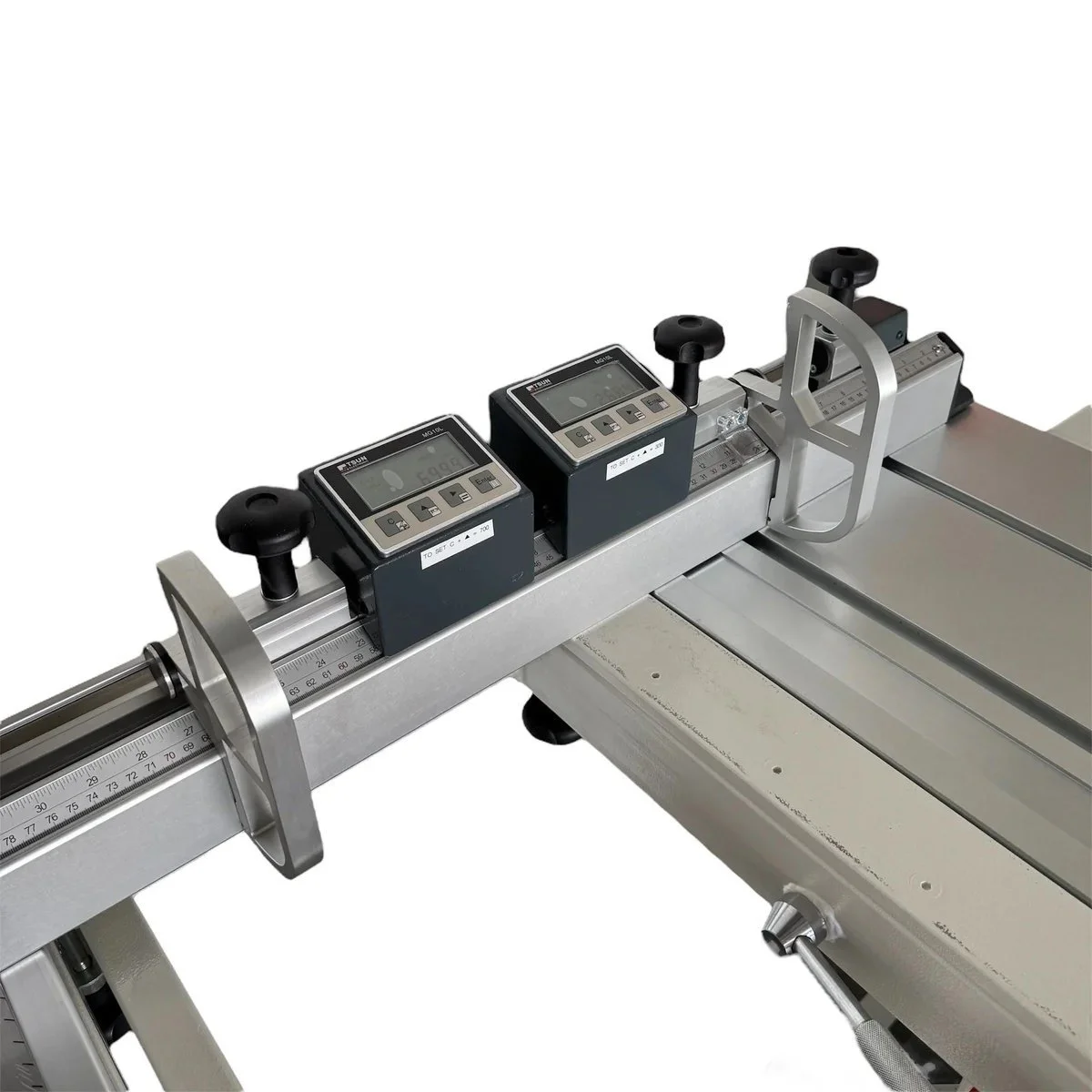

Triple Digital Crosscut Stops: Three crosscut stops with digital displays and two digital readouts for ultra-precise cutting.
Overhead Blade Guard: Integrated safety guard provides enhanced operator protection and clear visibility of the cutting area.
Robust Cast Iron Saw Unit: Reduces vibration and adds long-term durability and cutting stability.

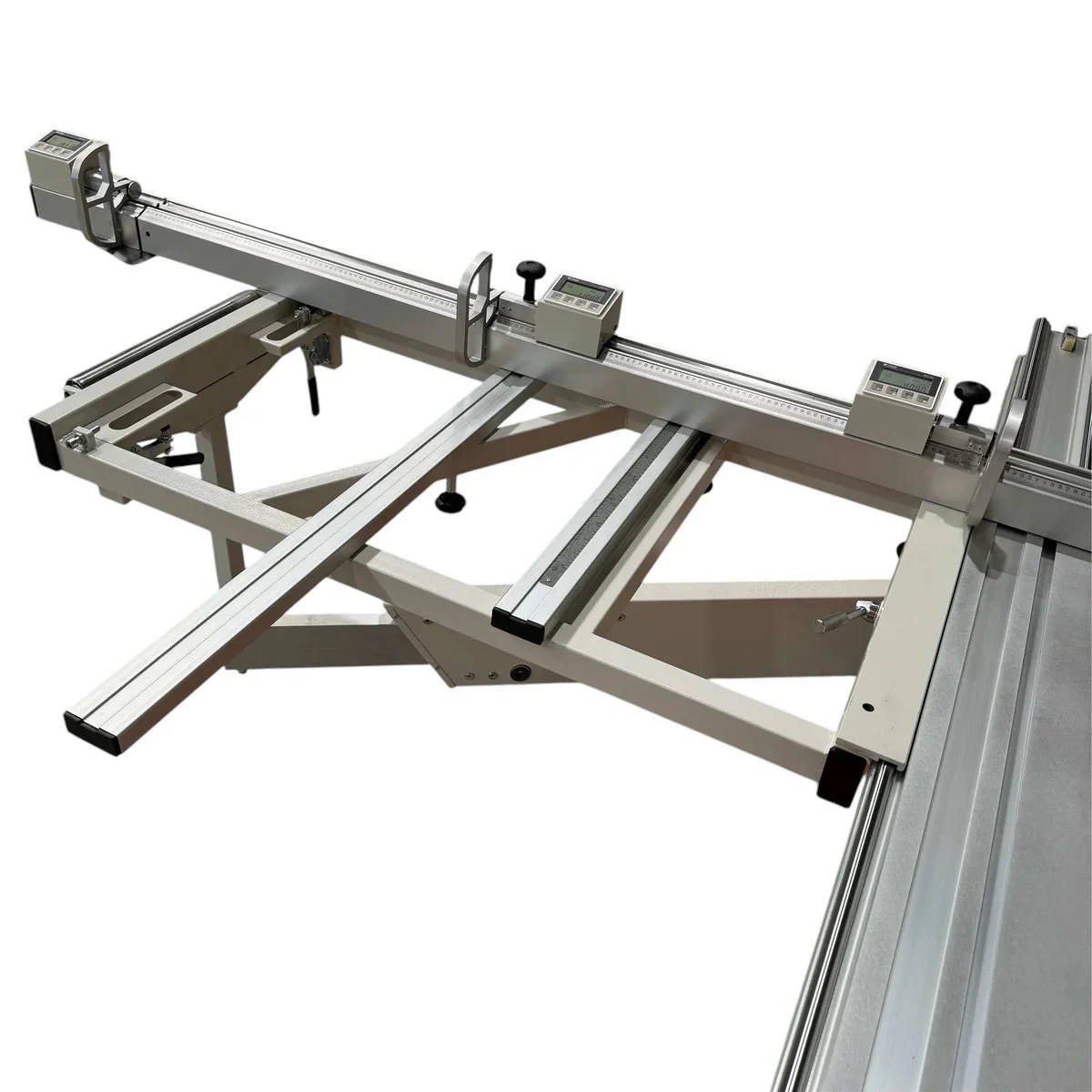

Large Crosscut Fence: Heavy-duty, reversible fence stops ensure reliable and accurate crosscutting.
Dual Vertical Shaft Mounting: Guarantees smooth, consistent motion of the saw unit for precise blade travel.

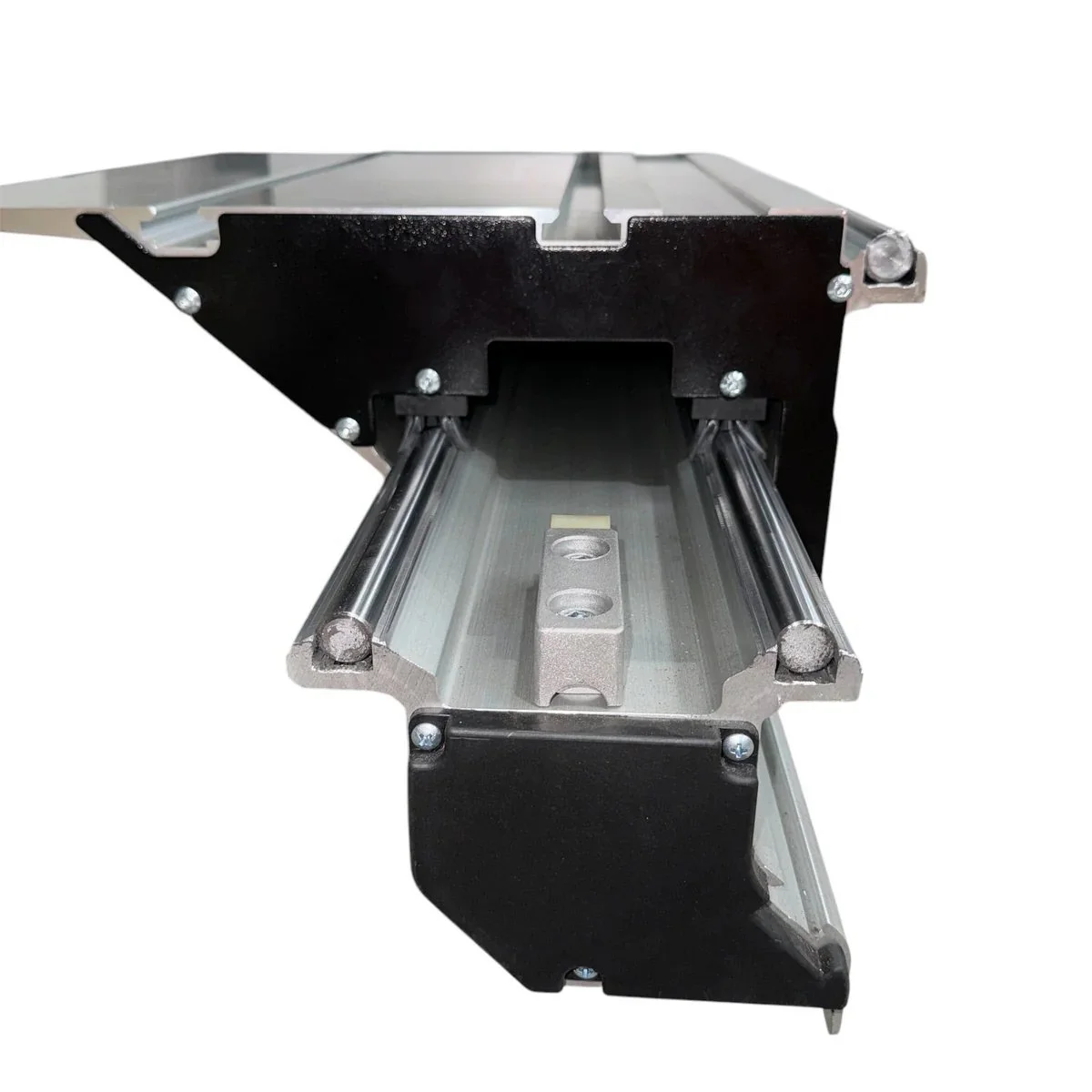

Precision Sliding Table: Moves effortlessly along tempered, ground prismatic guides for accurate panel handling.
Three-Speed Blade Control: Easily switch between cutting speeds for different materials with a quick tension release mechanism.
SPECIFICATIONS
Model PS400C
Main Motor Power: 7.5HP (415V)
Main Blade Speed: 3000 RPM/4000 RPM/5000 RPM
Scoring Motor Power: 1HP
Scoring Blade Speed: 8000 RPM
Blade Tilt: 0-45°
Major Table Size: 1020mm (690+720mm)
Sliding Table Size: 3200 x 418mm
Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
