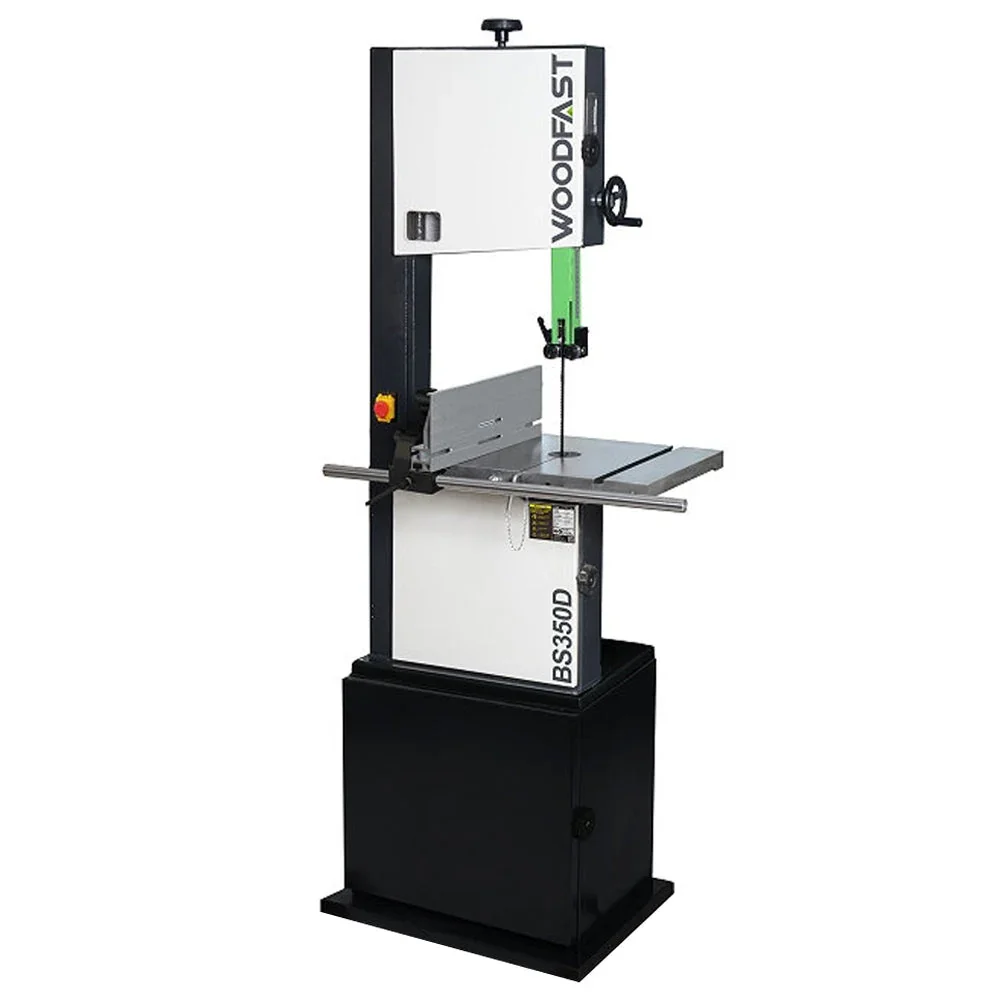

The BS350D bandsaw features several unique innovations that promise enhanced accuracy and ease of use. It is more effective, accurate and easier to use than any other machine in its own class. Featuring a 2HP motor coupled with well balanced band wheels it will easily handle anything thrown at it.
The two speeds which are slightly faster than comparable machines make it ideal for non-ferrous metals as well as wood. The 150mm tall fence that can be easily rotated flat for thinner stock, along with the double-sided fence mount make this machine easy to setup leaving you free to concentrate on the project at hand.
ADVANTAGES

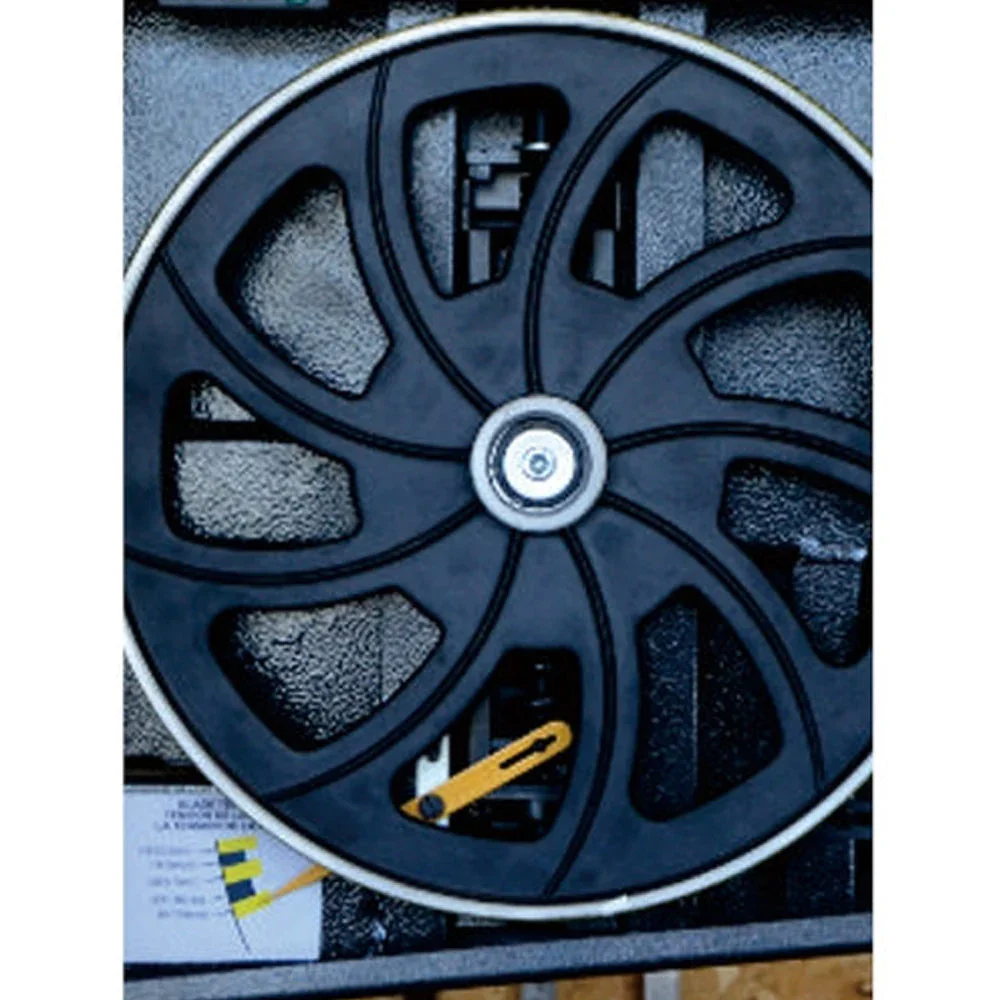

Dynamically balanced and heavy cast band wheels provide a flywheel effect during use contributing to the power and effectiveness of the machine.

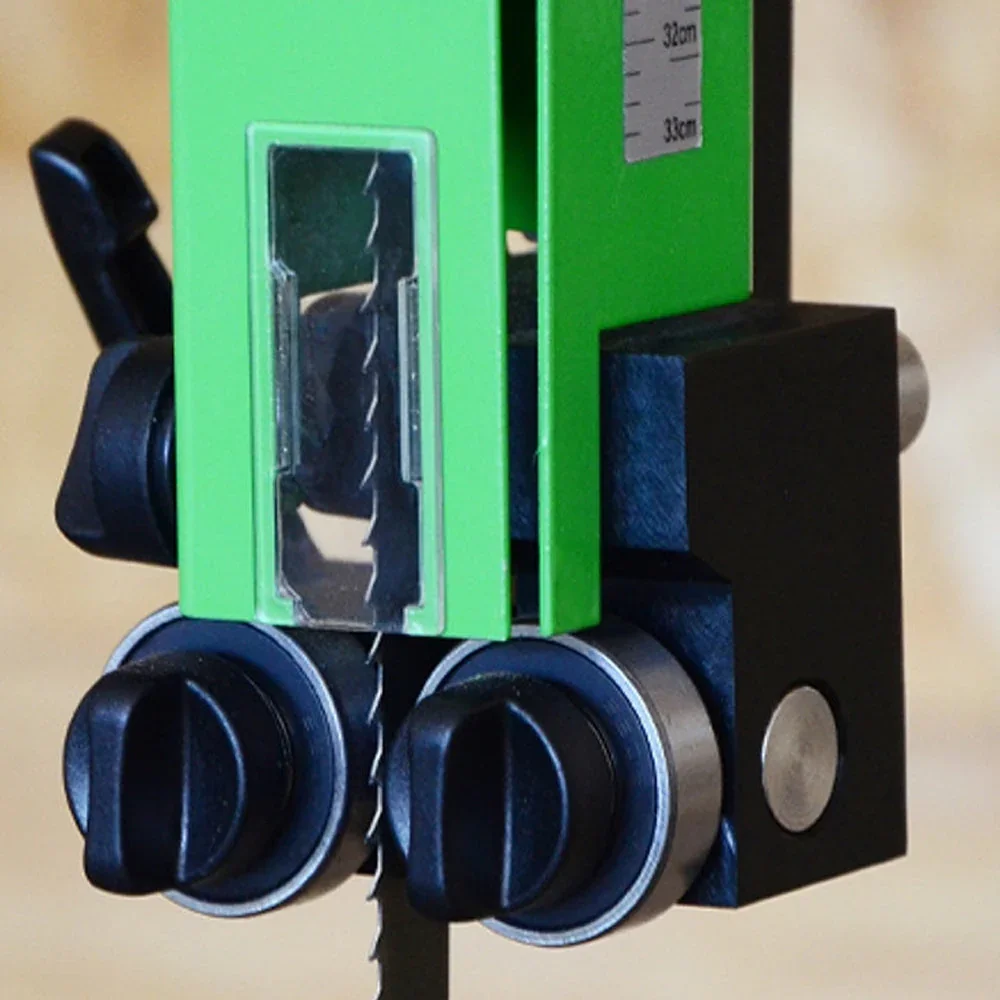

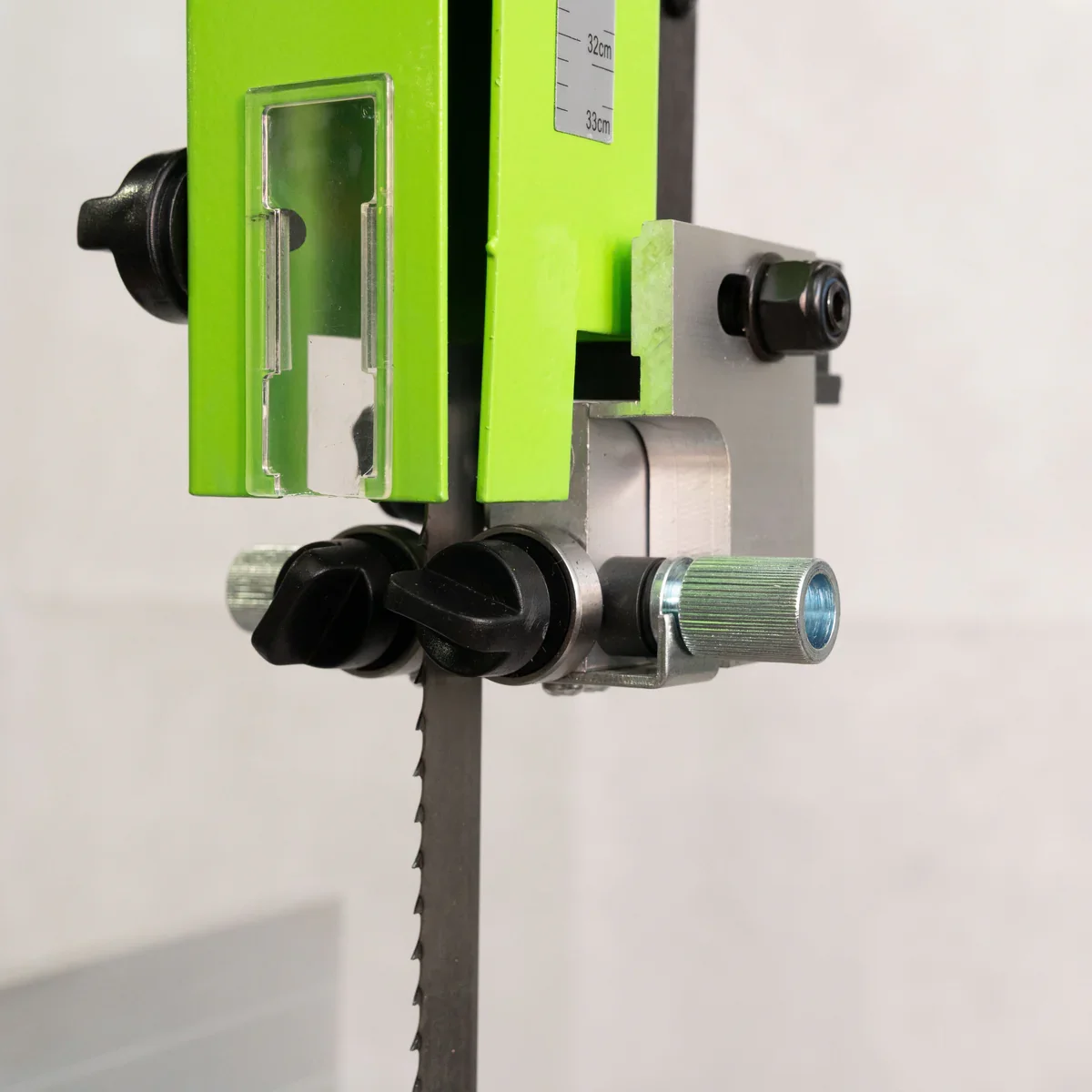

Spring Loaded Tool-less Blade Guide System can be easily adjusted quickly and without tools. The guides are spring loaded, with the spring pushing the guide away from the blade when its not locked in place.
The unique fence mount design allows he fence to be placed to the right hand side of the blade with the fence extrusion secured on the opposite side of the mount.

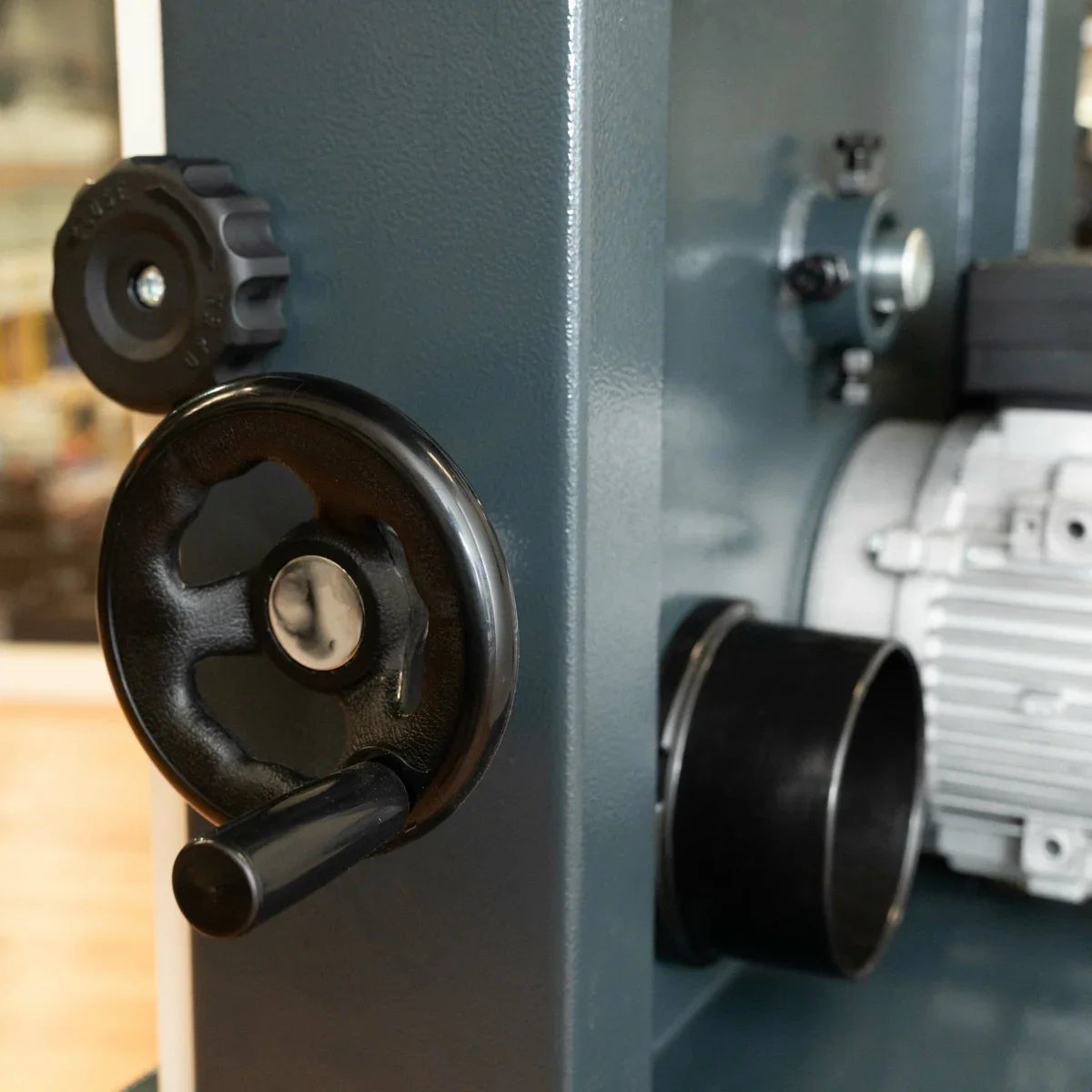

Release and re-apply blade tension instantly using the cam-action handle. This makes changing blade simple and fast and if the new blade is the same as the old, the correct tension can be instantly re-applied on fitting.
Metal storage cabinet base.
Easy Drift Fence Alignment Functionality
STANDARD INCLUSIONS

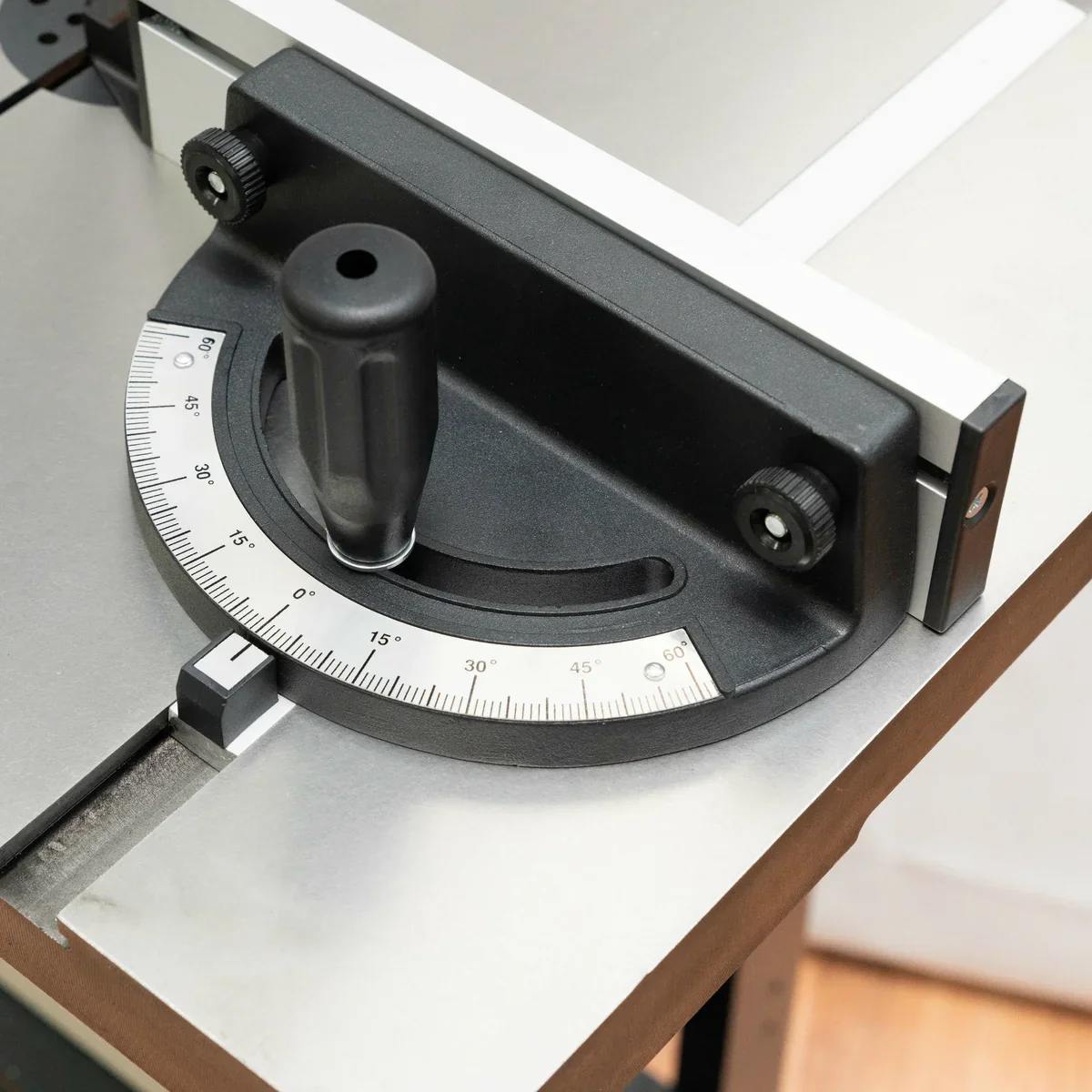

Mitre Gauge Included
Push Stick Included
Drift Bar
Tilting Table
150mm (6") Rip Fence Assembly
SPECIFICATIONS
SKU 1041085
Part Number BS350D-N
Size 350mm (14")
Power Source 230-240V 50Hz (Single Phase)
Motor Power (Output) 2HP (1.5kW)
Bandwheel Cast Iron
Blade Type. Continuous
Blade Length 2820mm
Blade Width 6-19mm
Cutting Capacity - Height 330mm
Throat Capacity 345mm
Table Size 545 x 400mm
Speed Range 440m/min., 900m/min
Product Length 840mm
Product Width 620mm
Product Height 1770mm
Dust Hose Inlet Diameter 100mm
Product Weight (Net Weight) 129kg
Manufactured in China
Shipping Length 1400mm
Shipping Width 460mm
Shipping Height 620mm
Shipping Weight (Gross) 137kg
