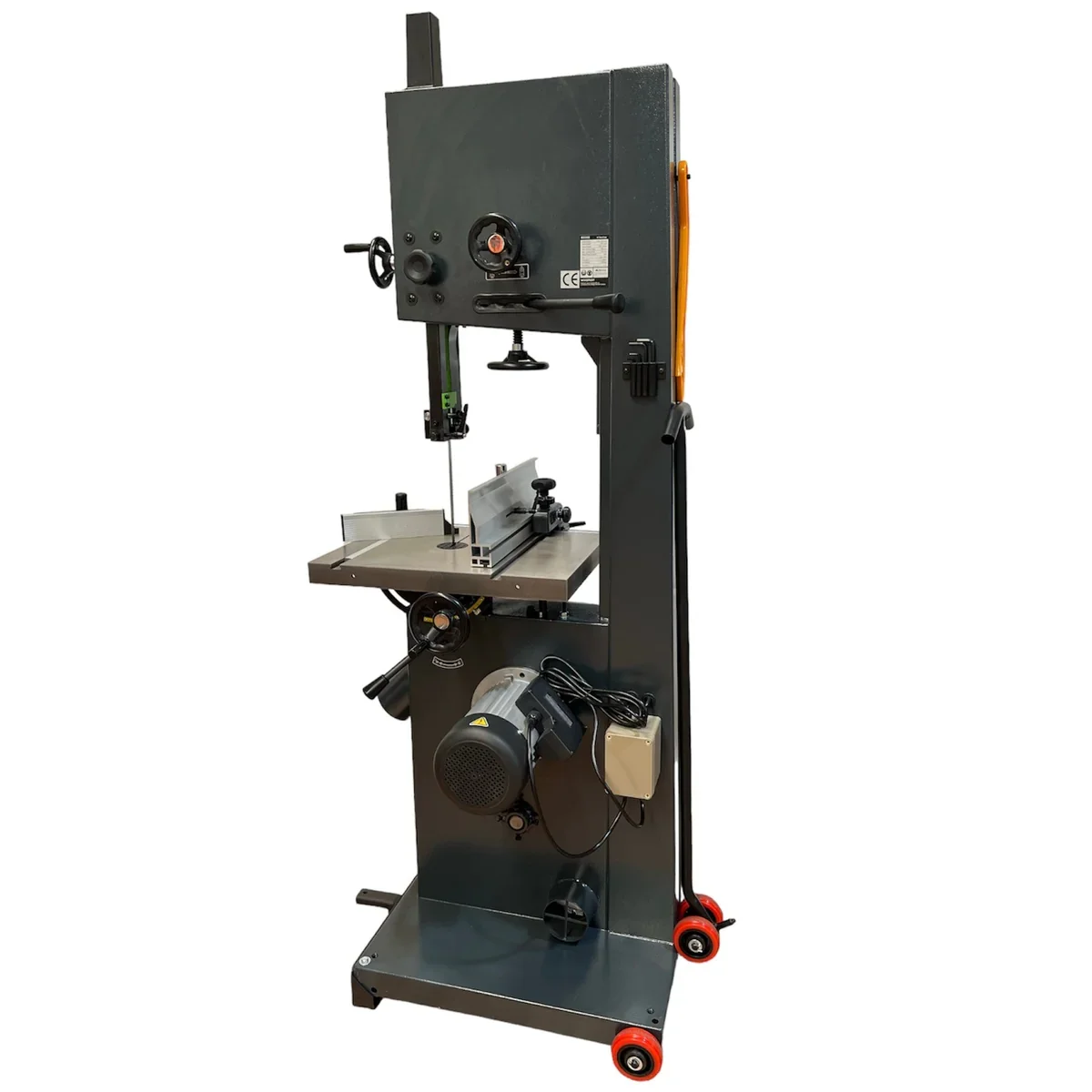

The BS350E bandsaw features an impressive 3HP motor and the largest cutting capacity in this model range, which makes this saw ideal for use in re-sawing lumber, as well as handling normal shop work. Designed with extra user-friendly and safety features – Patent Pending tool-less blade guide system, quick-adjust fence system and quick-lock trunnion system for fast table angle setting, plus, a keyed power switch (great for unauthorized use & security), door activated emergency stop micro switch, conveniently located blade tension release lever with the tensioning wheel under the top frame, large work table with two mitre gauge ‘T’ slots, hinged blade guard, and clear sight windows for easier viewing when adjusting the blades. Includes 150mm (6”) rip fence with re-saw bar.
ADVANTAGES
Cast Iron Wheels – Factory Balanced
Emergency Stop Micro Switches – Fitted to Door + Blade
Spring Loaded Tool-less Lower Blade Guides – Easily Accessible, Easy & Fast setting of the guides without wrenches!
Extra Tall Rip Fence – With Re-saw Bar, Increased fence and re-saw bar heights of 150mm (6”) give added support of lumber being ripped or re-sawn
Quick-Adjust Rip Fence Mount – Hi-Lo Solid Cast, adjusts for drift with the simple turning of a few knobs! No tools needed
Quick-Lock Trunnion System – Hi-Lo Solid Cast, handy lever and gear unlock, and set table angles in seconds!
Rack Adjustment – Heavy Duty for Table Angle
Foot Brake + Motor Brake
STANDARD INCLUSIONS
Mitre Gauge Included
Push Stick Included
Tilting Table
Rip Fence Assembly
3607mm x 6 TPI Blade
Wrench
Manual
SPECIFICATIONS
SKU 8043030
Part Number BS350E
Barcode 735745530825
Size 350mm (14")
Power Source 230-240V 50Hz (Single Phase)
Motor Power (Output) 3HP (2.2kW)
Bandwheel Diameter 350mm
Blade Length 3607mm
Blade Width 6.35-25.4mm
Cutting Capacity - Height 356mm
Throat Capacity 346mm
Table Size 546mm x 400mm
Speed Range 1311m/min
Dust Hose Inlet Diameter 100mm
Manufactured in China
Shipping Length 770mm
Shipping Width 550mm
Shipping Height 1920mm
Shipping Weight (Gross) 190kg
