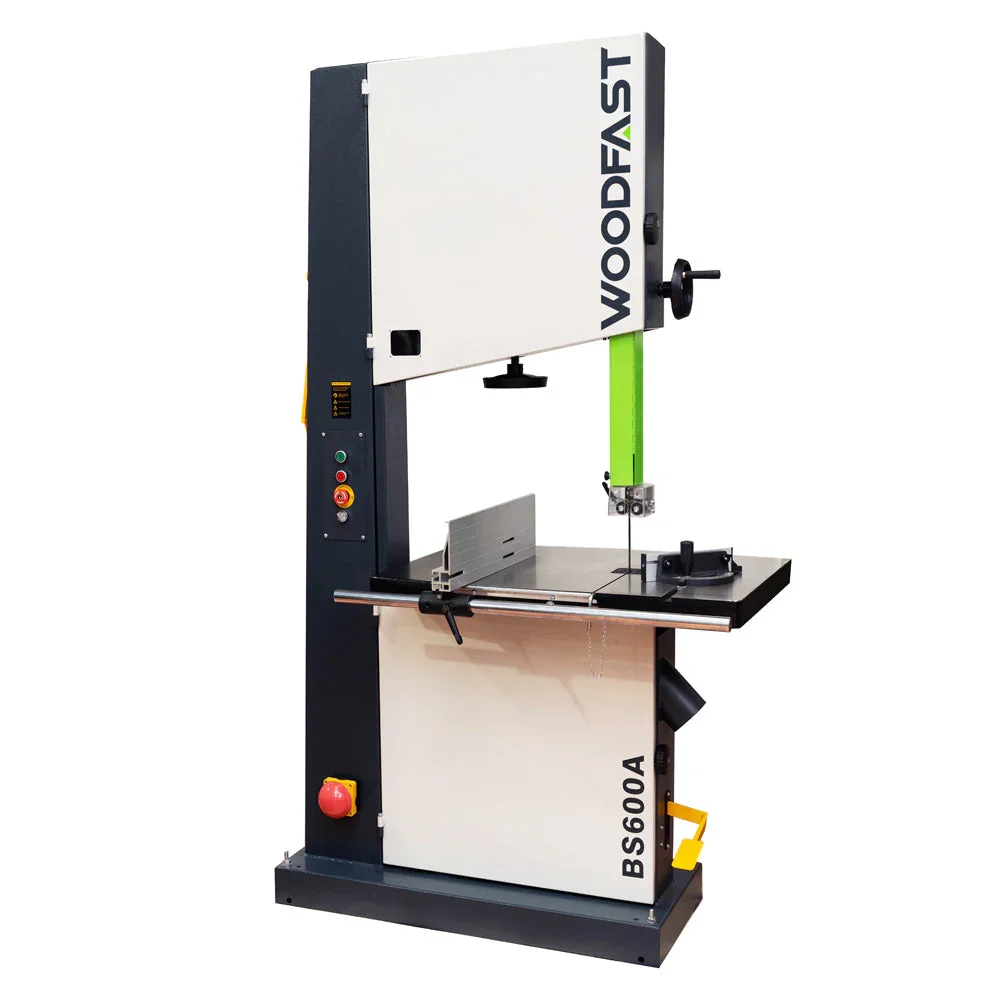

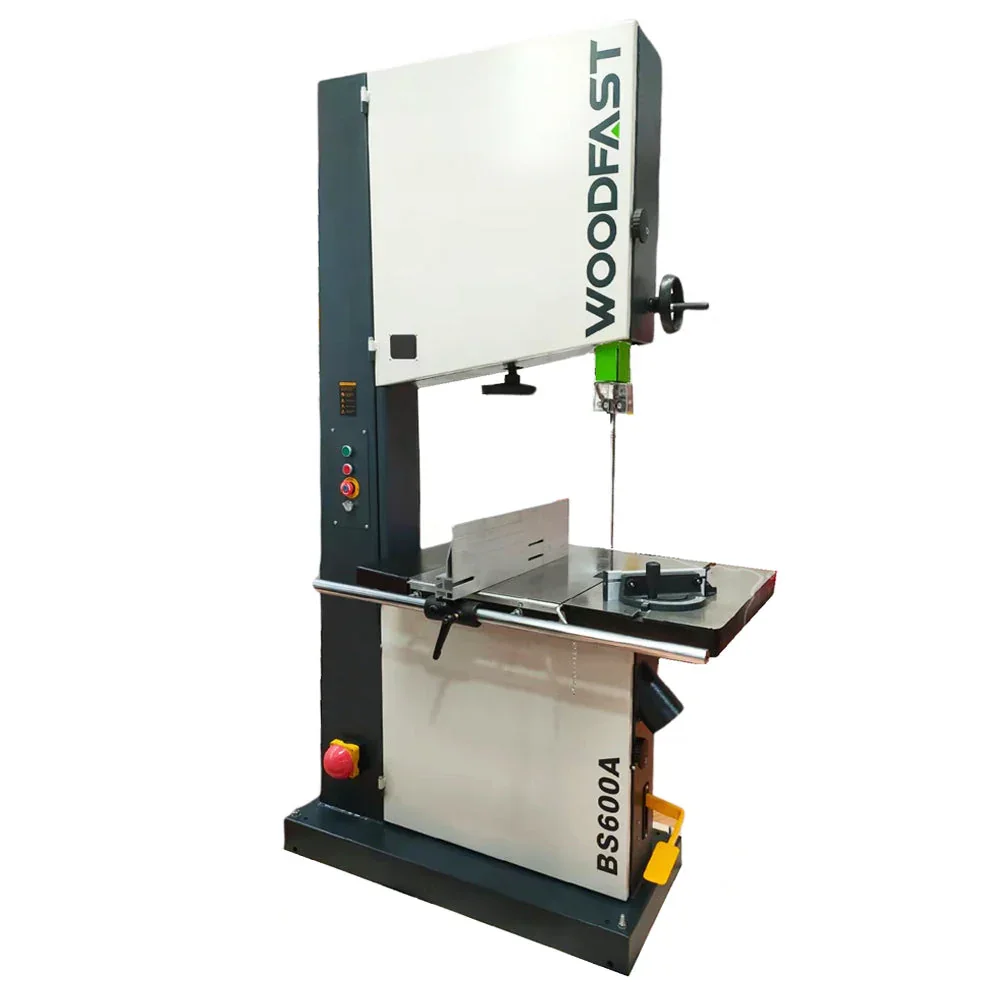

Woodfast BS600A Bandsaw - Precision and Power for Industrial Woodworking Applications. Suitable for Professional / Trade Use.
ADVANTAGES
Dual 200mm (4″) Dust Ports
Double Bearing Blade Guide System
Thickened Large Cast Iron Table with T Slot Design
Fully Enclosed thickened Steel Body
Quick Release Blade Tension
Hinged Blade Guard with Sight Window
Rack and Pinion Saw Blade Guide
Mechanical Motor Brake
STANDARD INCLUSIONS
Mitre Gauge Included
Push Stick Included
Rip Fence Assembly
SPECIFICATIONS
SKU 8601500
Part Number BS600A
Size 600mm (24")
Power Source 415V 50Hz Three Phase
Motor Power (Output) 5.5HP
Bandwheel Cast Iron Balanced
Bandwheel Diameter 600mm
Blade Type Continuous
Blade Length 4470mm
Blade Width 10-35mm

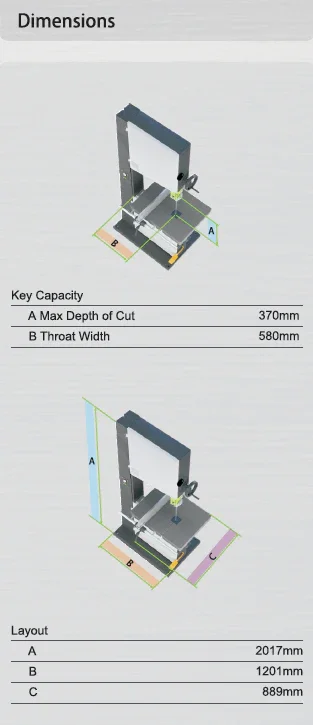

Cutting Capacity - Height 370mm
Blade (Main) - Speed 1500m / Min
Throat Capacity 580mm
Dust Hose Inlet Diameter 200mm
Product Length 1201mm
Product Width 889mm
Product Height 2040mm
Product Weight (Net Weight) 330kg
Table Size 700mm x 608mm
Product Weight (Net Weight) 220kg
Manufactured in China
Shipping Length 750mm
Shipping Width 950mm
Shipping Height 1900mm
Shipping Weight (Gross) 245kg
