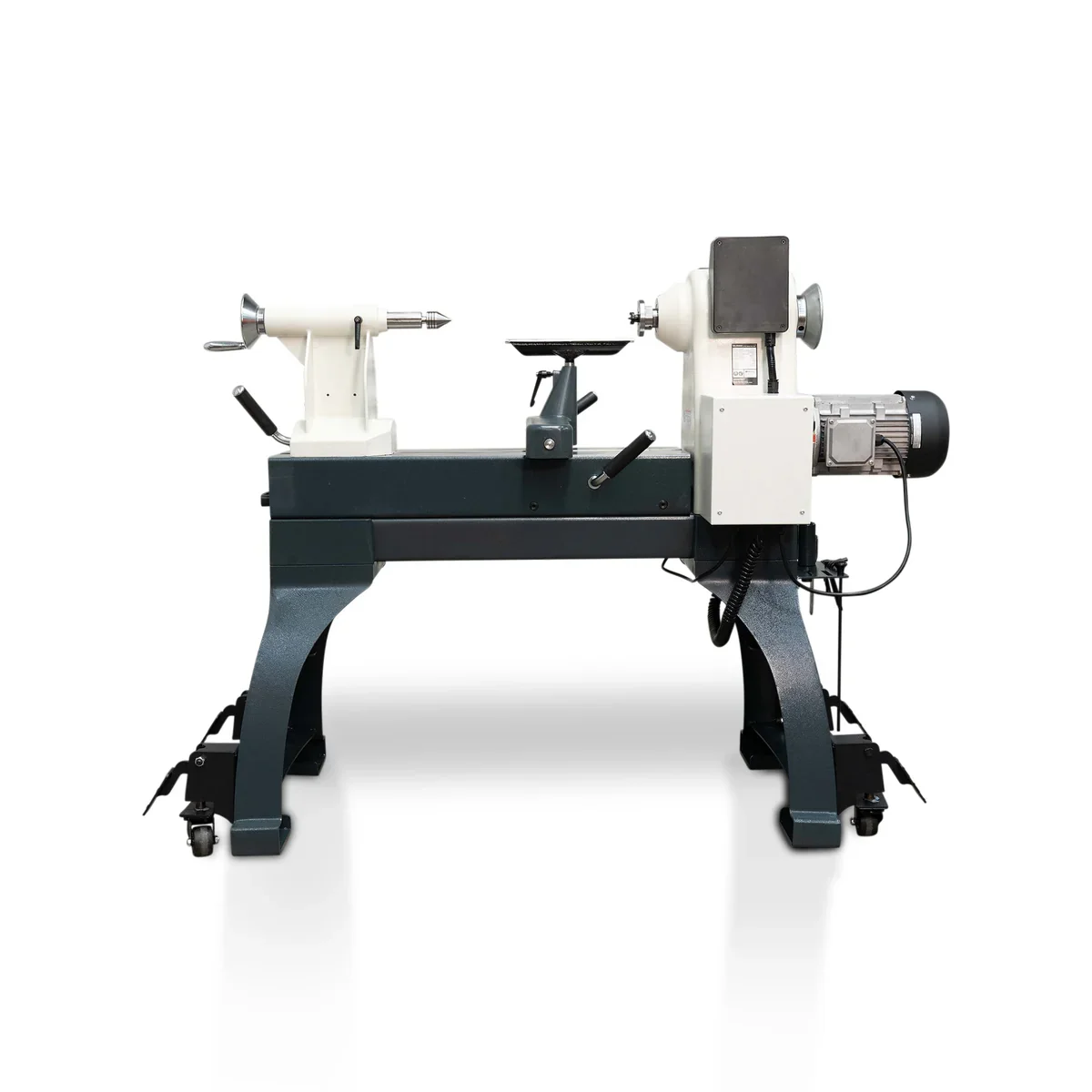

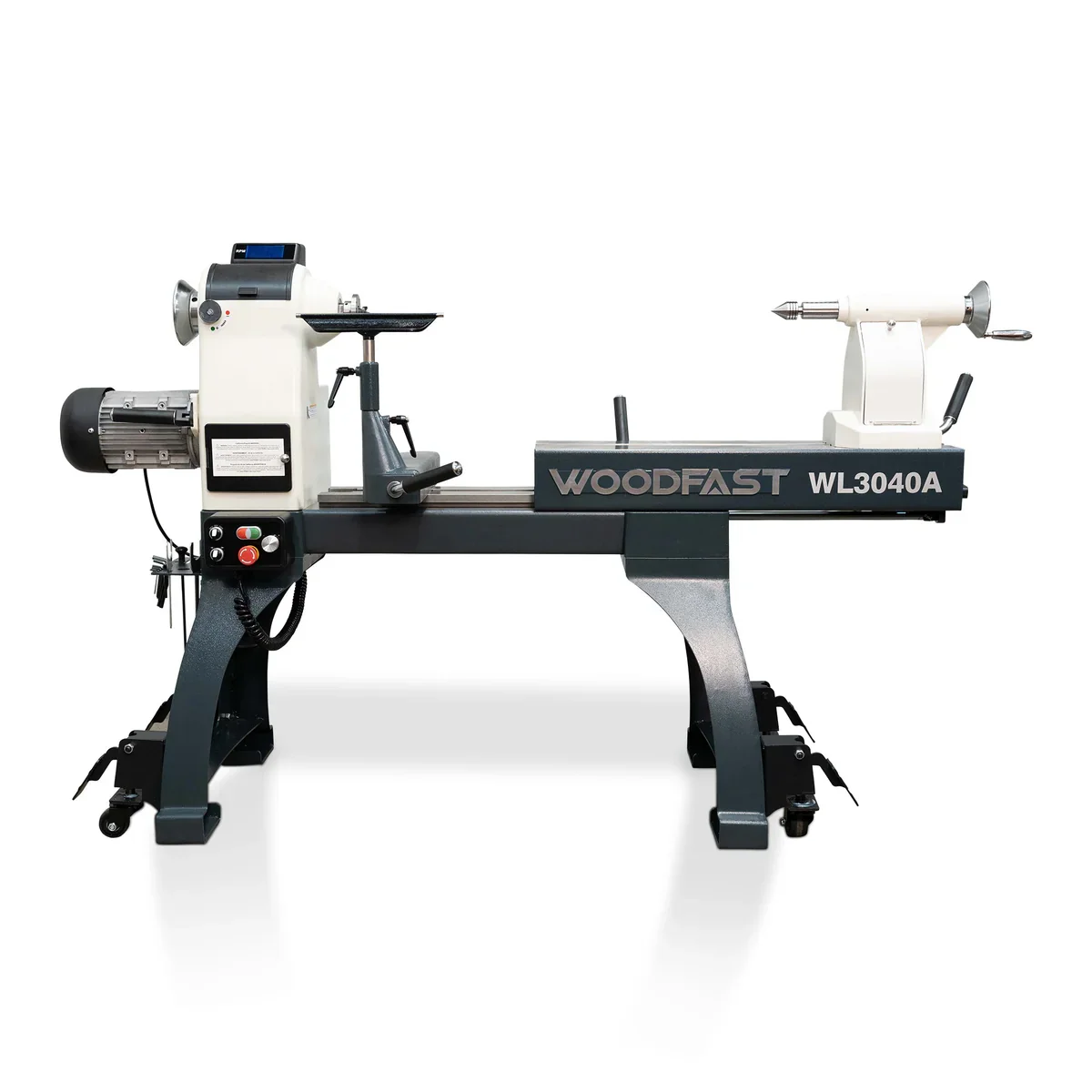

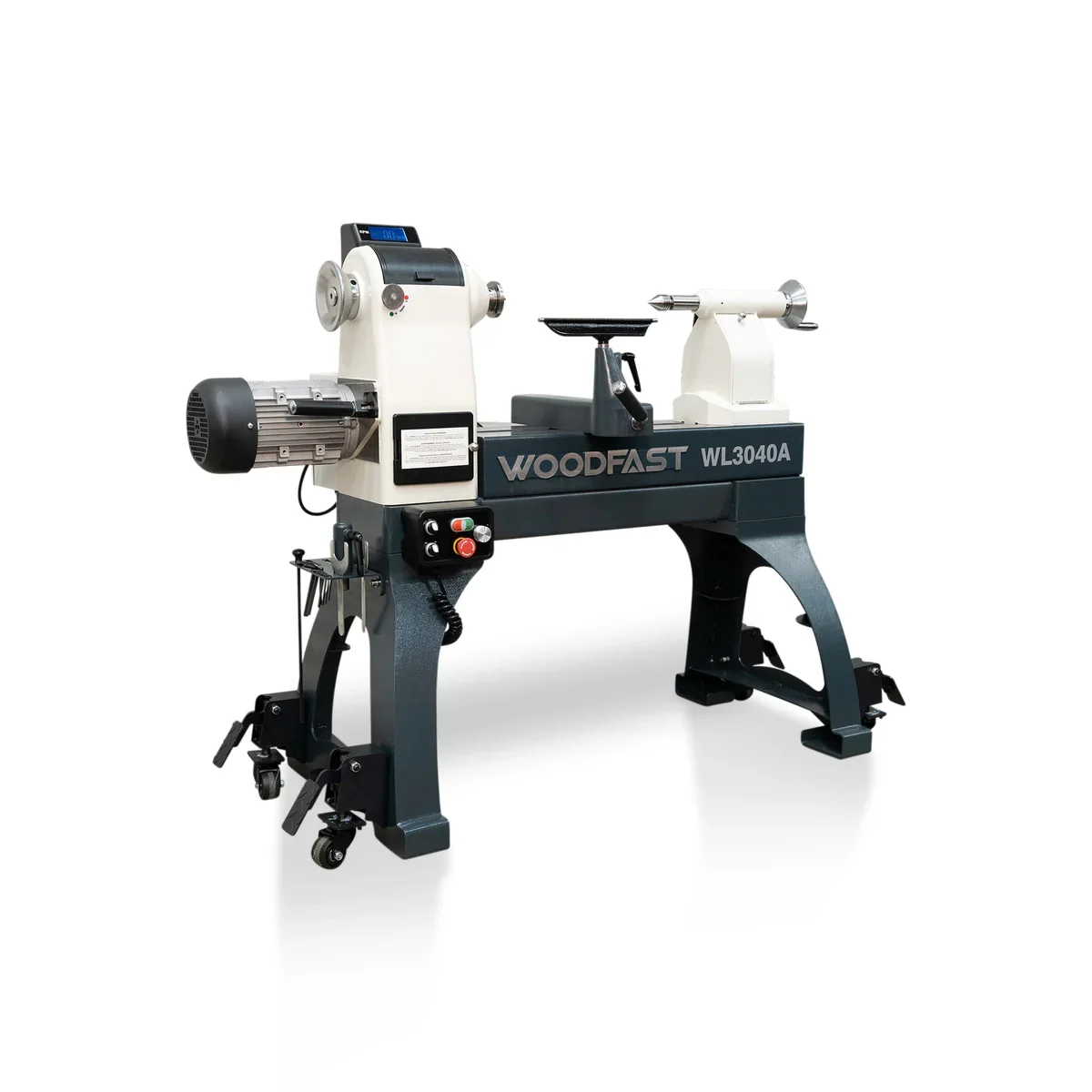

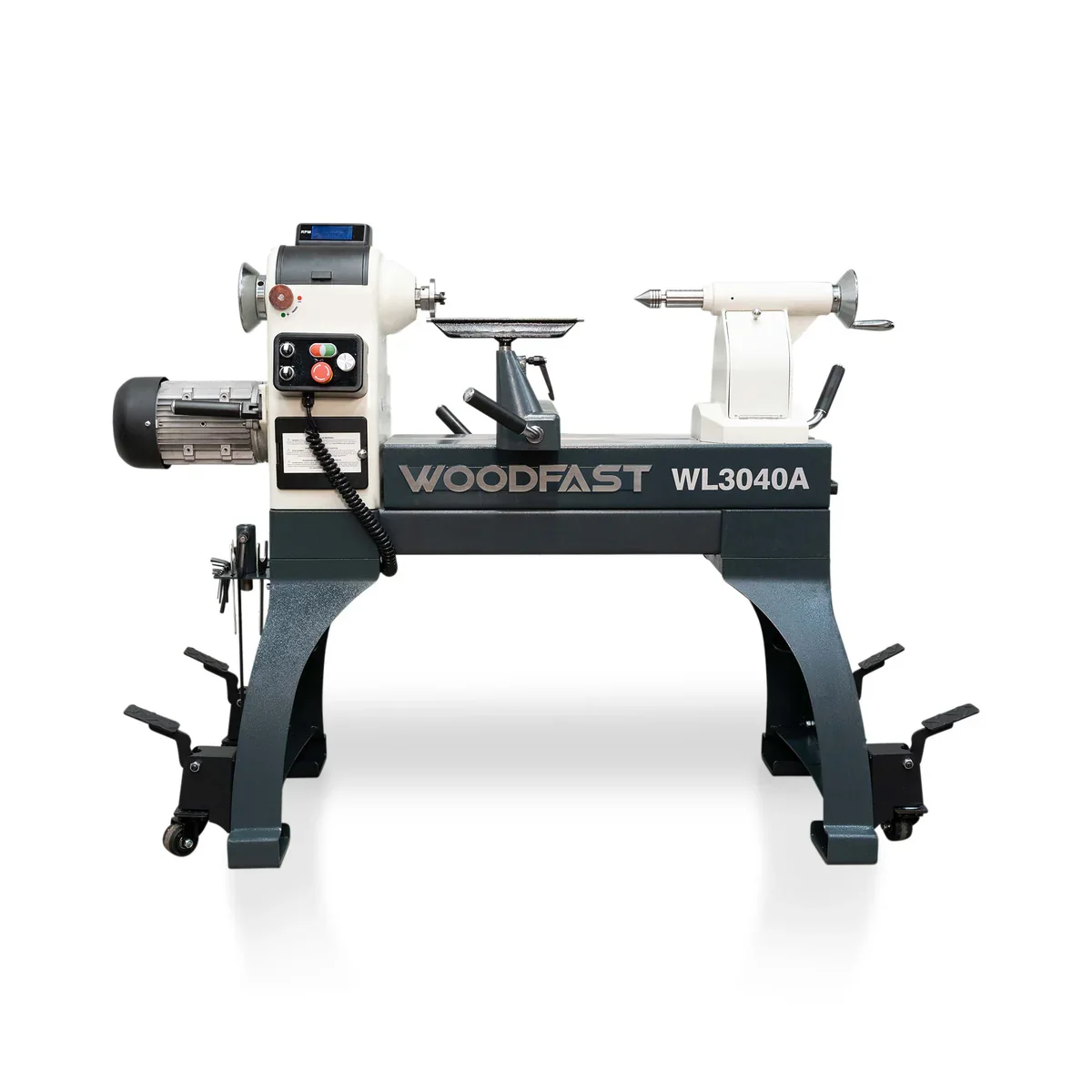

The WL3040A is the latest heavy lathe featuring a 3HP inverted motor and innovative electronic bed extension which allows the turner to safely turn that extra-large special piece very easily. This super heavy duty lathe with a massive 794mm swing and 1016mm between centres, can handle the toughest and heaviest jobs.

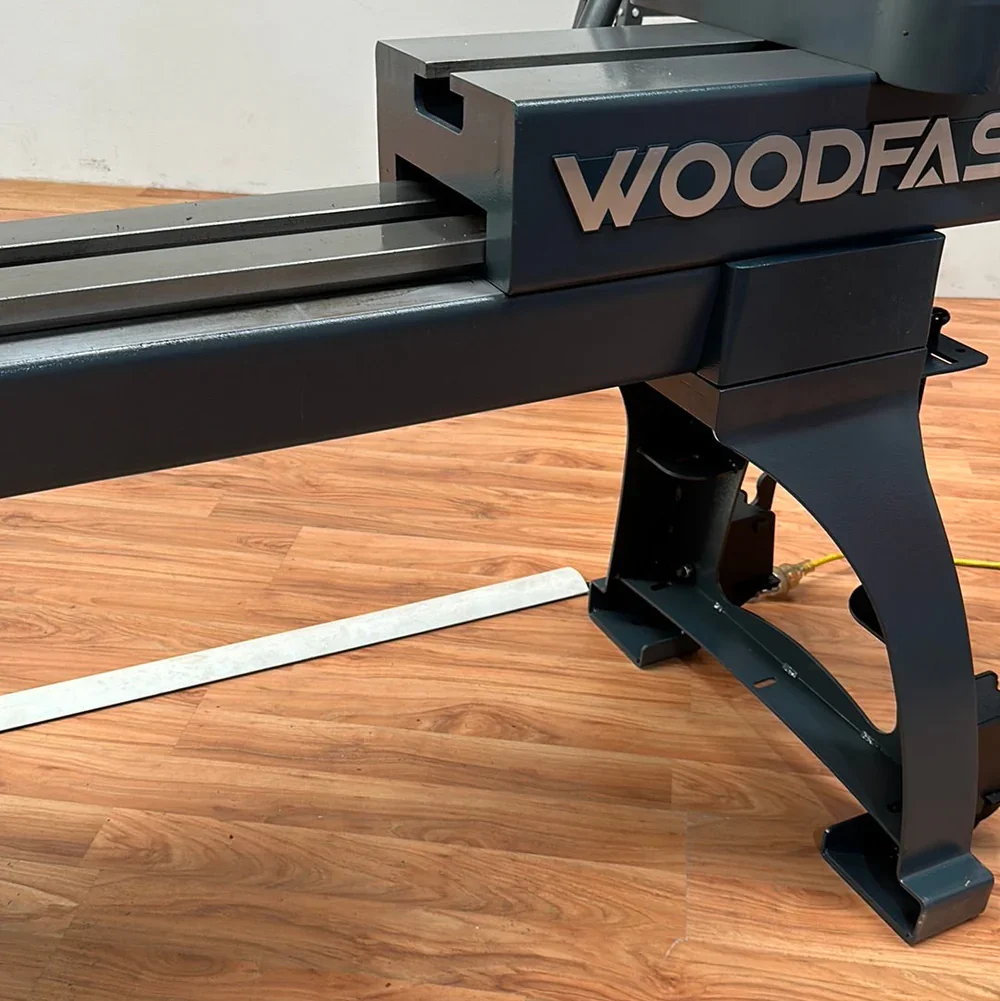

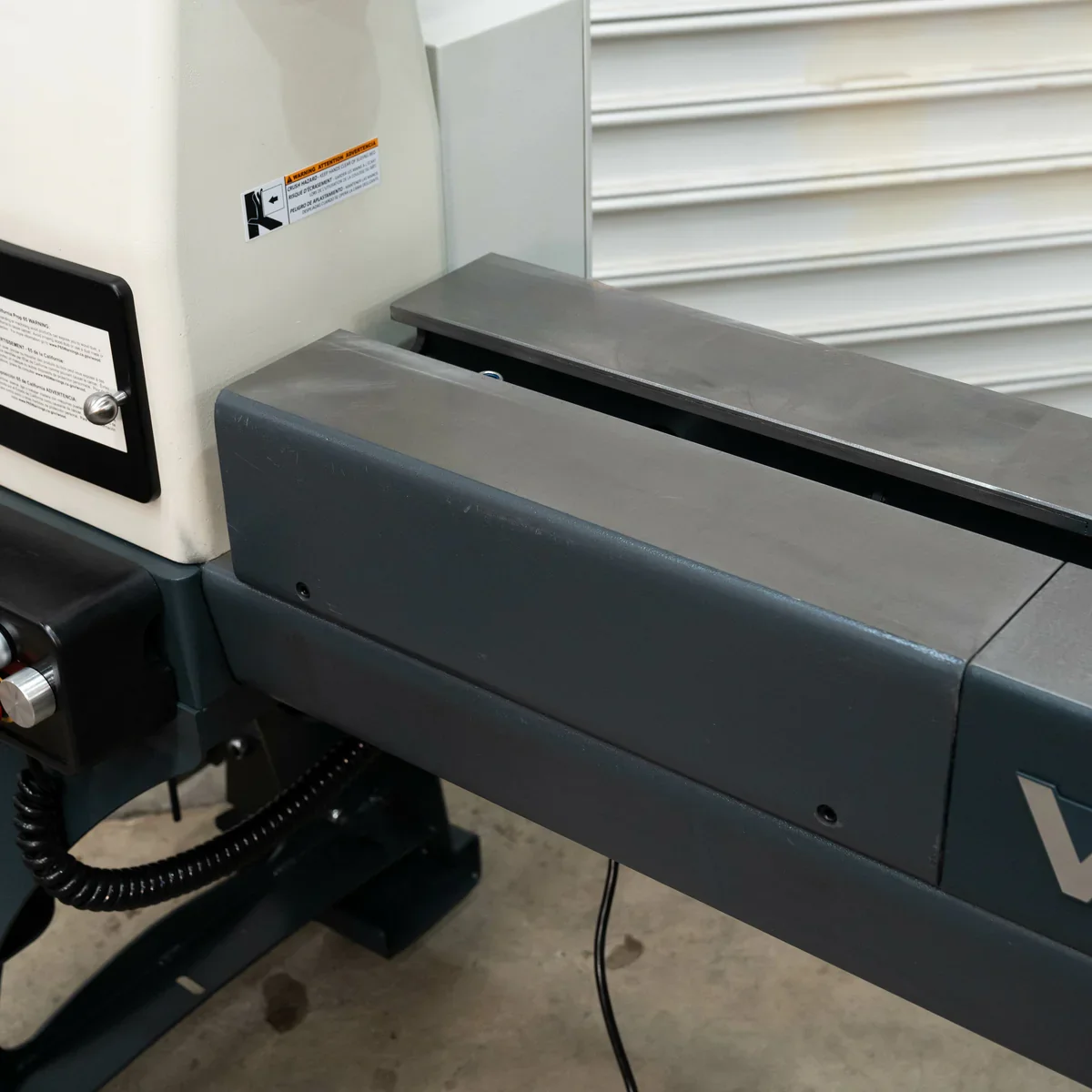

Cast iron components and heavy duty construction give this lathe extremely sure footing and minimal vibration. The electronic bed extension minimises the foot print of the lathe when not turning longer stock.


ADVANTAGES

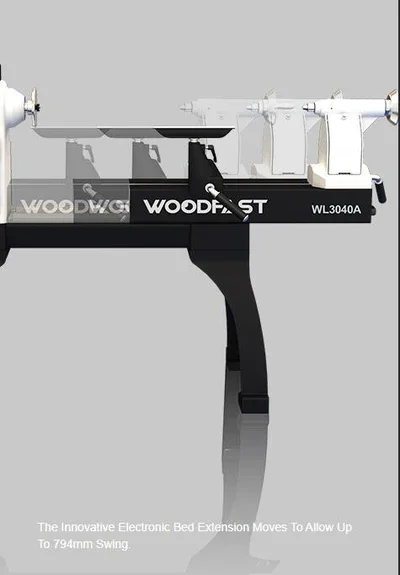

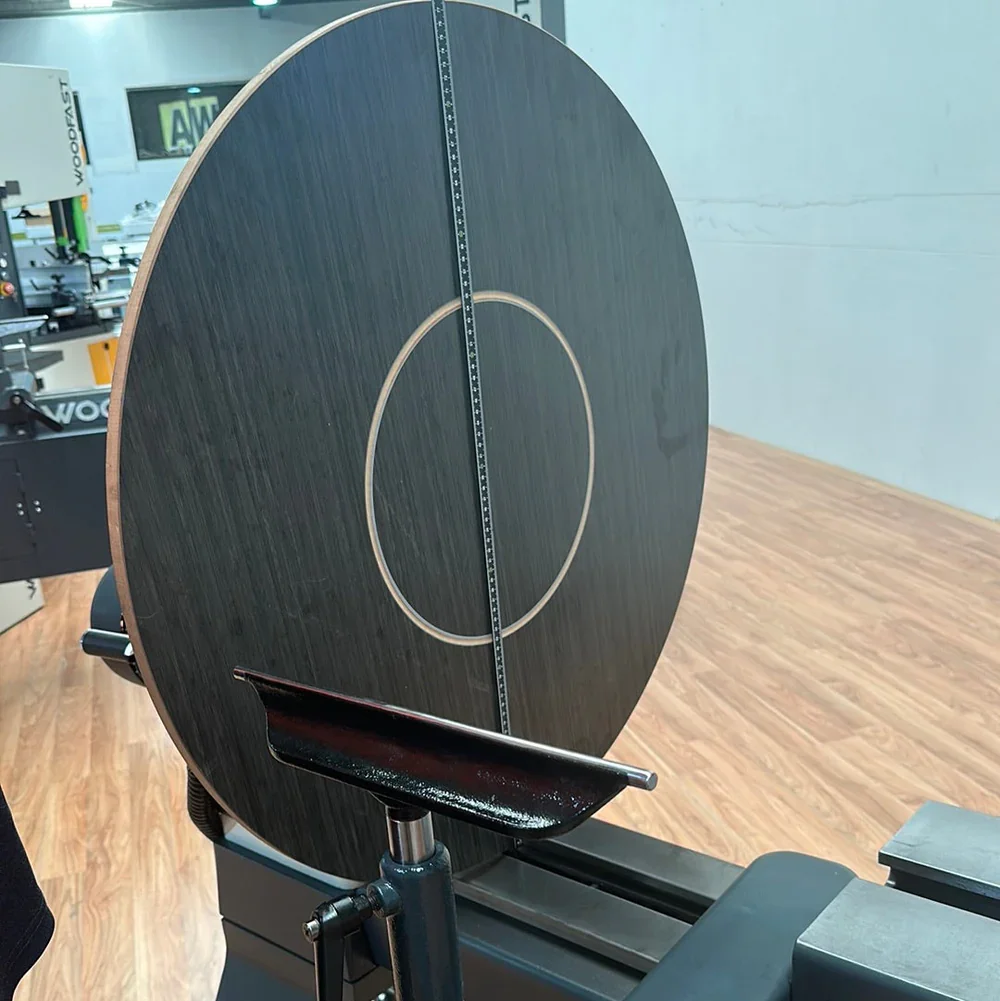

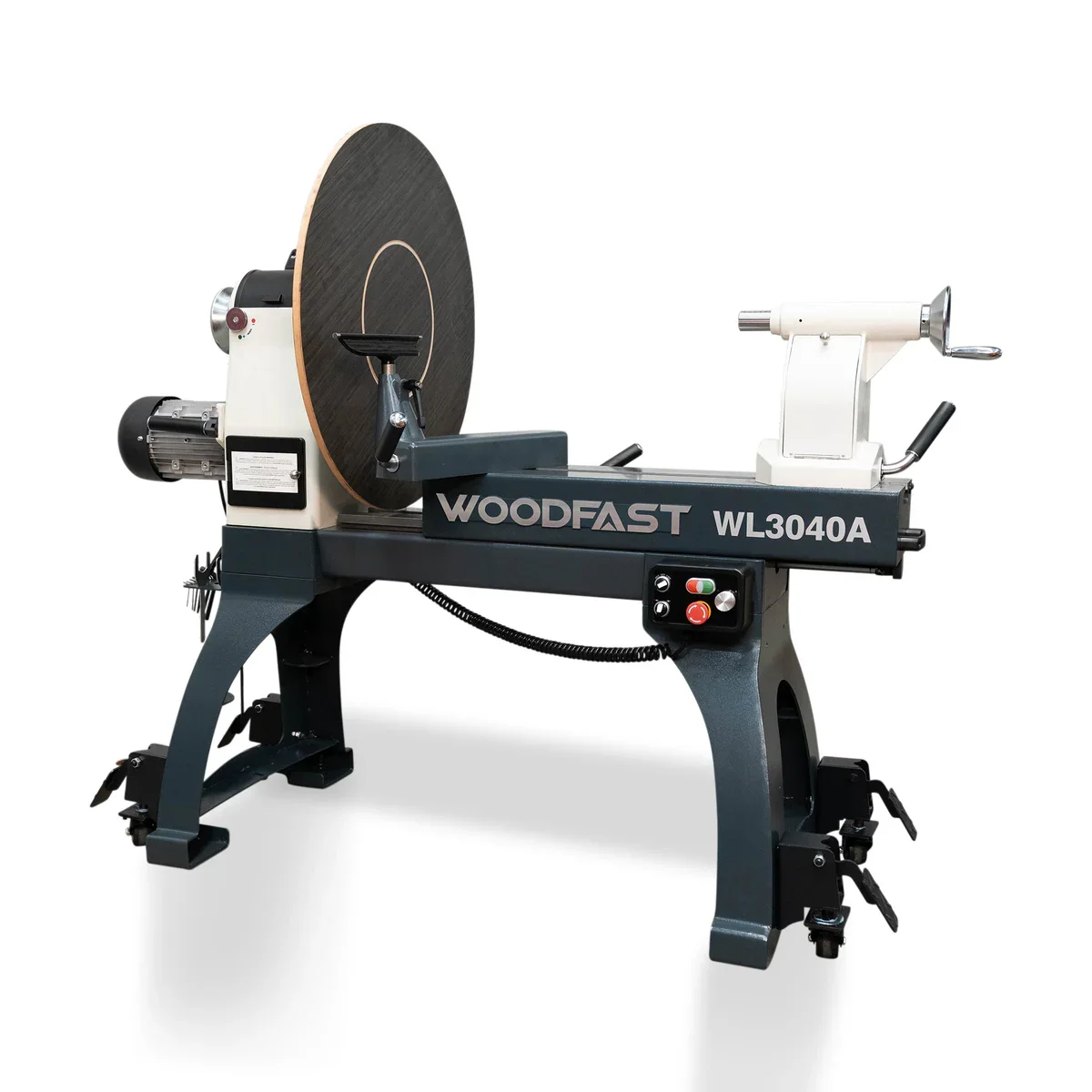

  • The innovative Electronic Bed Extension moves to allow up to 794mm swing.

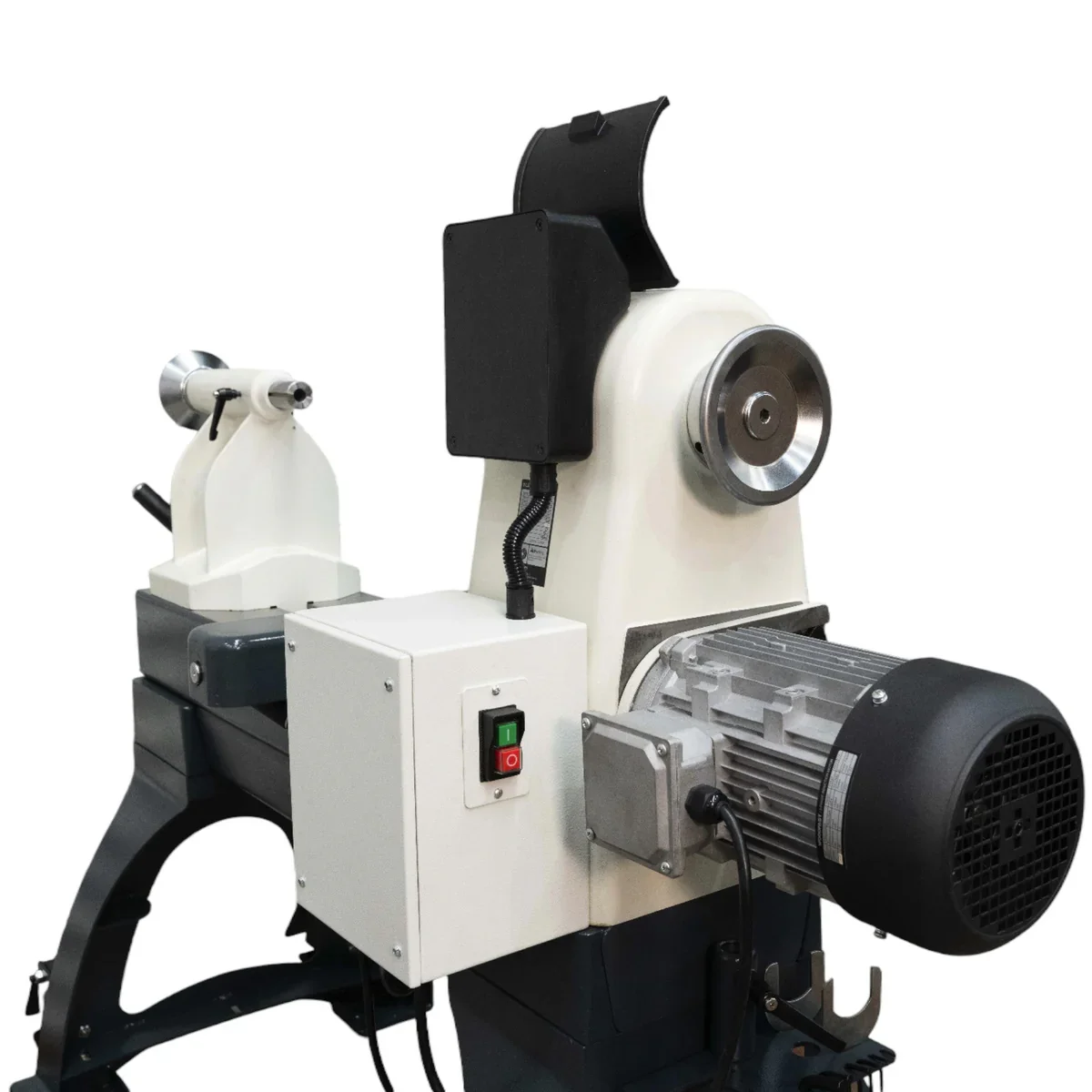

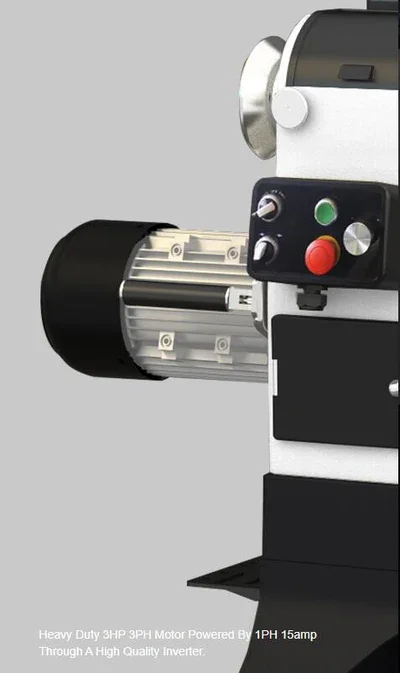

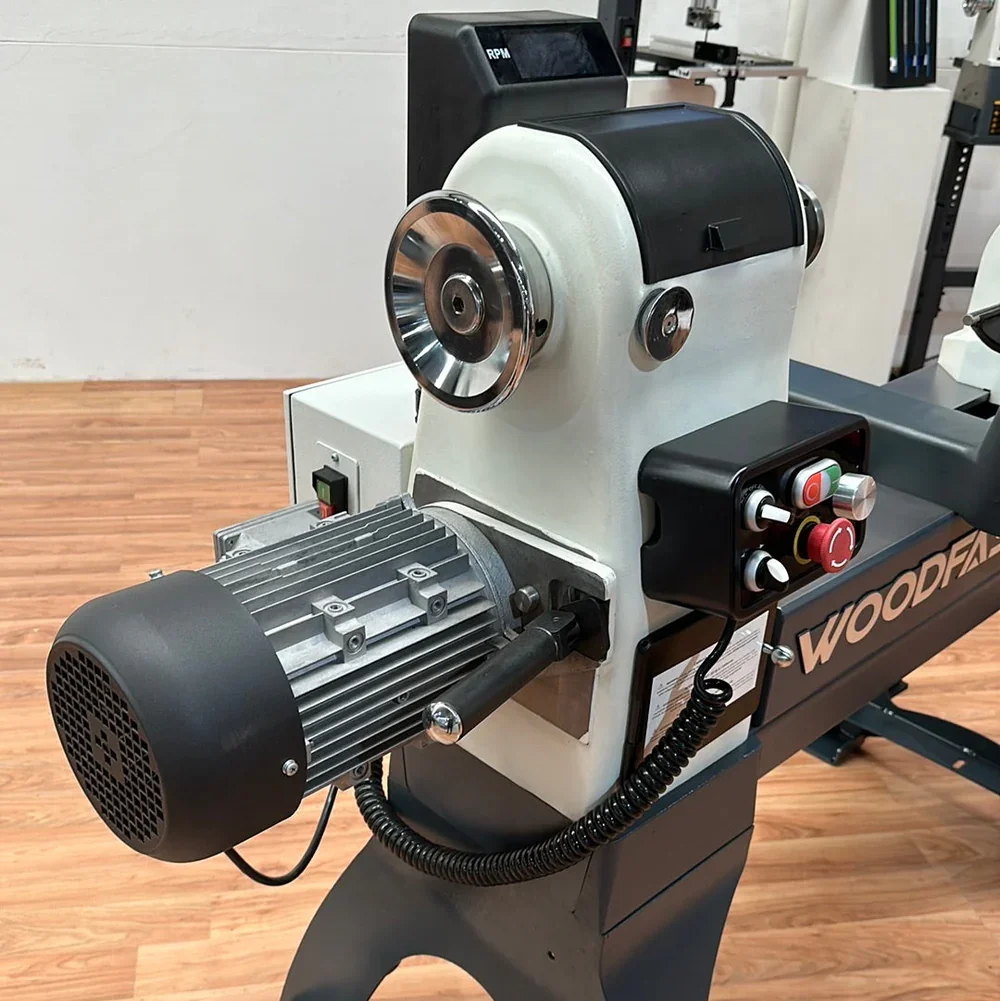

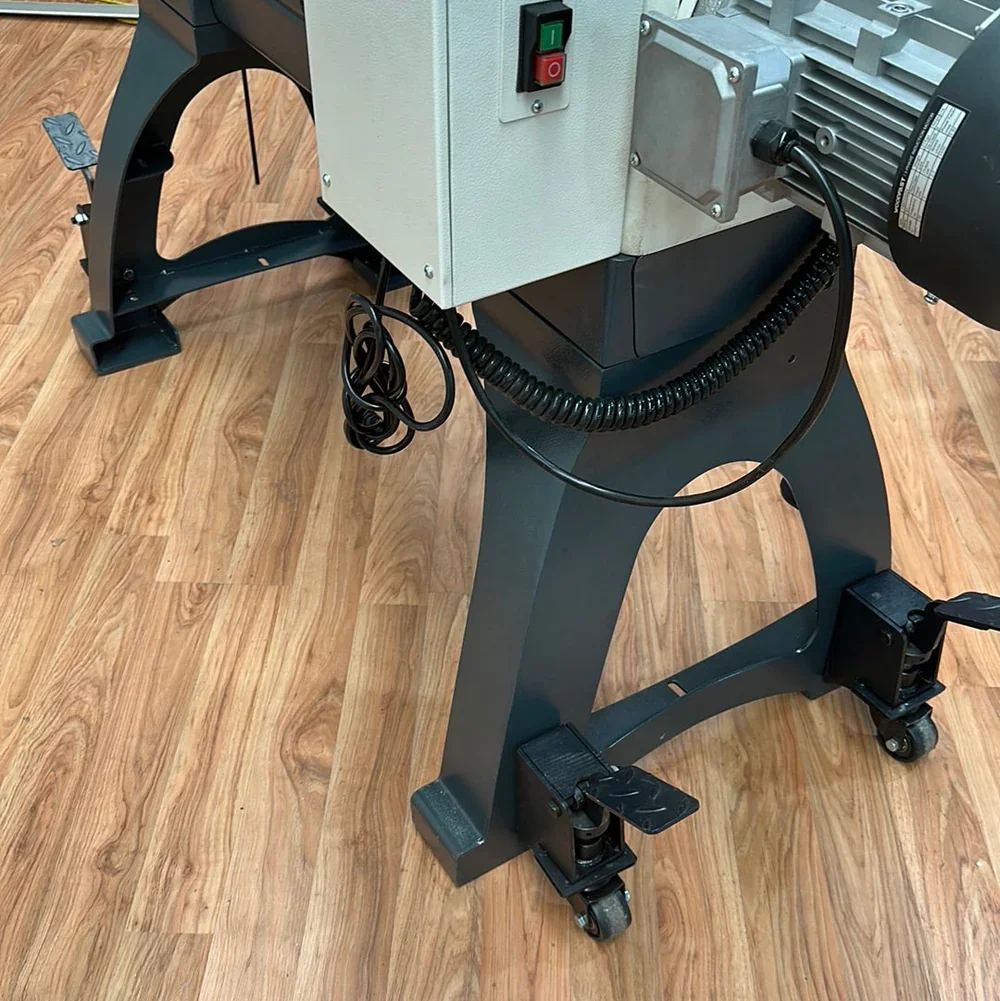

  • Heavy Duty 3HP 415V motor powered by 1PH 15amp through a high quality inverter.

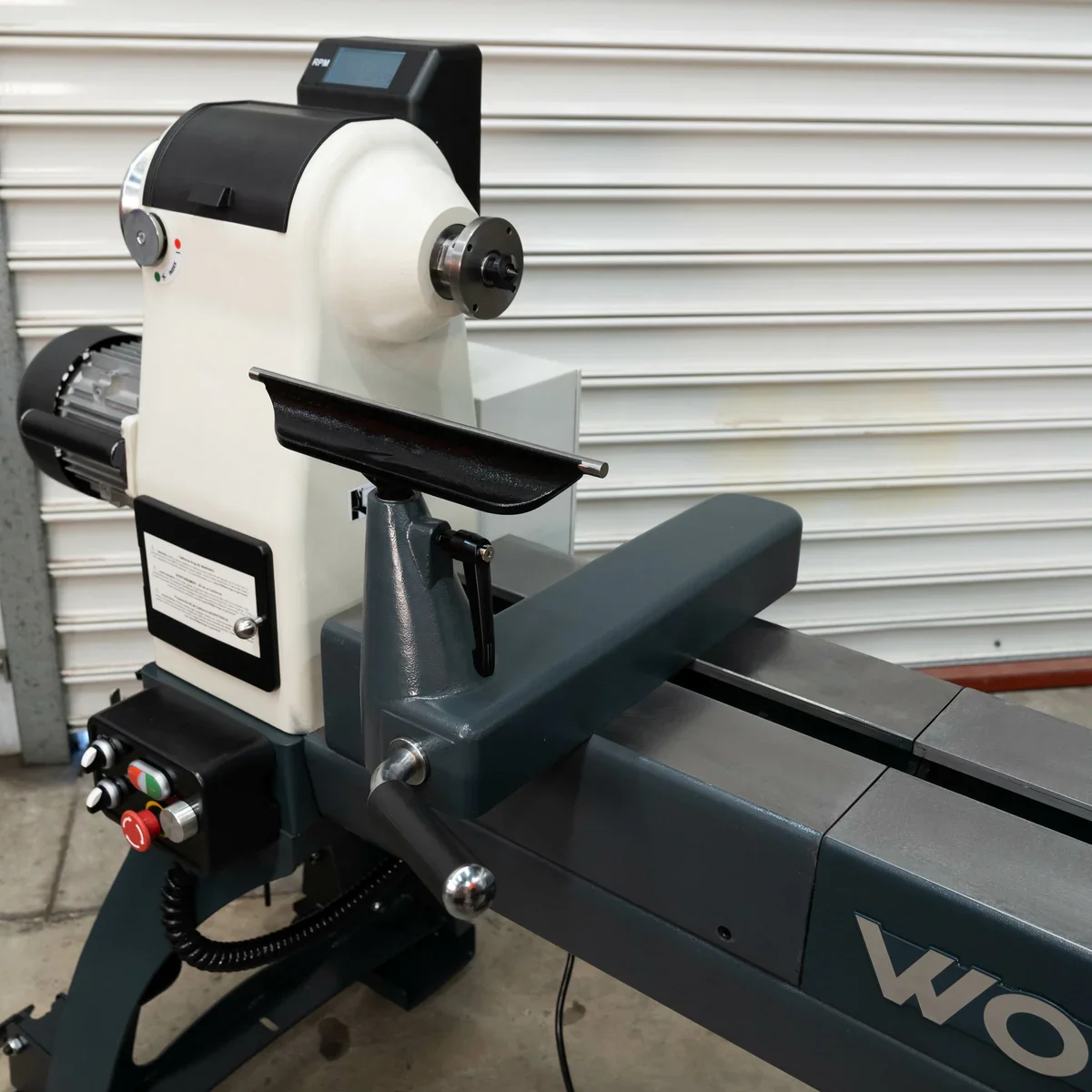

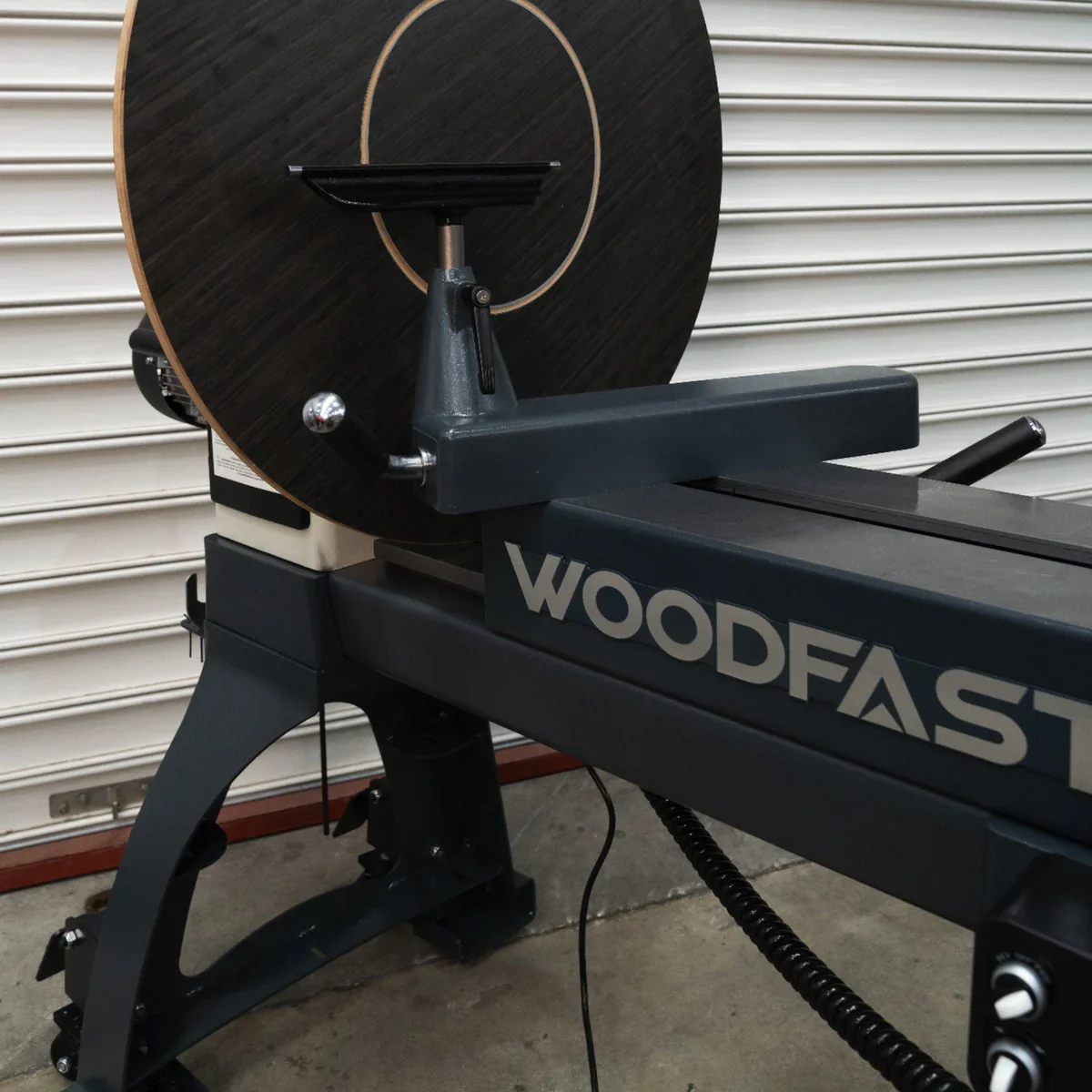

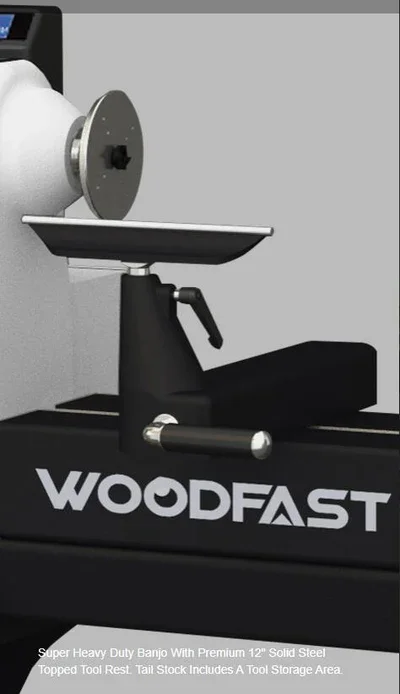

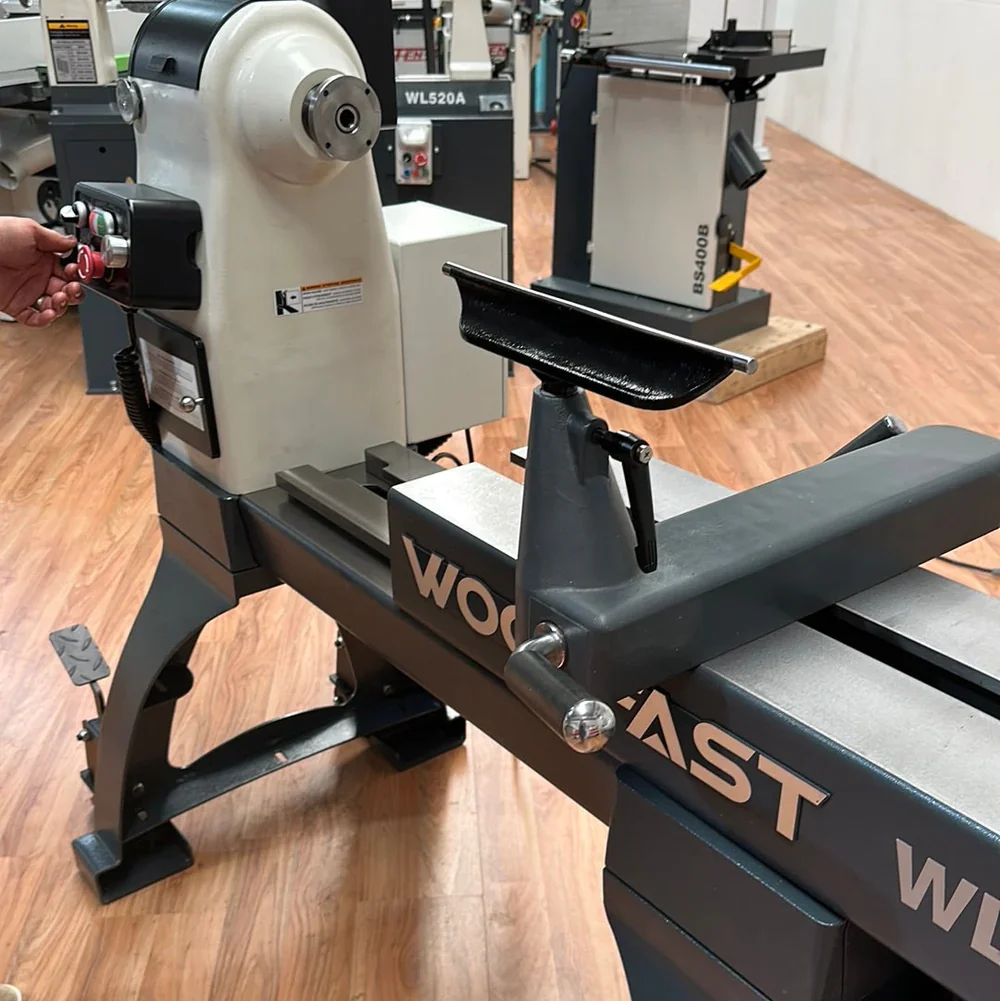

  • Super heavy duty banjo with premium 12" solid steel topped Tool Rest.

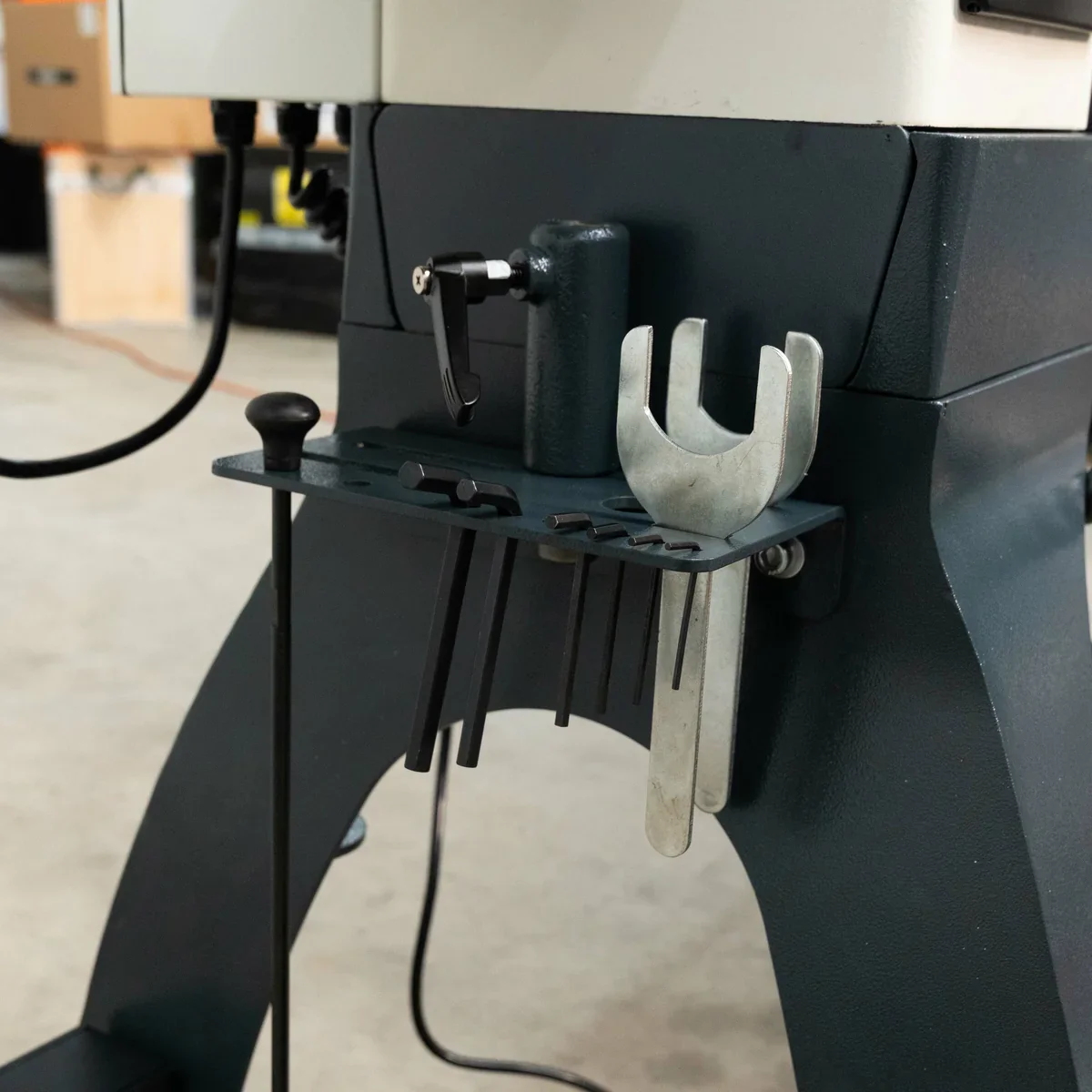

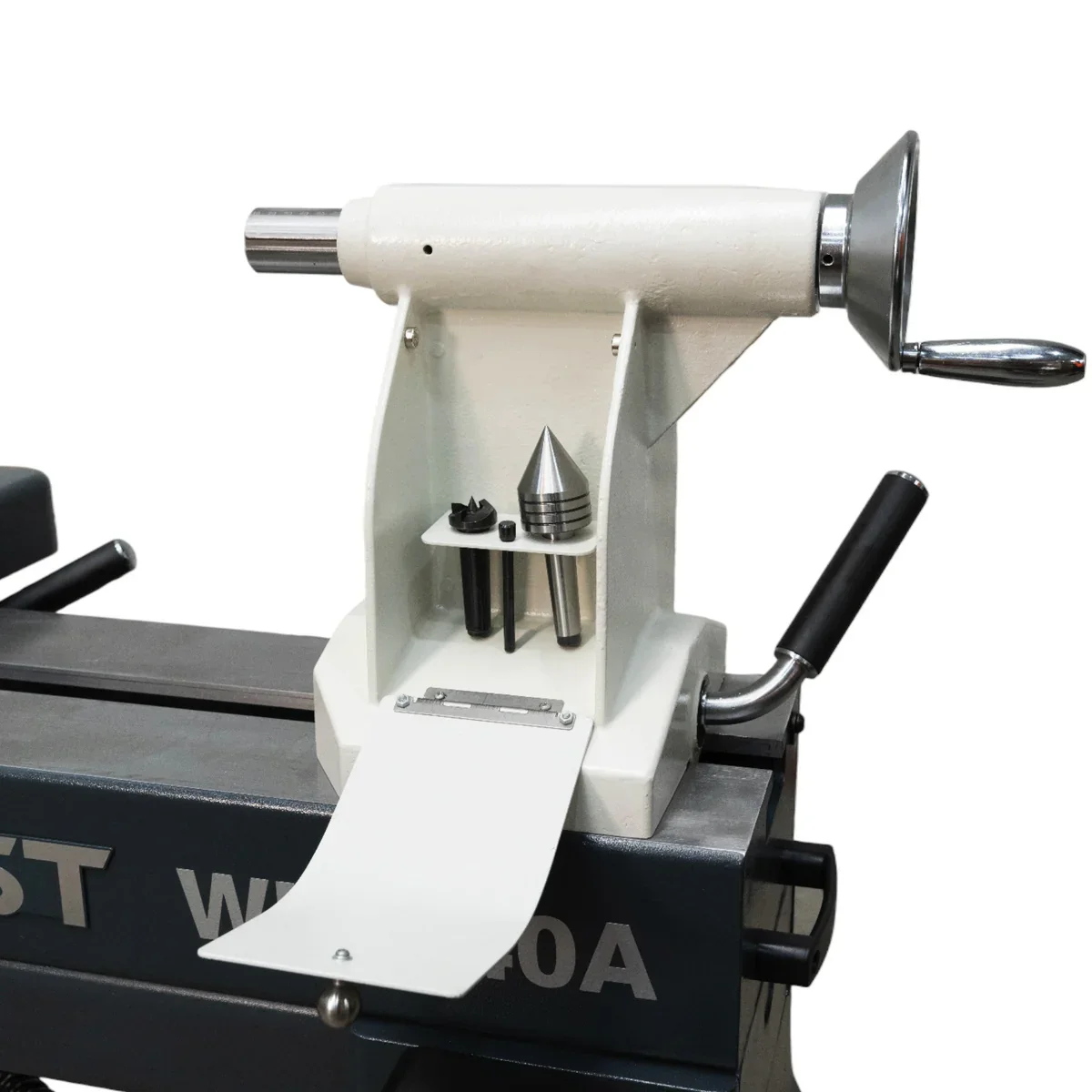

  • Tail Stock includes a tool storage area.

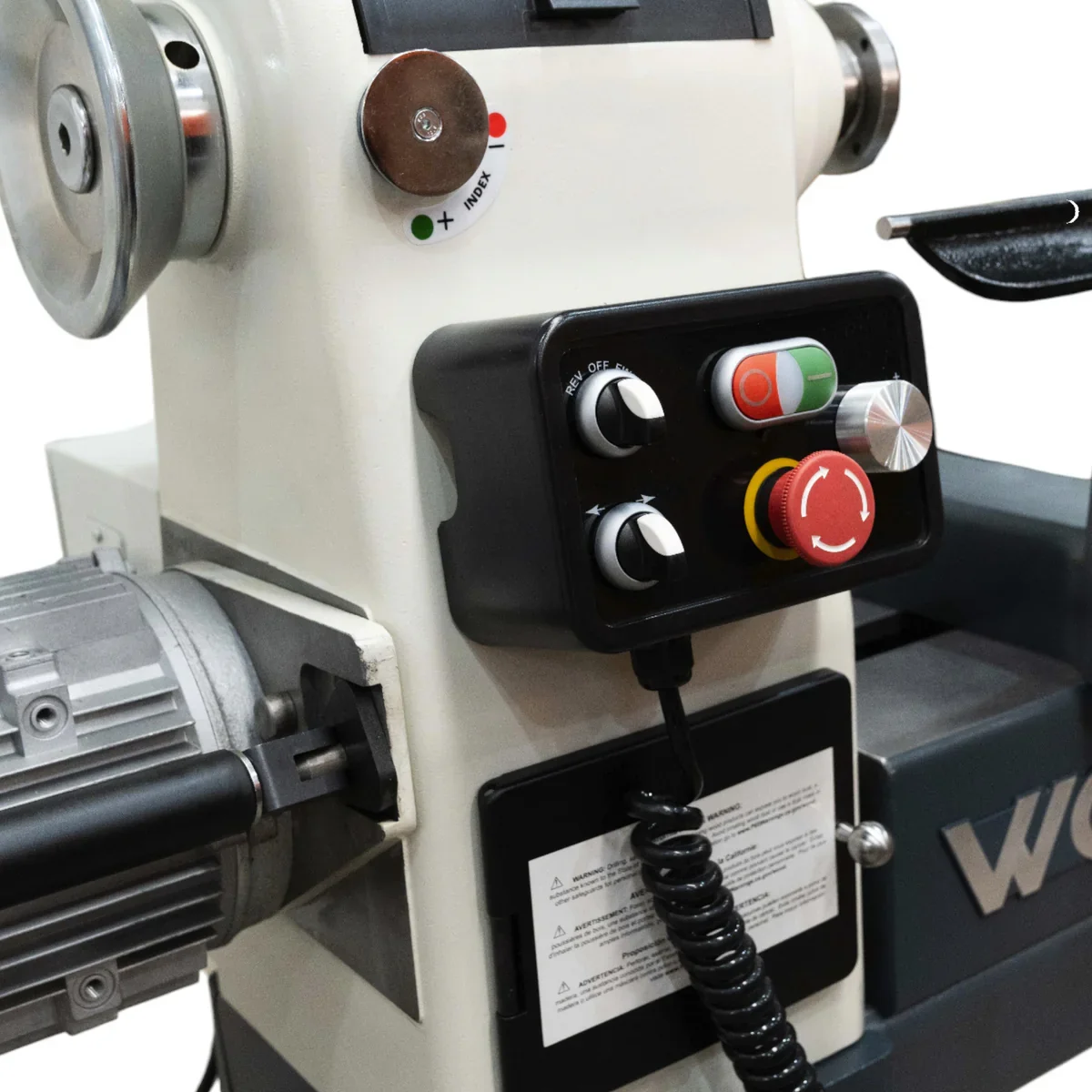

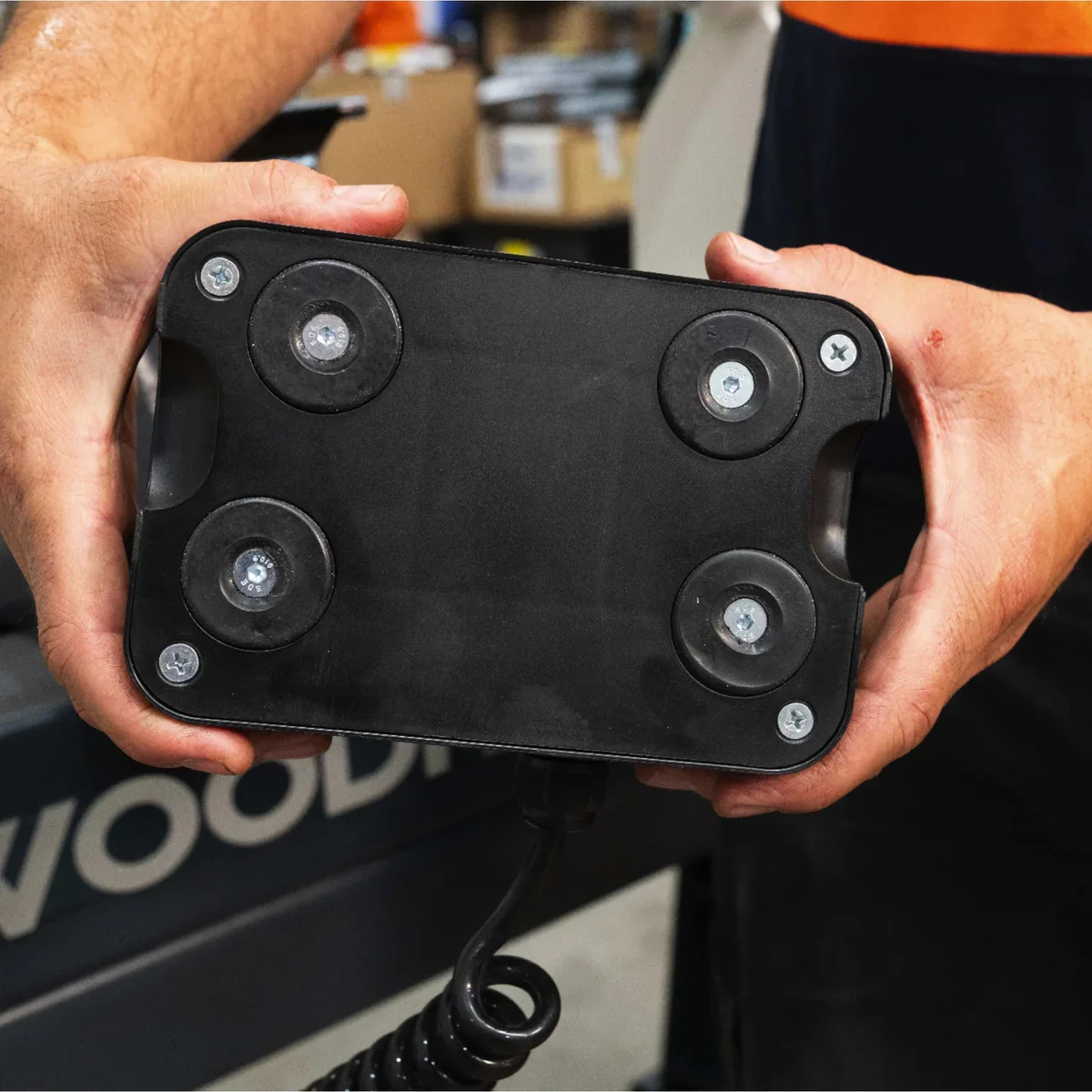

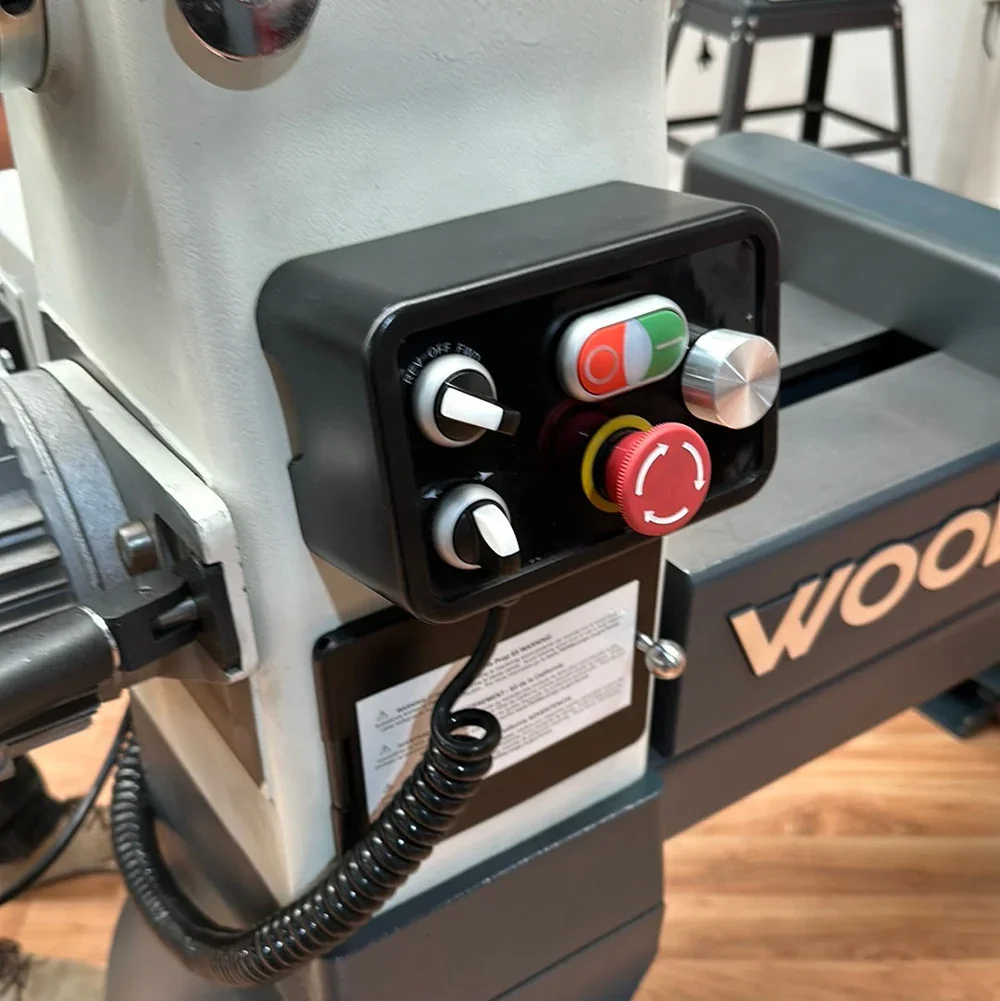

  • Remote Magnetic Control Box for the Spindle and the Bed movement.


SPECIFICATIONS

SKU                8001342

Part Number                   WL3040A

Size                  762 (30") Swing x 1060mm (40") Between Centres

Power Source            240V 50Hz Single Phase

Motor Power (Output)          3HP (2.2kW)

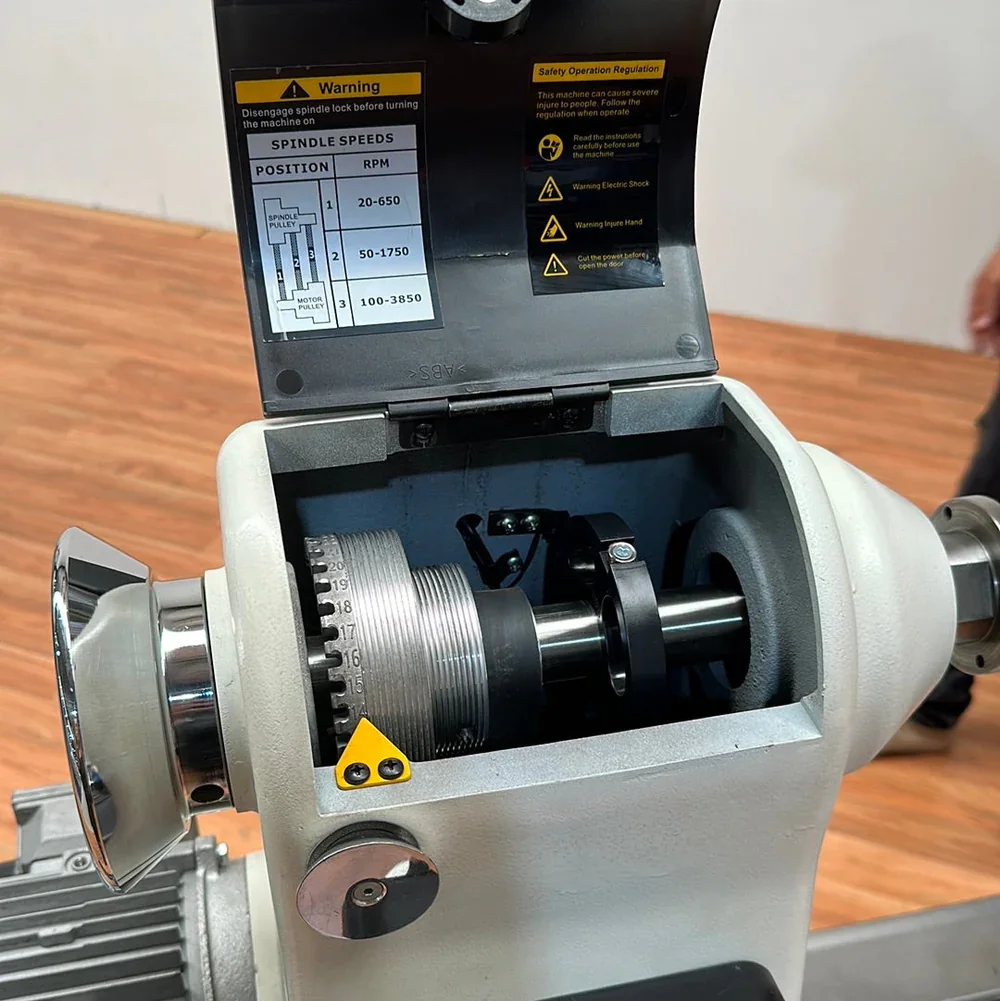

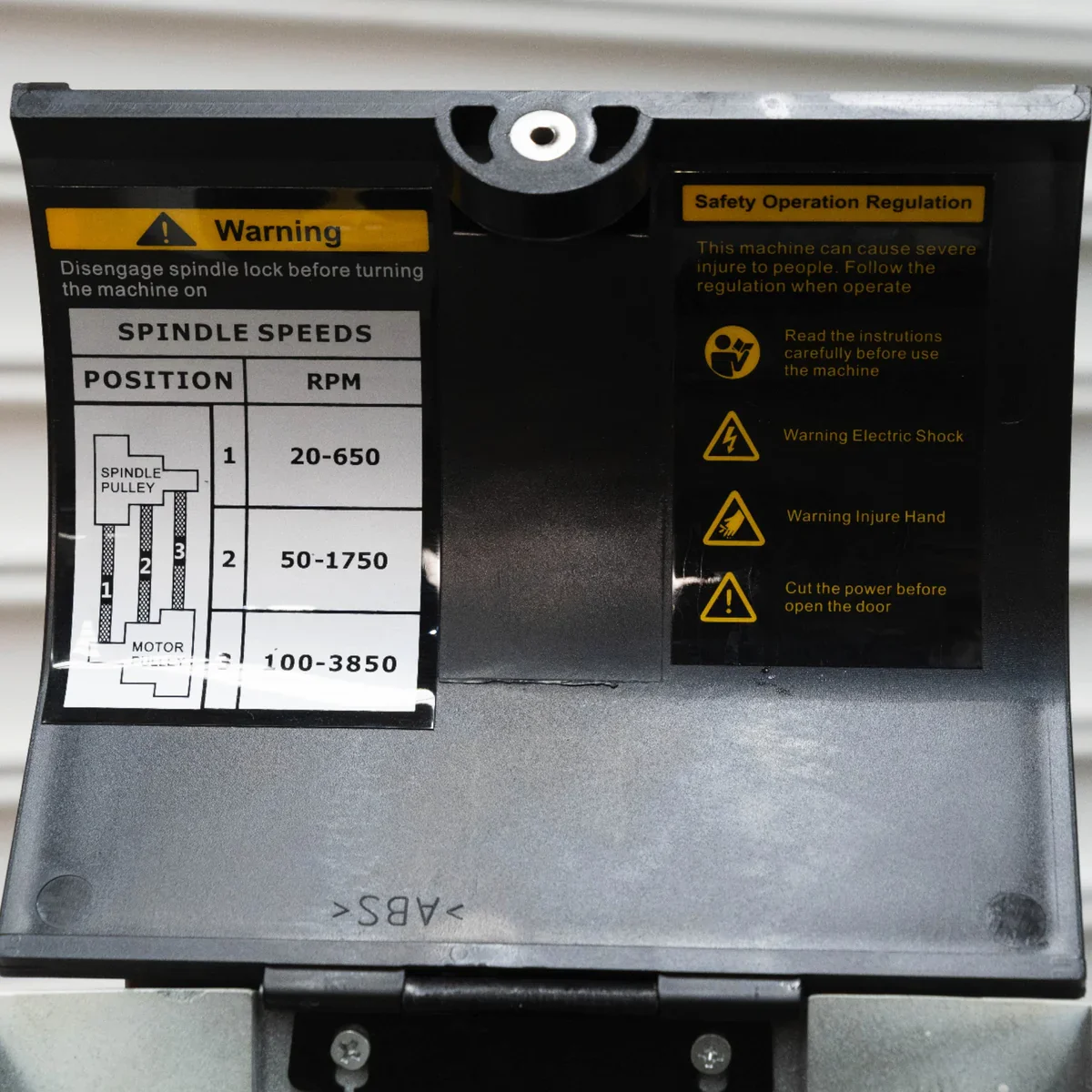

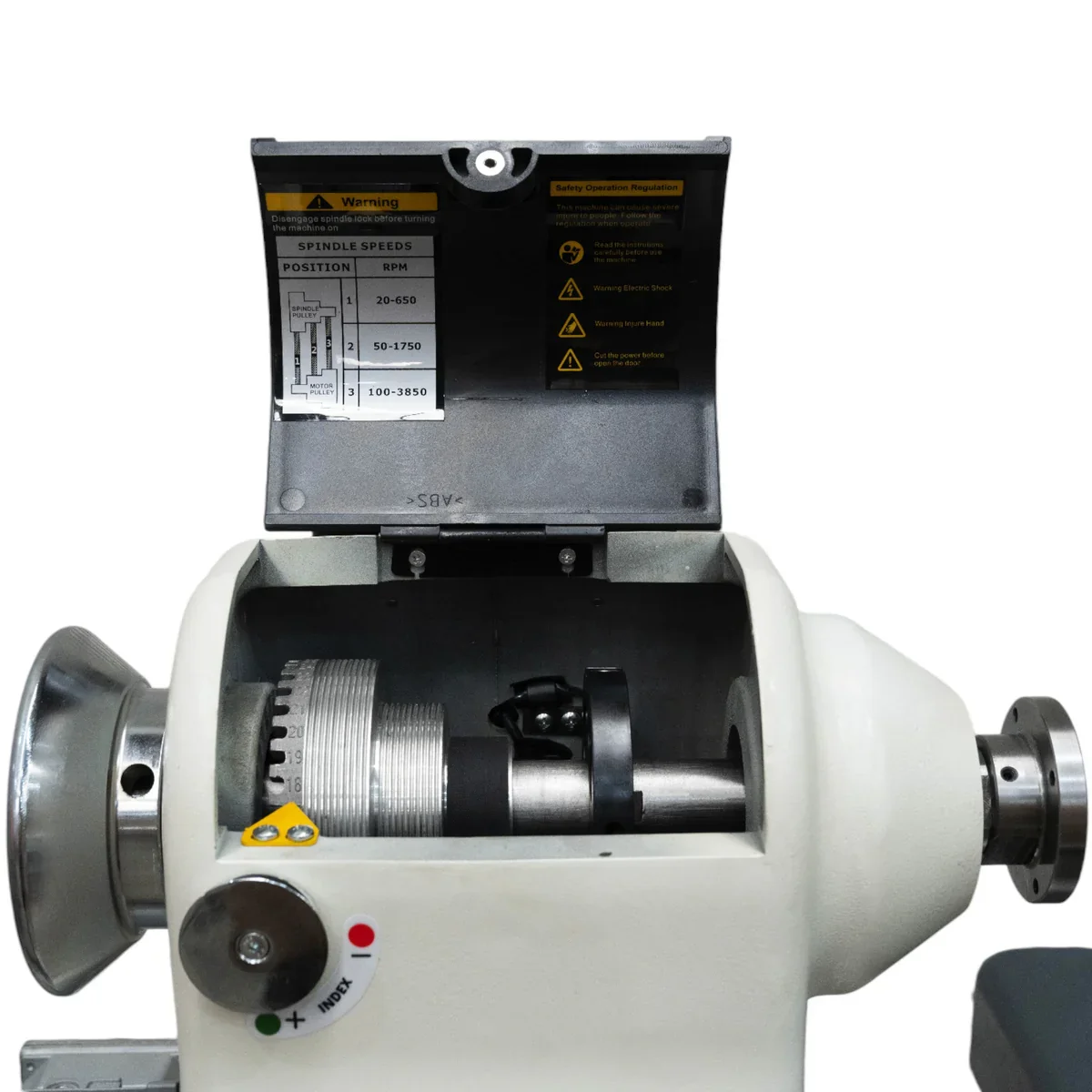

Speed Range 20-3850RPM (20–650RPM / 50–1,750RPM / 100–3,850RPM)

Swing Over Bed 590mm + 794mm

Distance between Centres 510mm (20") - 1016mm (40")

Spindle Taper - Tailstock MT2

Spindle Taper - Headstock MT2

Spindle Thread M30 X 3.5

Product Weight (Net Weight) 303kg

Shipping Length 1570mm

Shipping Width 670mm

Shipping Height 870mm

Shipping Weight (Gross) 303kg
