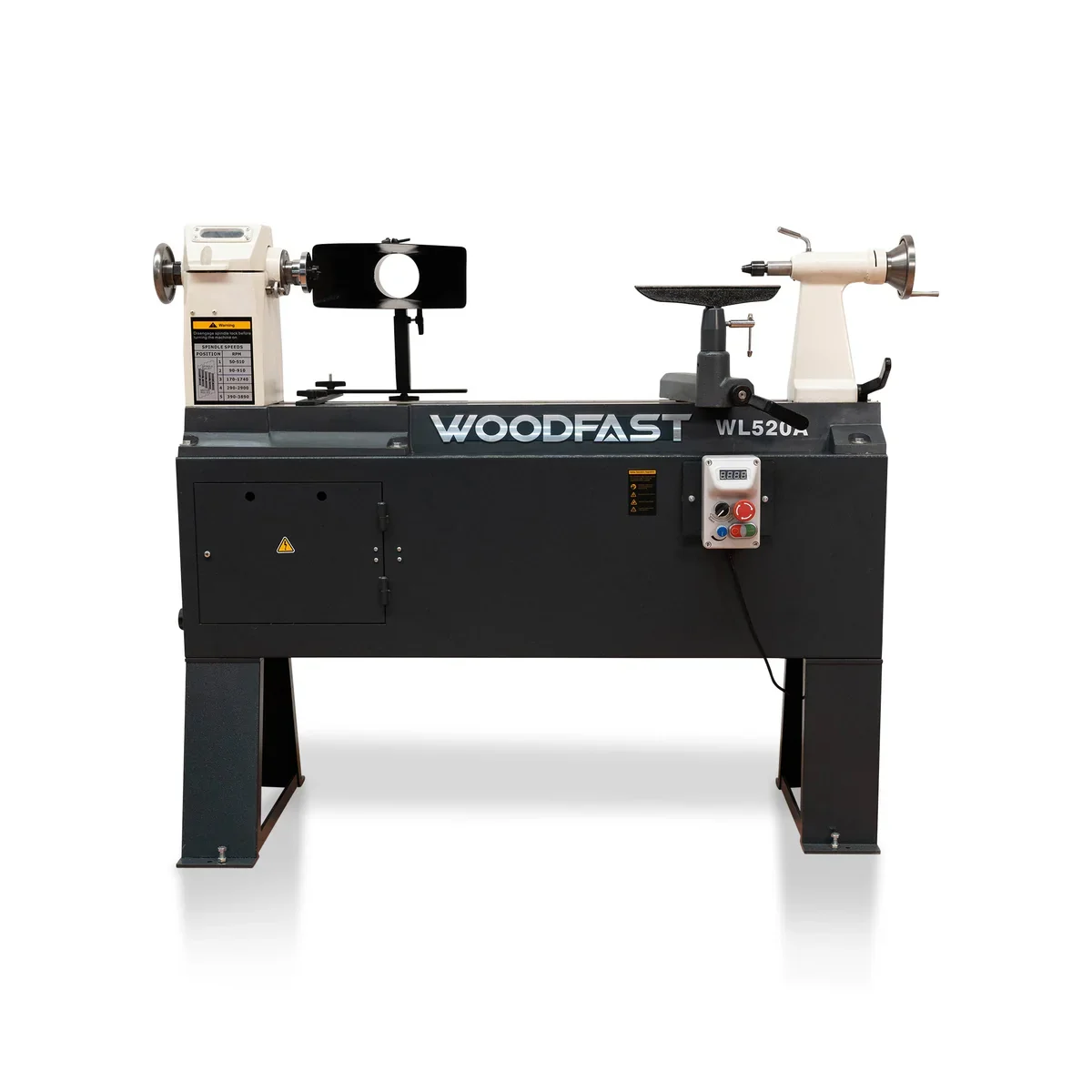

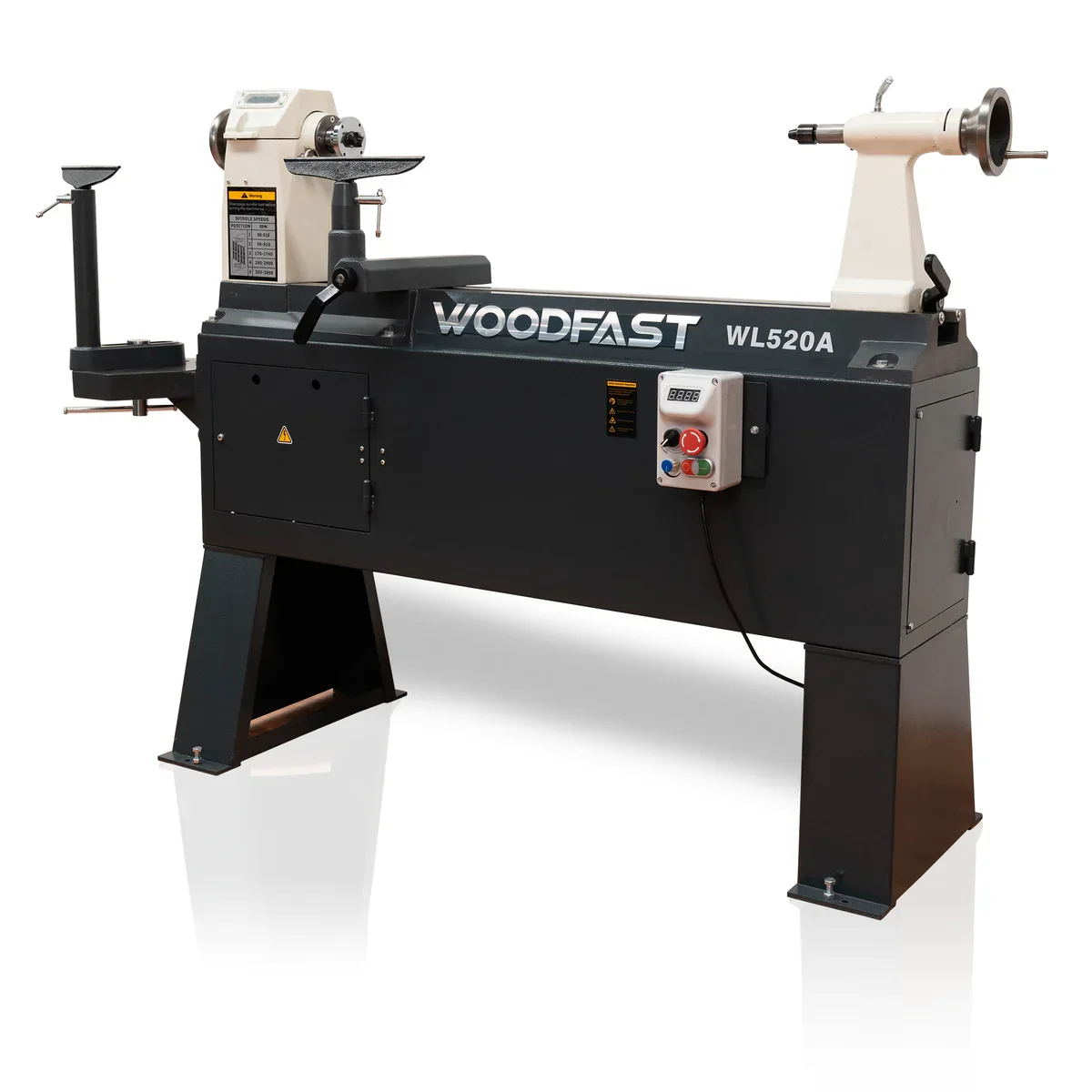

The WL520A Series is a truly classic lathe and ideal for education, featuring a fixed head for outboard turning. It has been designed to offer large capacities and support for heavy work in a traditional configuration that is familiar to woodturners worldwide. Combined with modern construction and high-quality electronic control, this machine is ideal for the professional woodturner as well as the dedicated enthusiast.

The optional 311mm Lathe Leg Kit is 75mm (3") shorter from the base to suit educational or similar environments where a shorter lathe is more convenient. This can be purchased as a separate optional extra.

Cast iron features heavily in the construction of this machine, including the headstock, tailstock, and cast bed. The splayed legs give further stability, with an opposing asymmetrical design to spread the load and counteract the forces generated by this formidable lathe.


ADVANTAGES

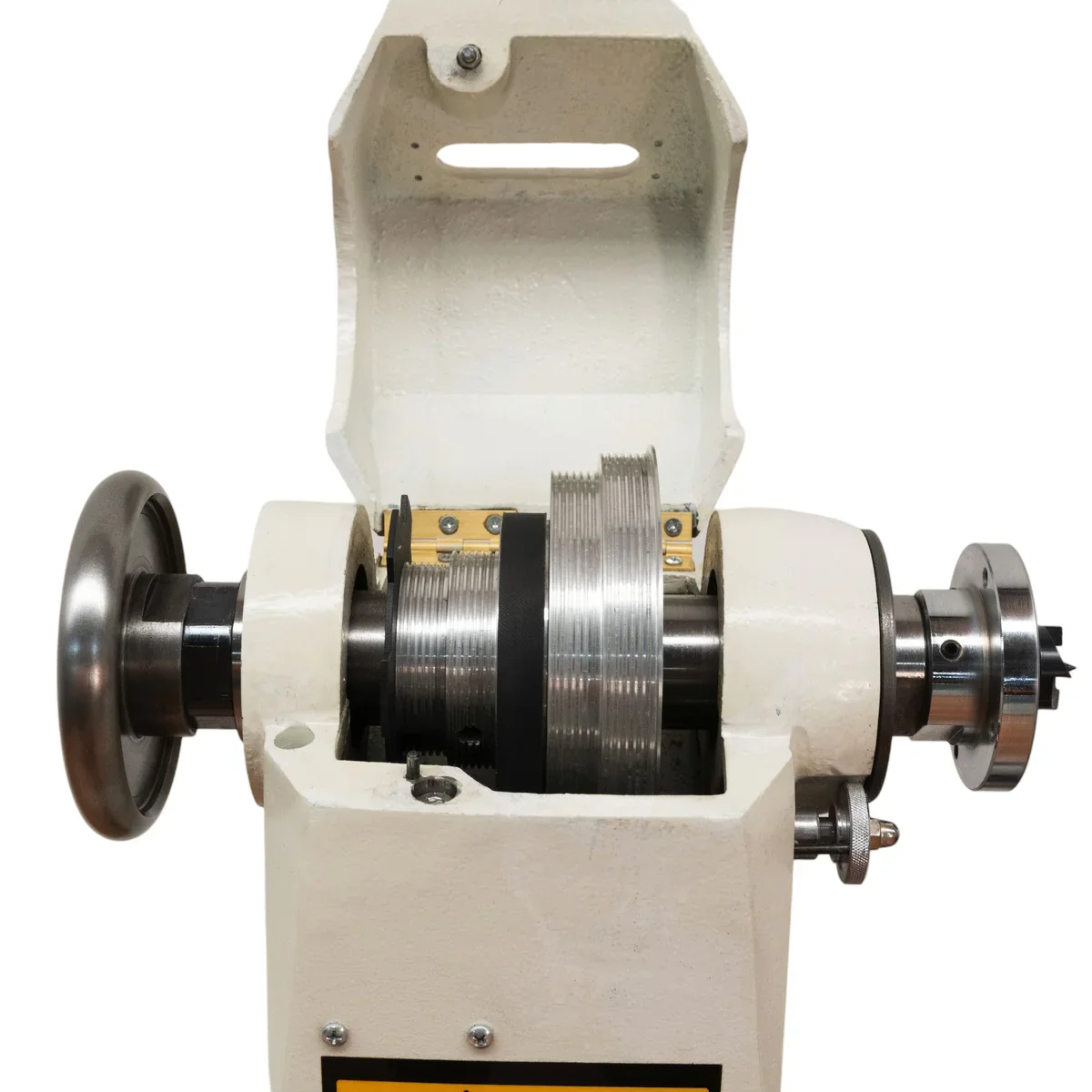

  • Extra Heavy Duty Spindle With QUATRE Precision Bearing Support

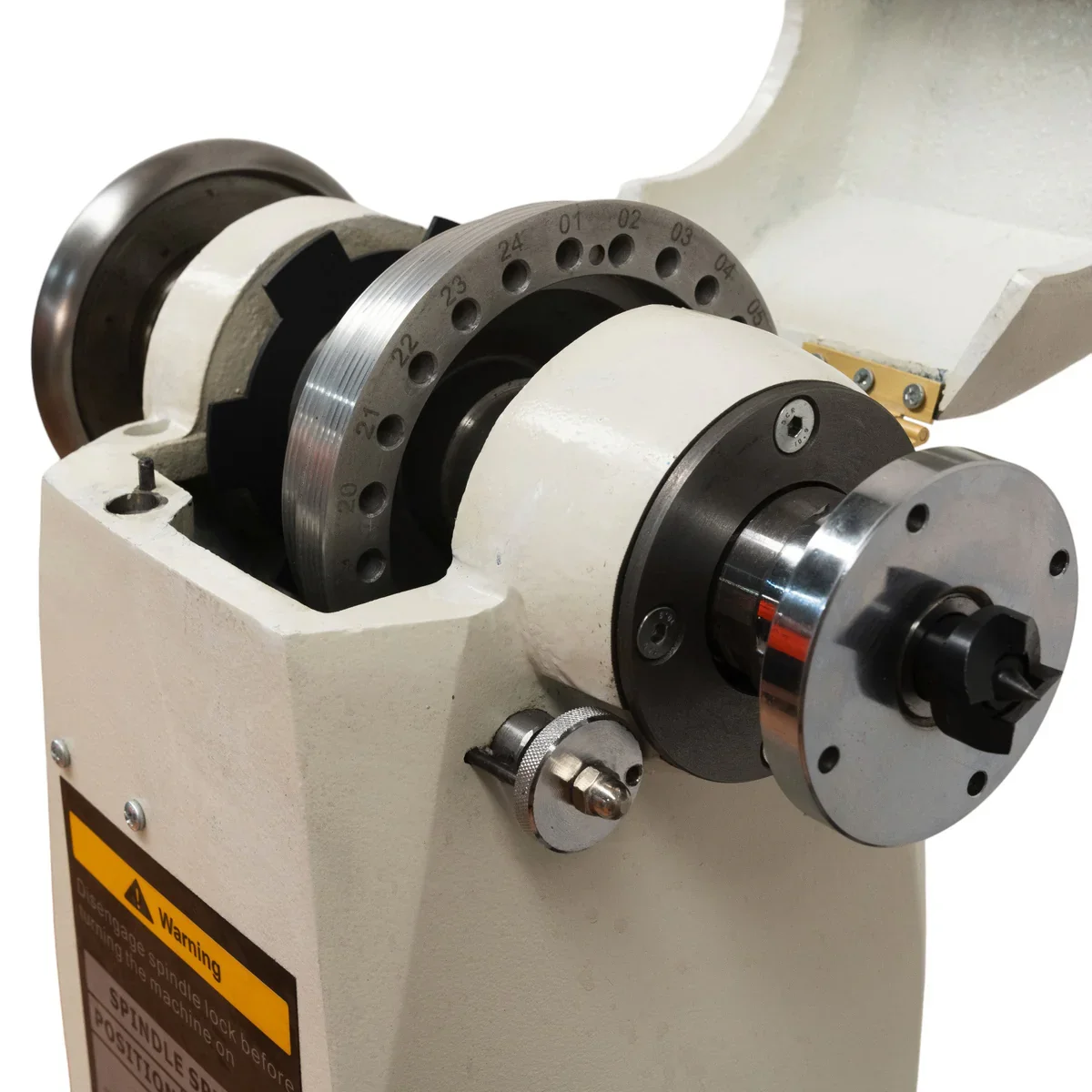

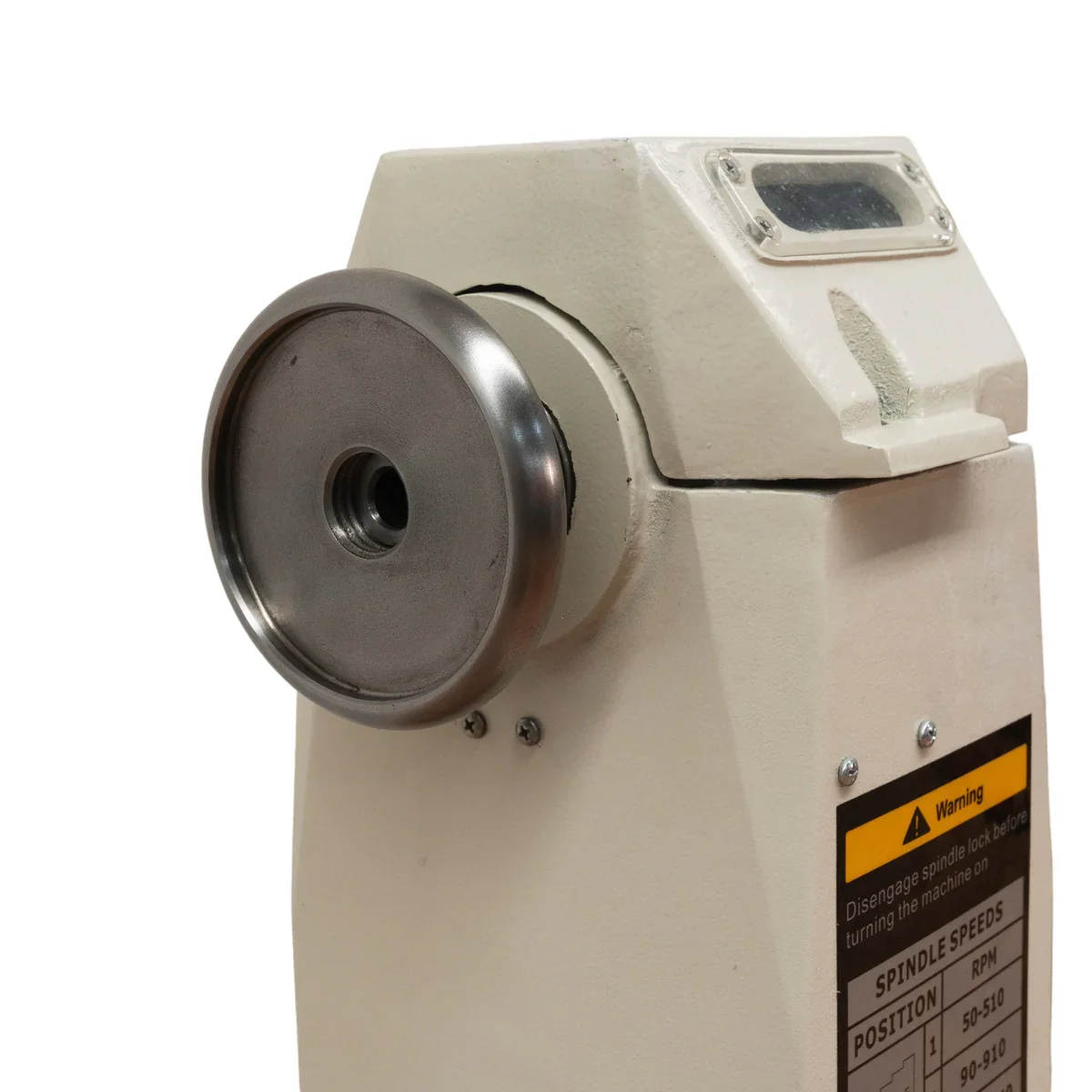

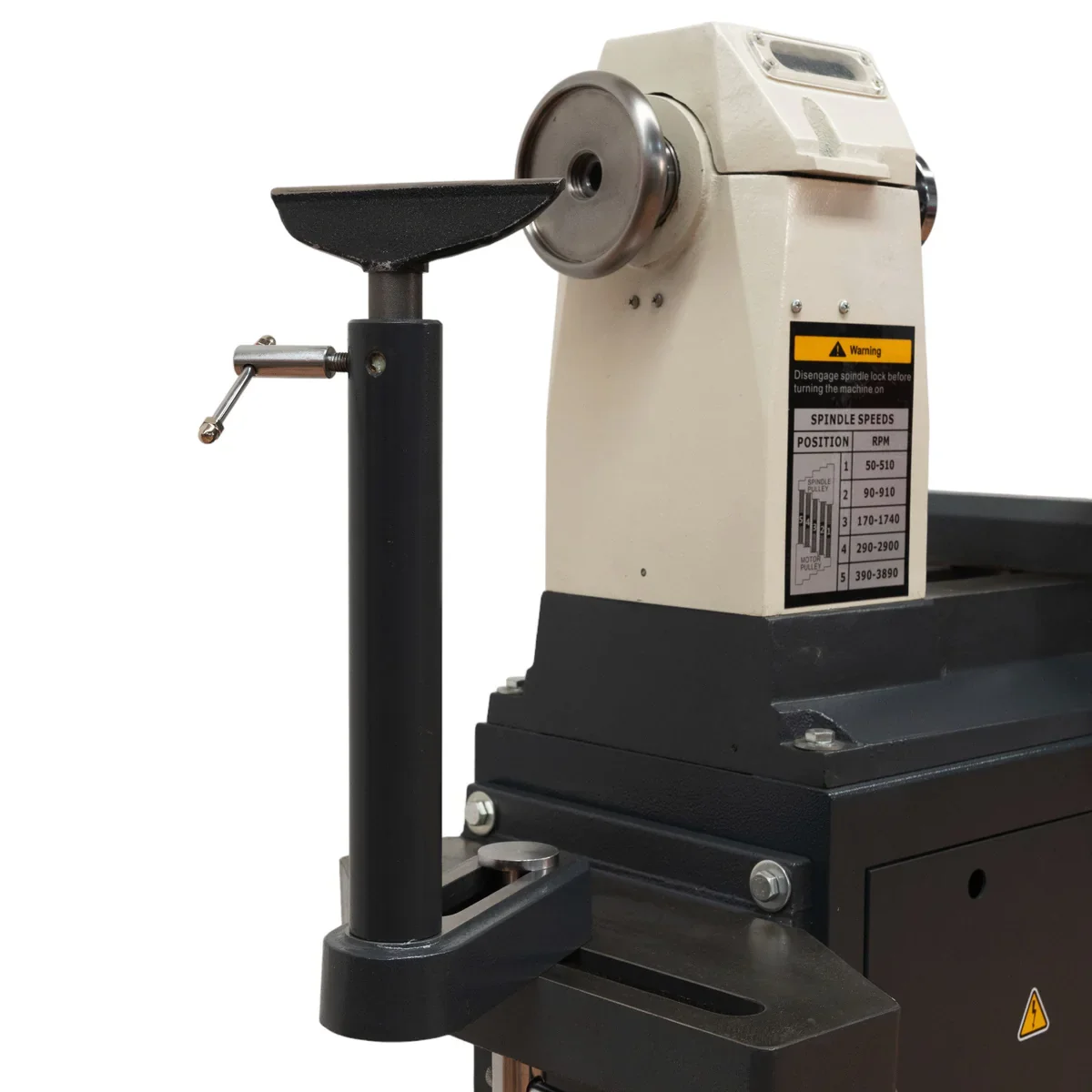

  • Rock Solid Headstock Features Indexing And Hand Brake Wheel

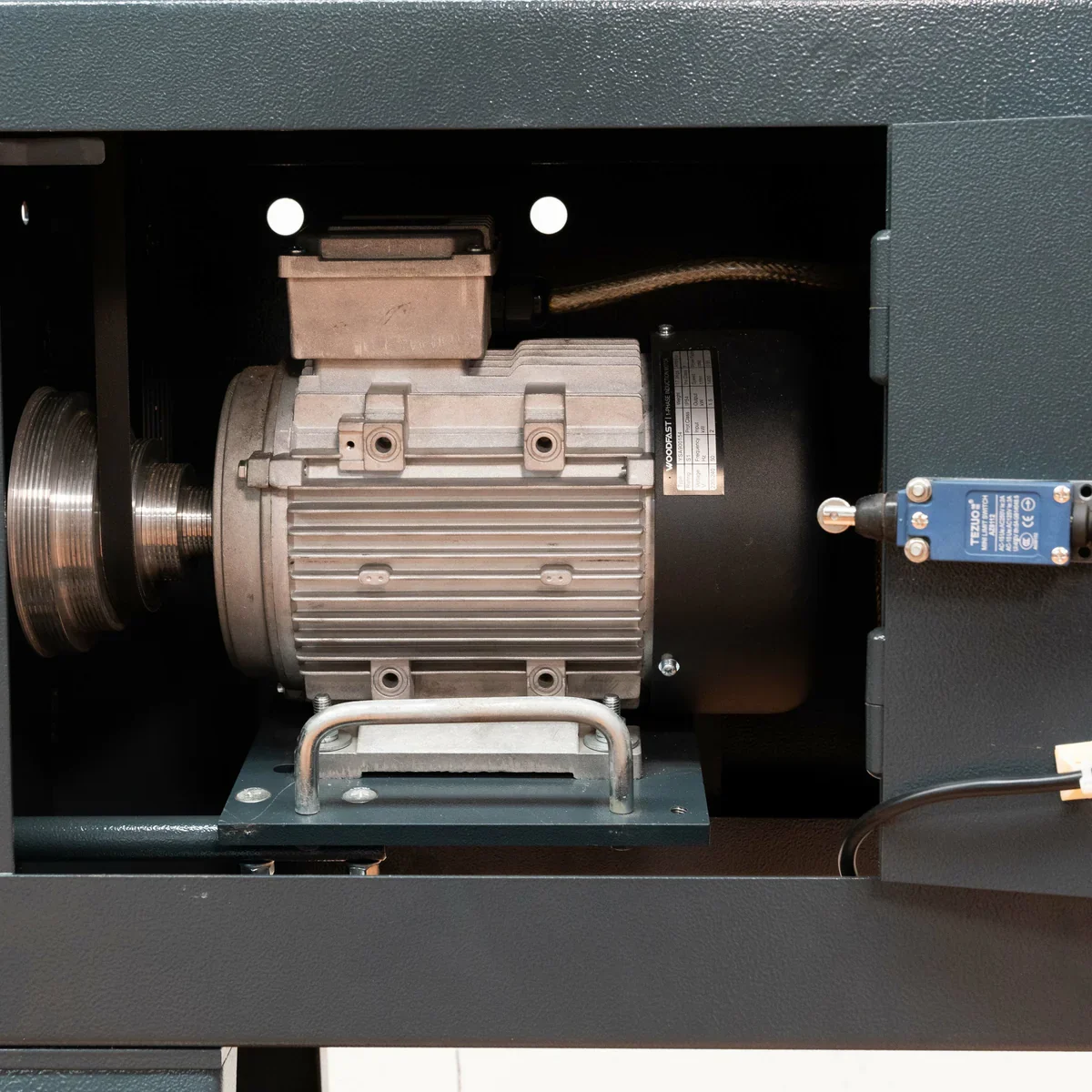

  • Easily Accessible Motor Inside The Cabinet Rather Than On The Headstock

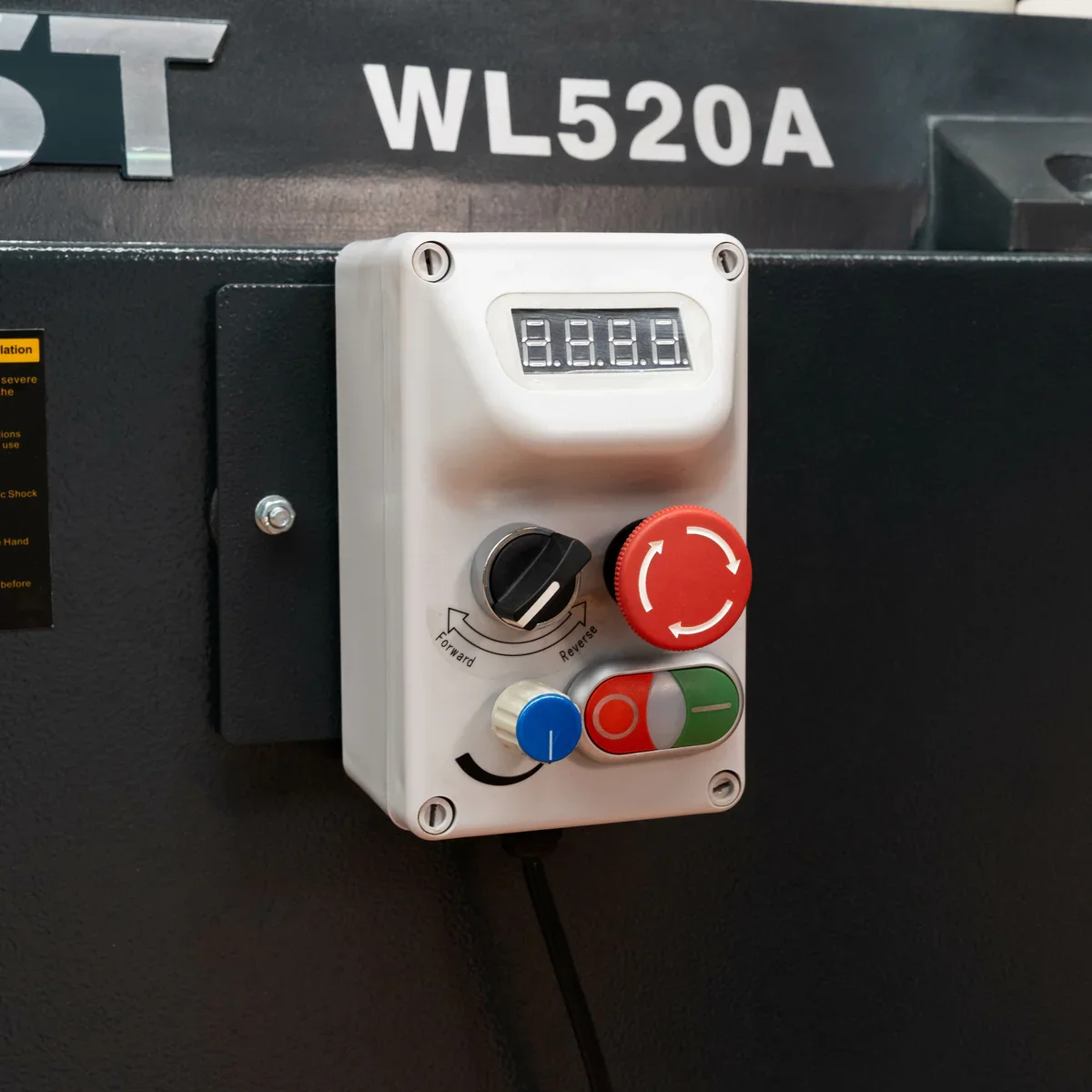

  • Electronic Variable Speed Is Achieved Using The Premium Quality European Made Schneider Inverter, The Industrial Solution To Variable Speed Control

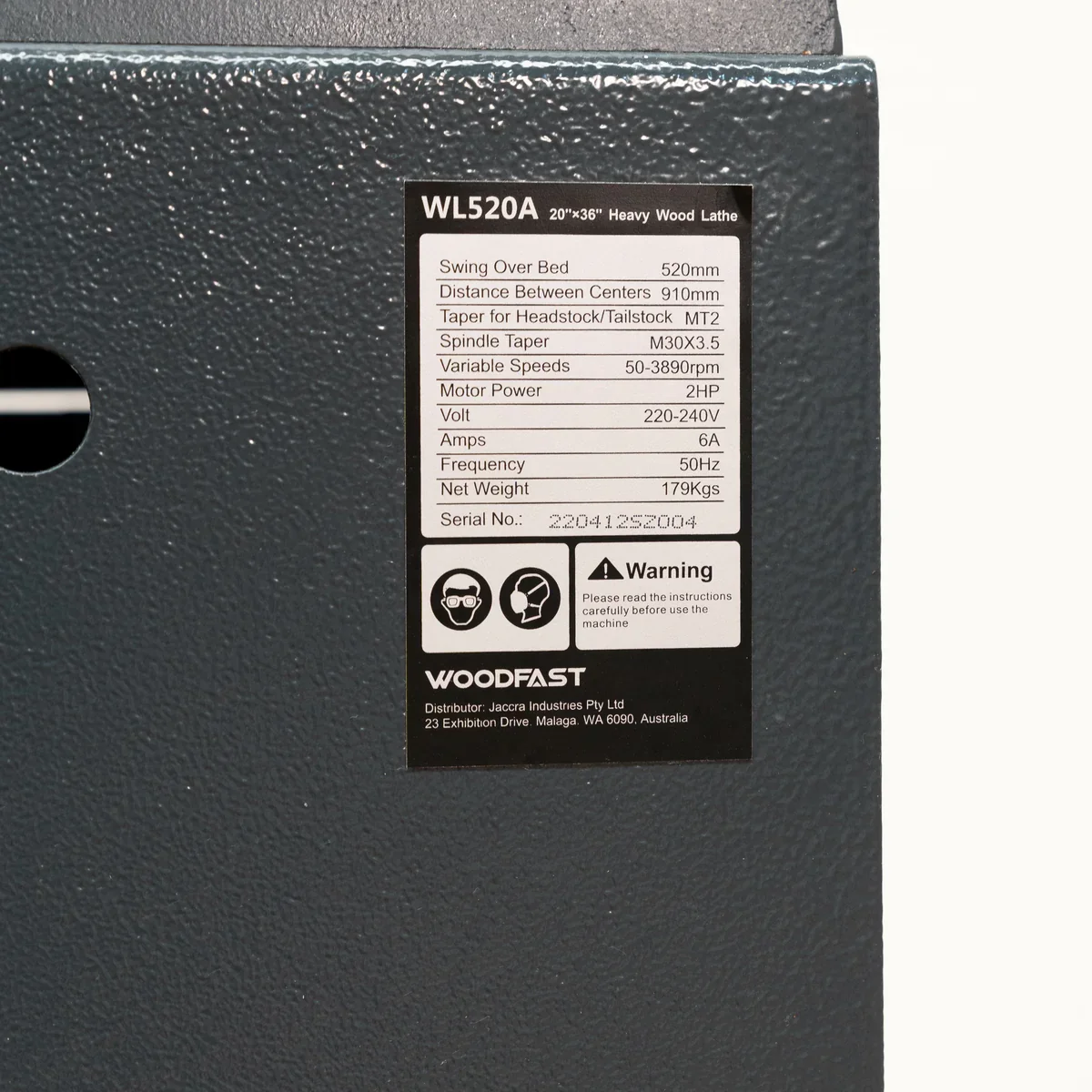

SPECIFICATIONS

SKU                8000838

Part Number                   WL520A-SHORT

Size                  510mm (20") Swing x 915mm (36") Between Centres

Power Source            240V 50Hz Single Phase

Motor Power (Output)          2HP (1.5kW)

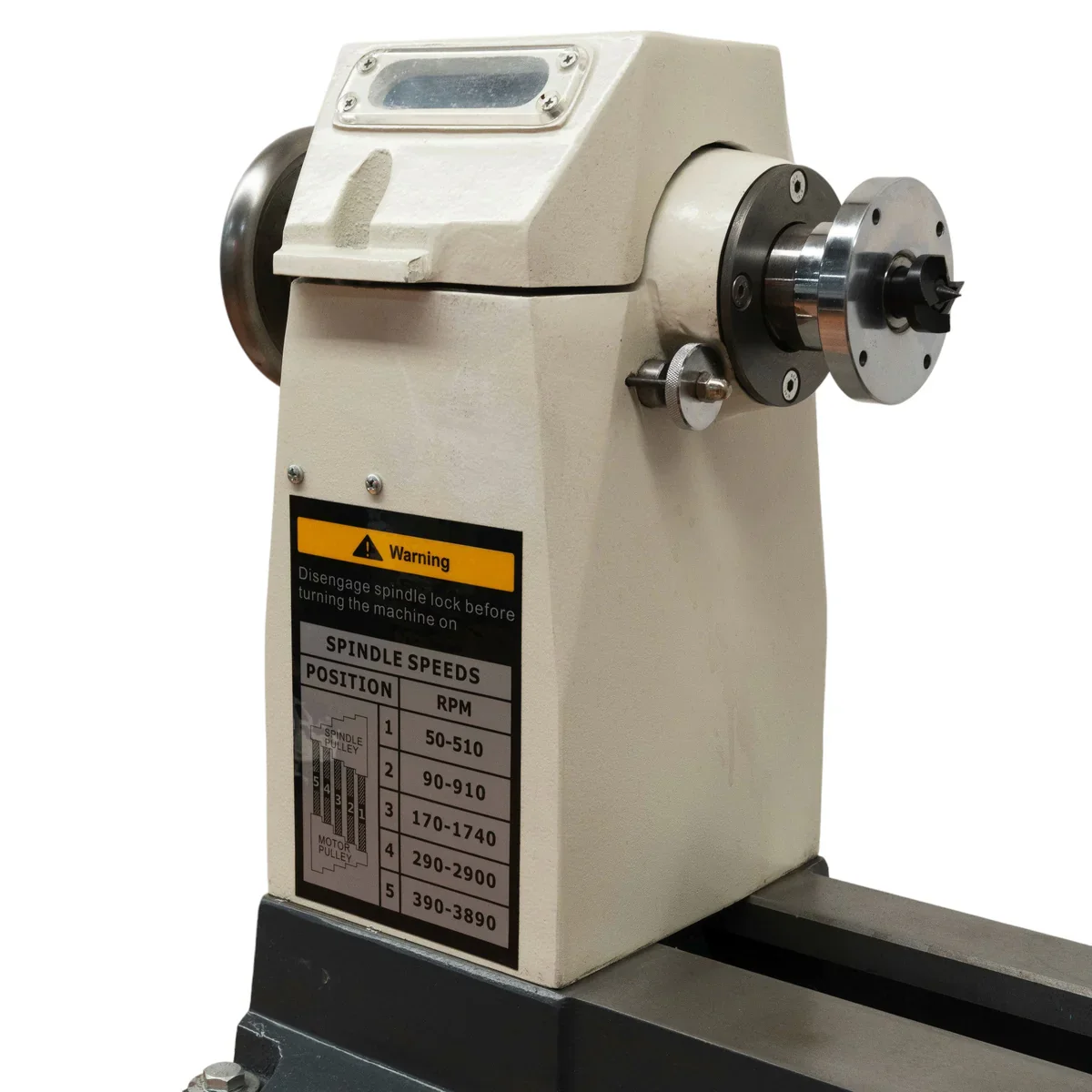

Speed Range 50-3890RPM

Swing Over Bed 510mm (20")

Distance between Centres 910mm (36")

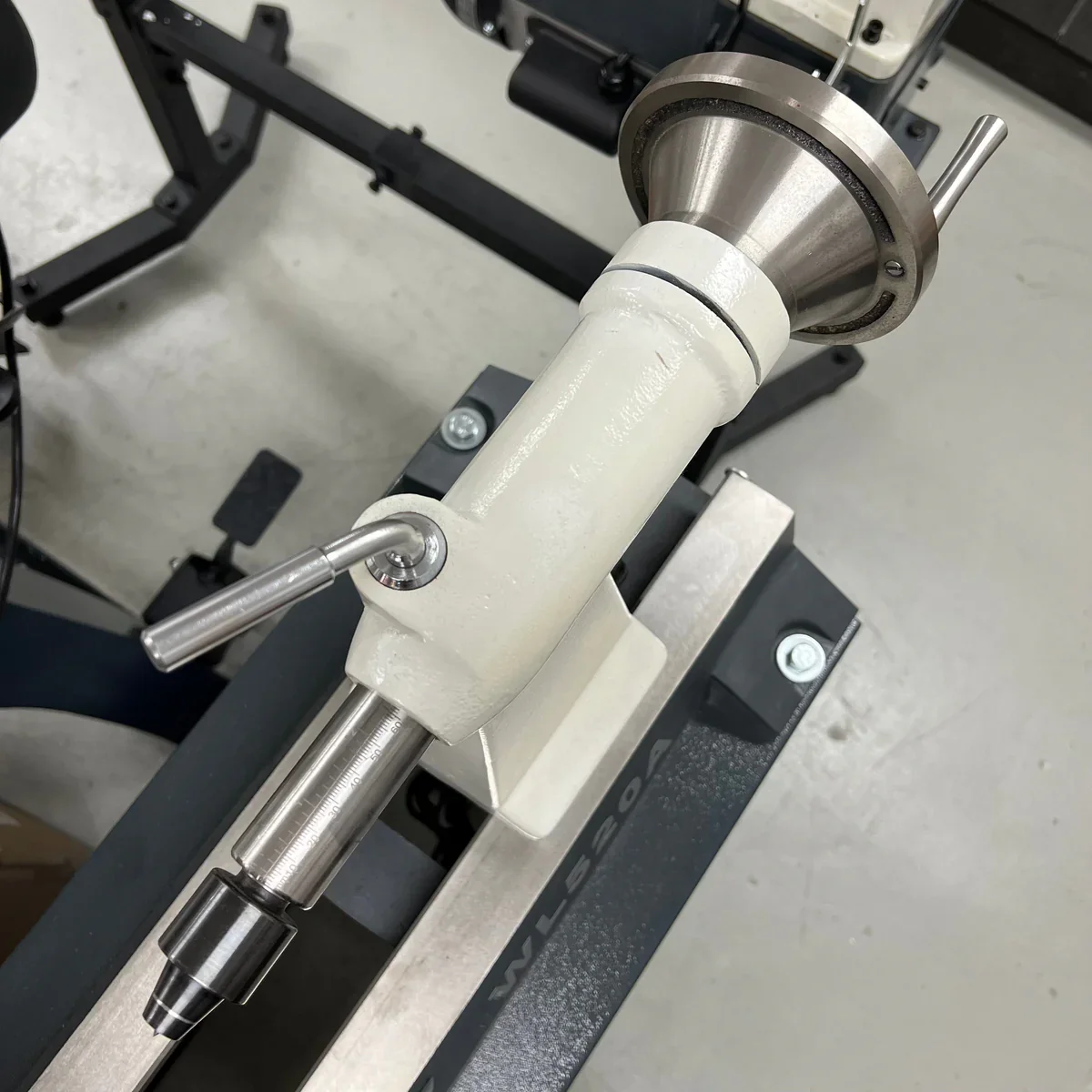

Spindle Taper - Tailstock MT2

Spindle Taper - Headstock MT2

Dust Hose Inlet Diameter 100mm

Product Weight (Net Weight) 102kg

Shipping Length 1510mm

Shipping Width 960mm

Shipping Height 1180mm

Shipping Weight (Gross) 263kg
