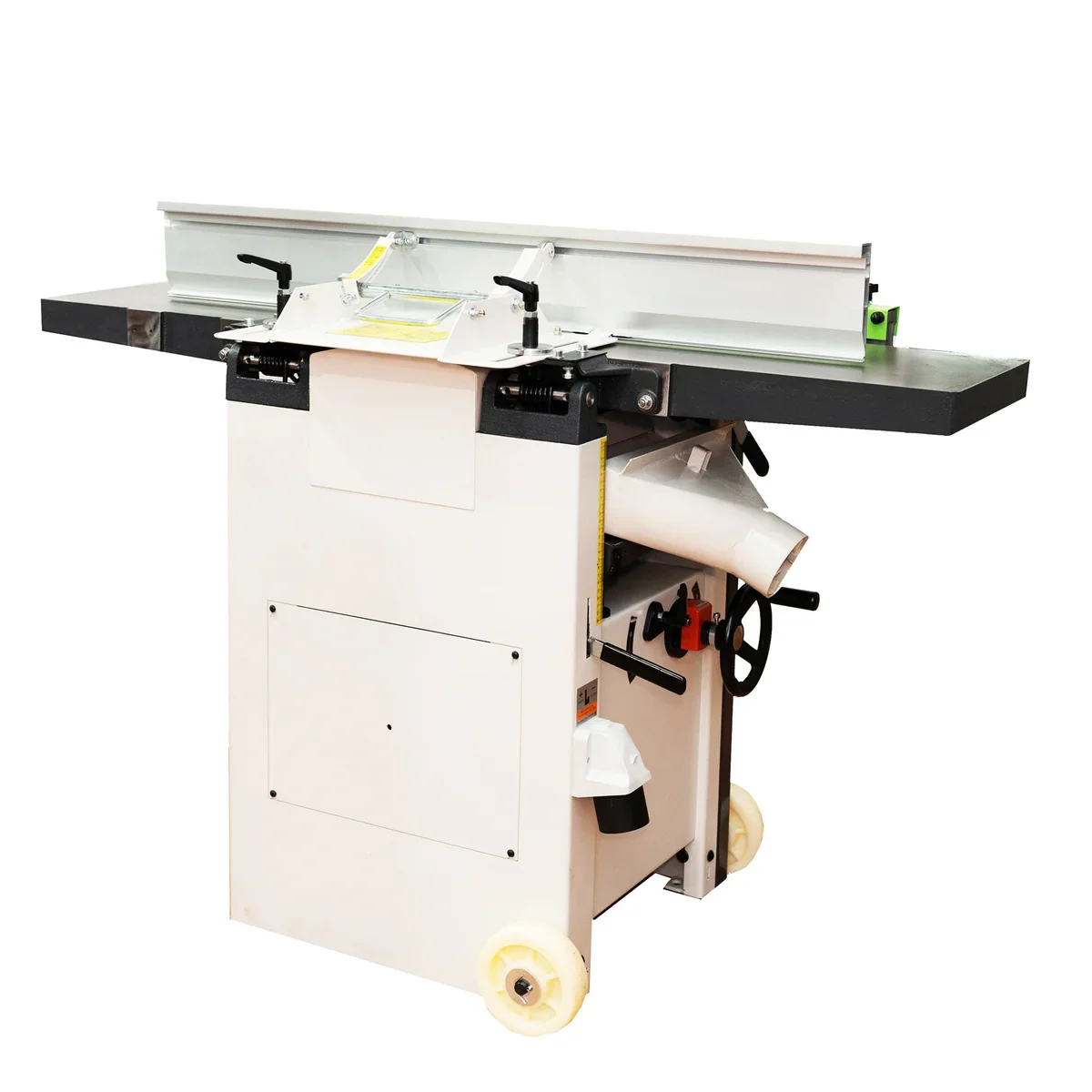

Introducing the Woodfast PT260B Planer Thicknesser - your all-in-one solution for precision woodworking!

This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT260B is built to handle even the toughest woodworking projects.

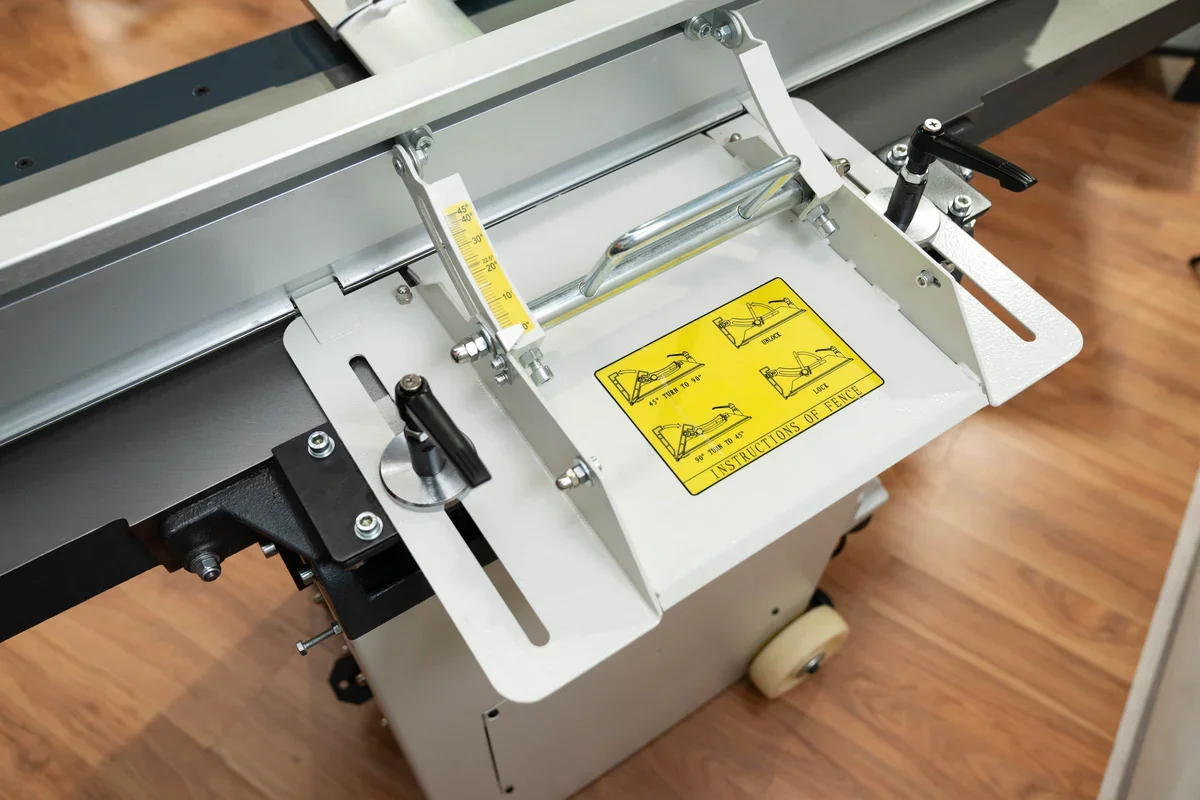

The PT260B has a 260 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.


ADVANTAGES

  • 260mm (10") wide cutting capacity

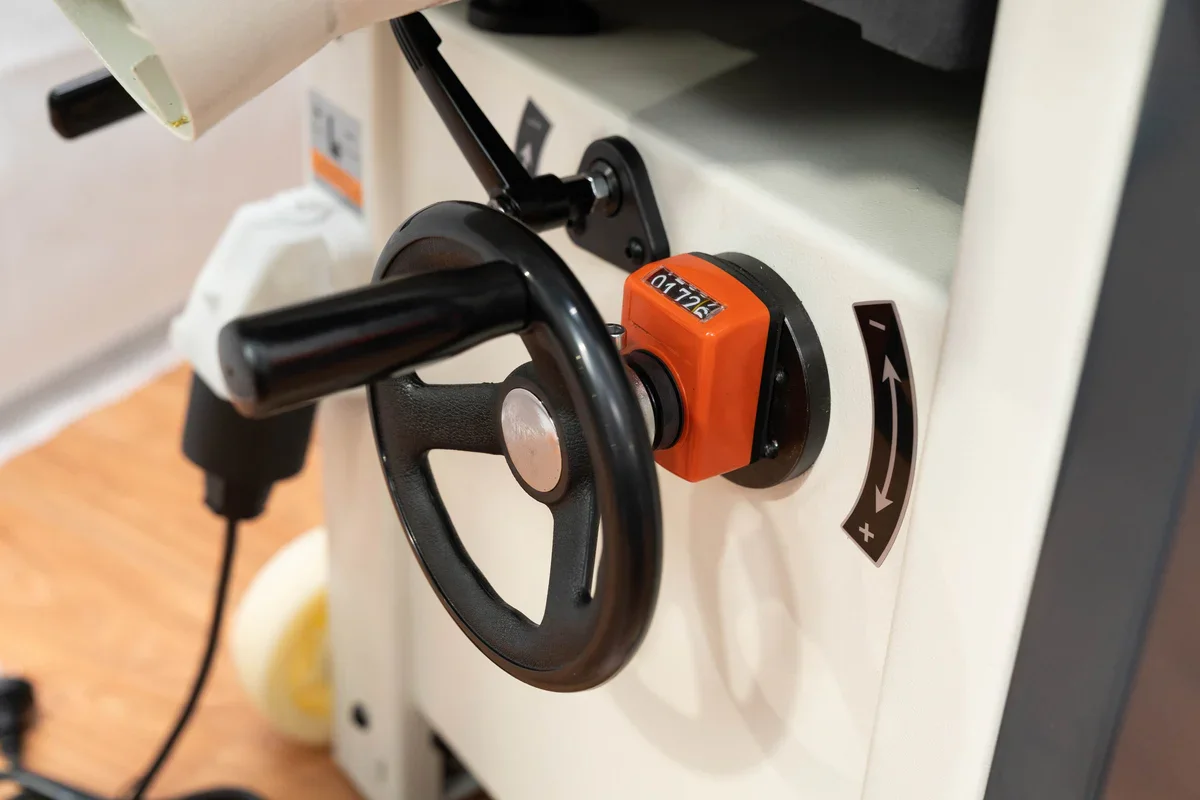

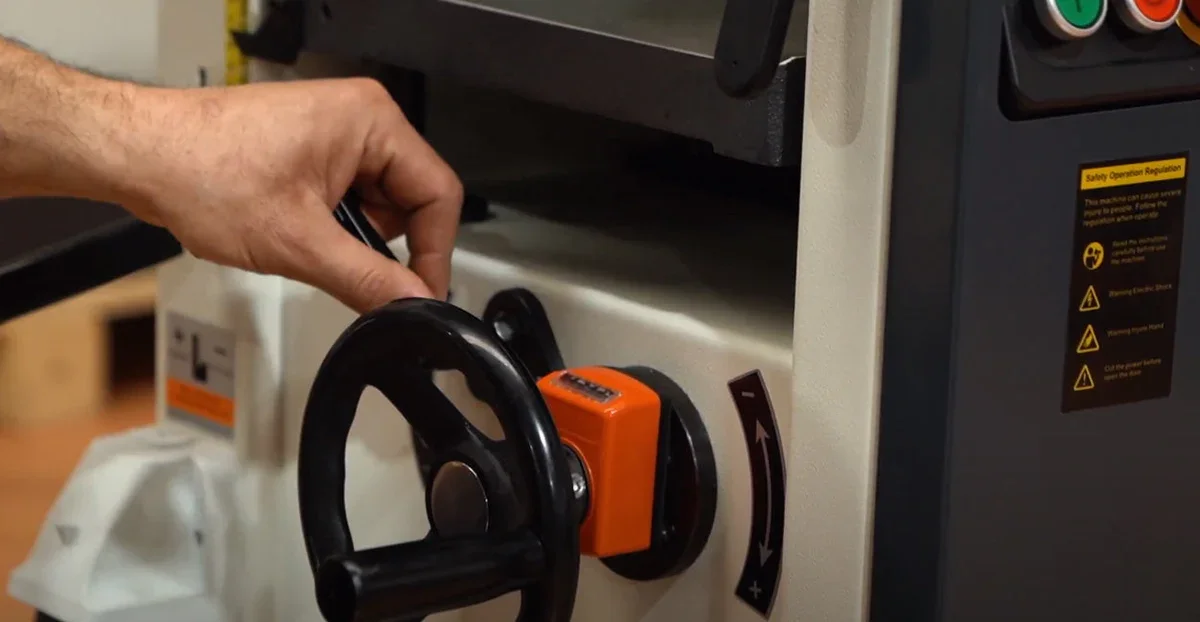

    Automatic material thickness measurement for quick and easy setup via digital height readout.

  • Micromillimeter adjustment of material feeding

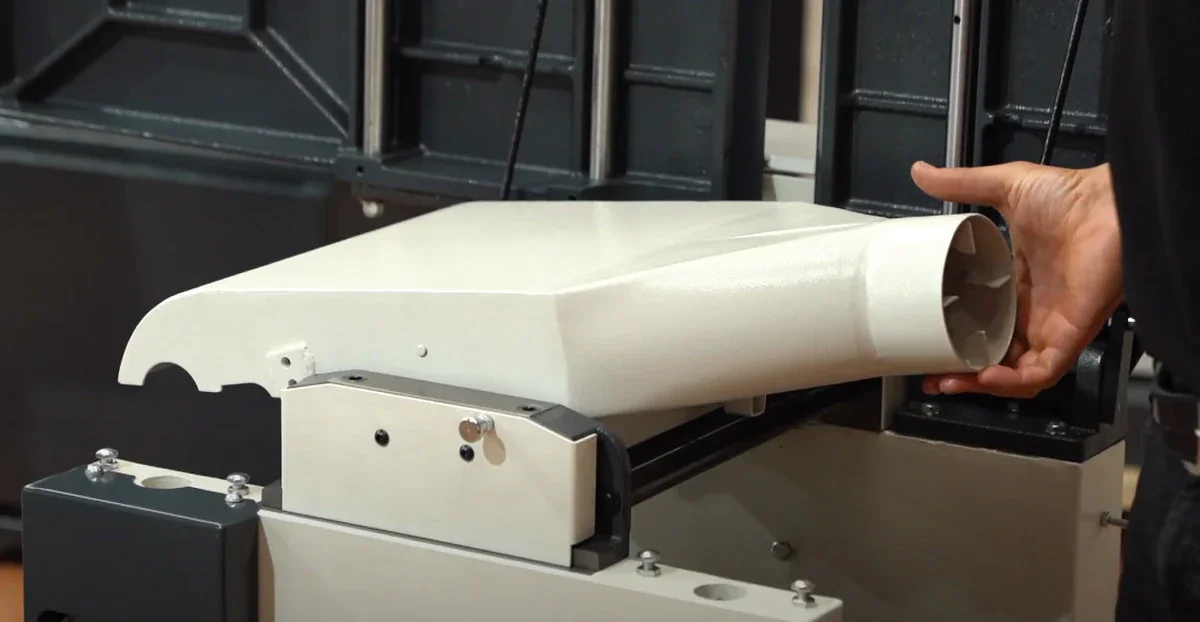

  • Large dust collection port for efficient dust extraction

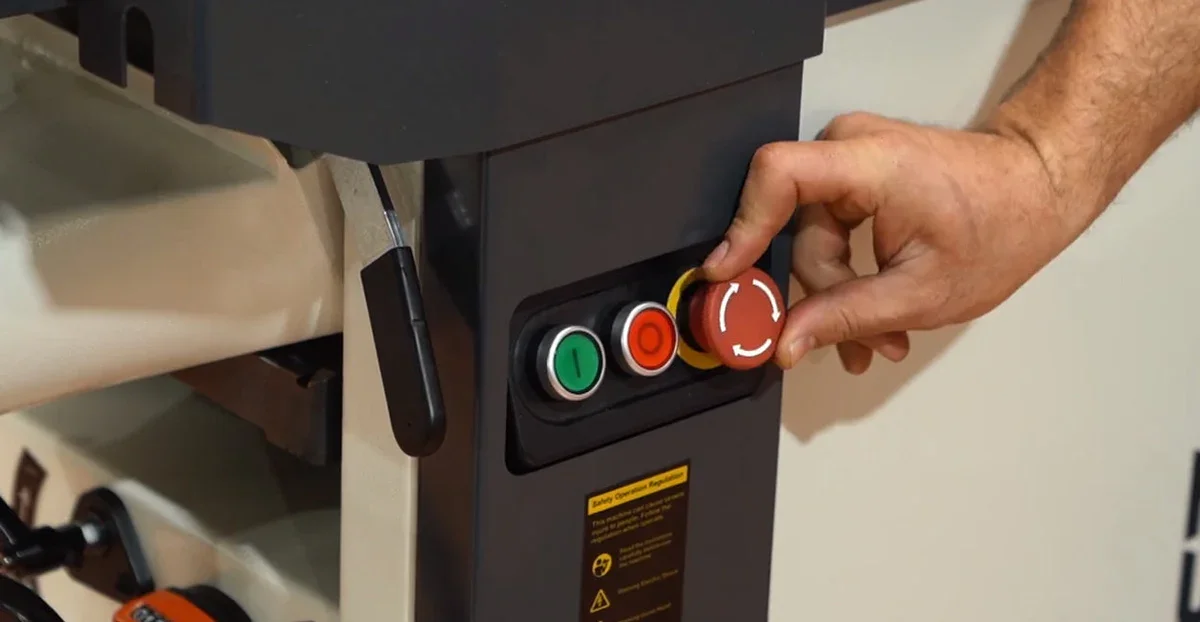

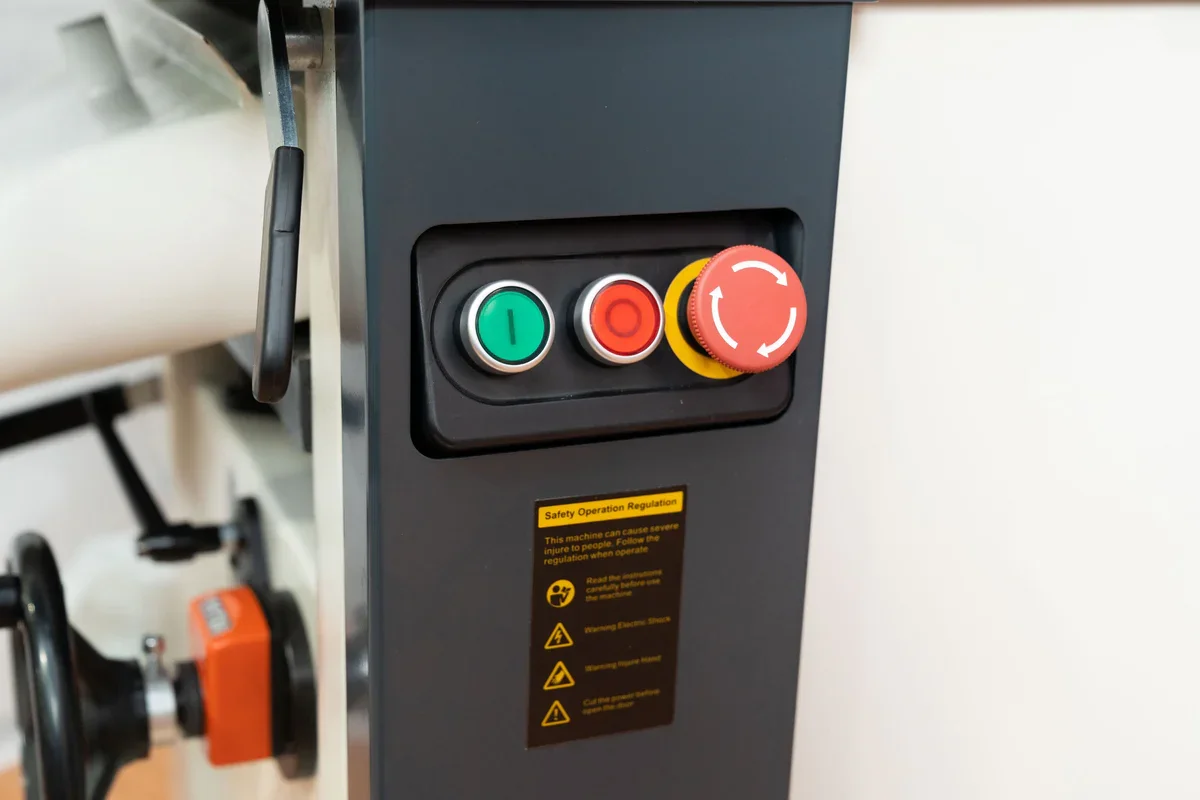

  • Emergency Stop

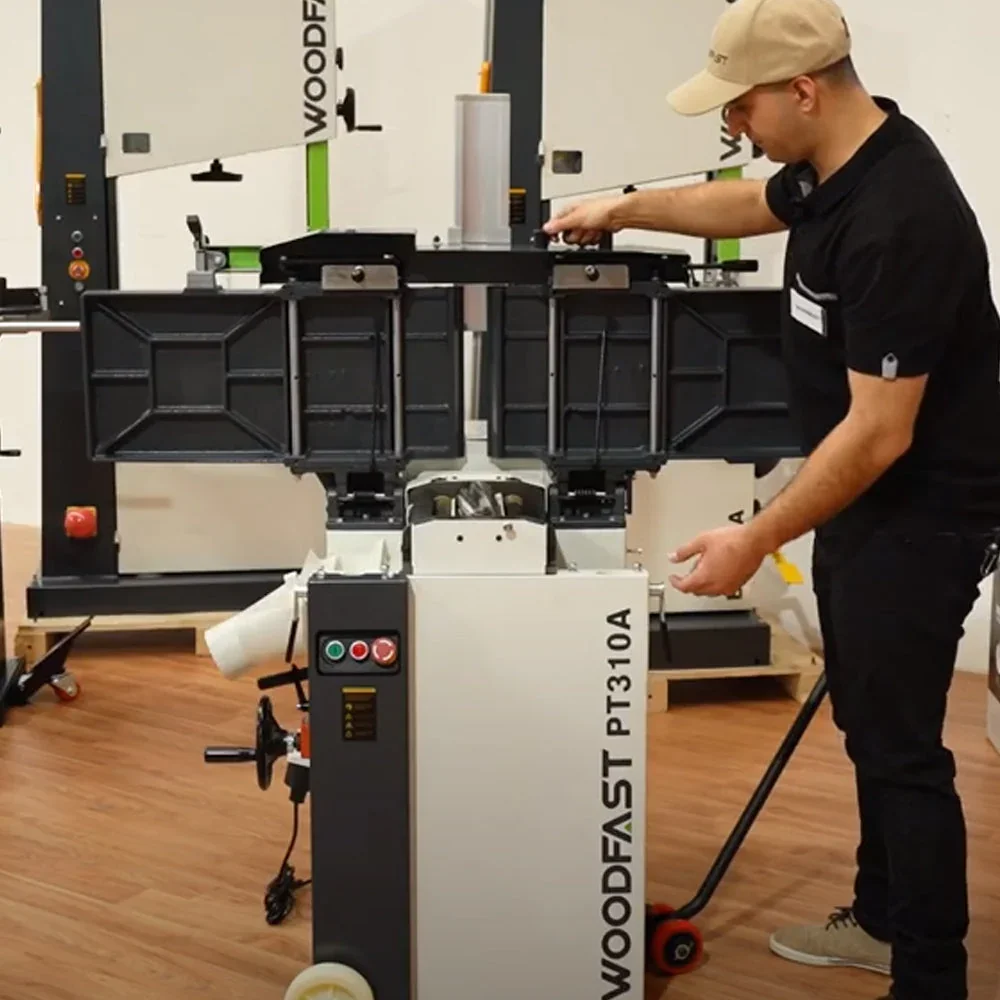

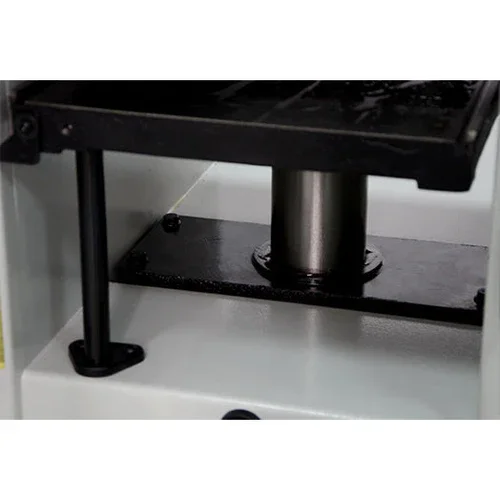

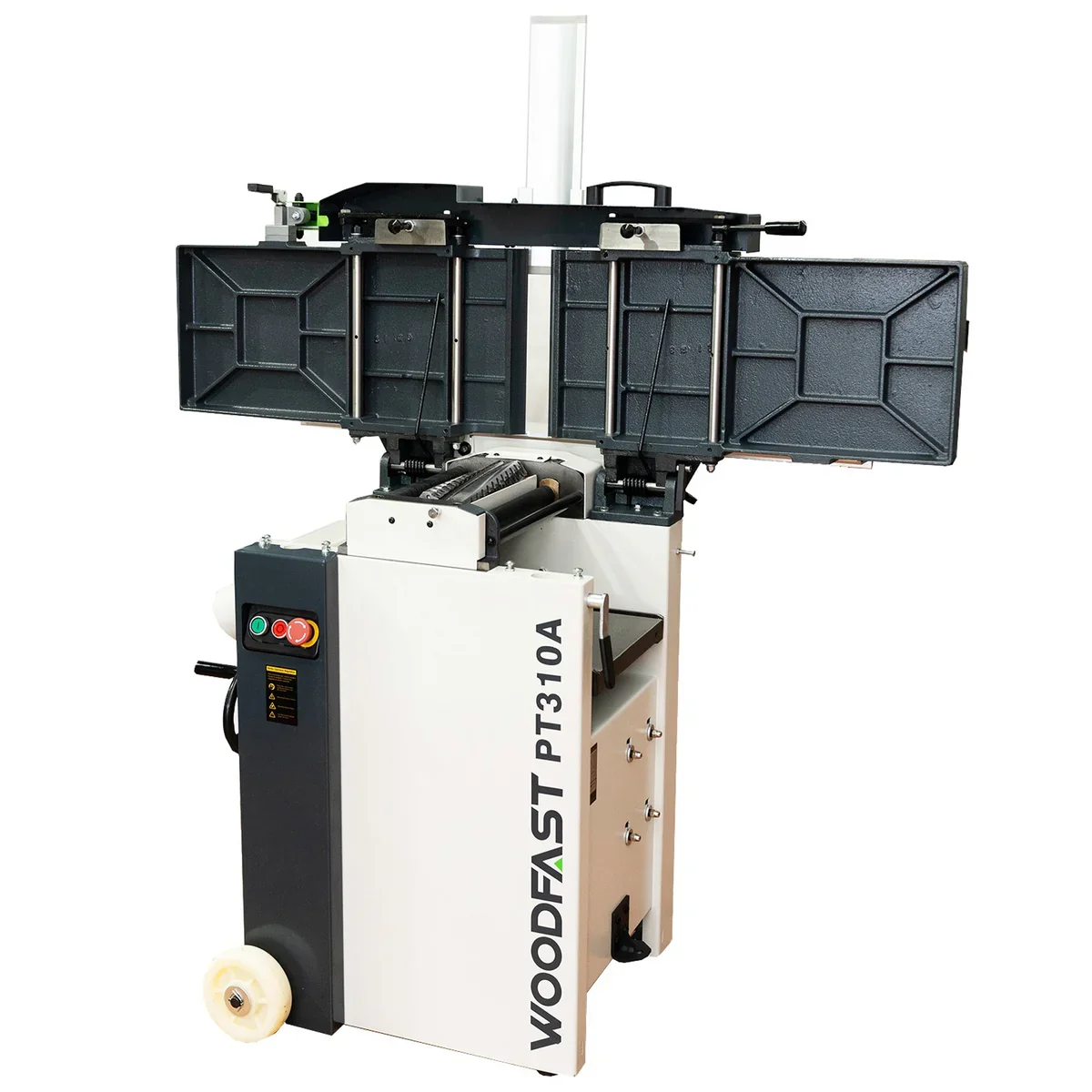

  • Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.

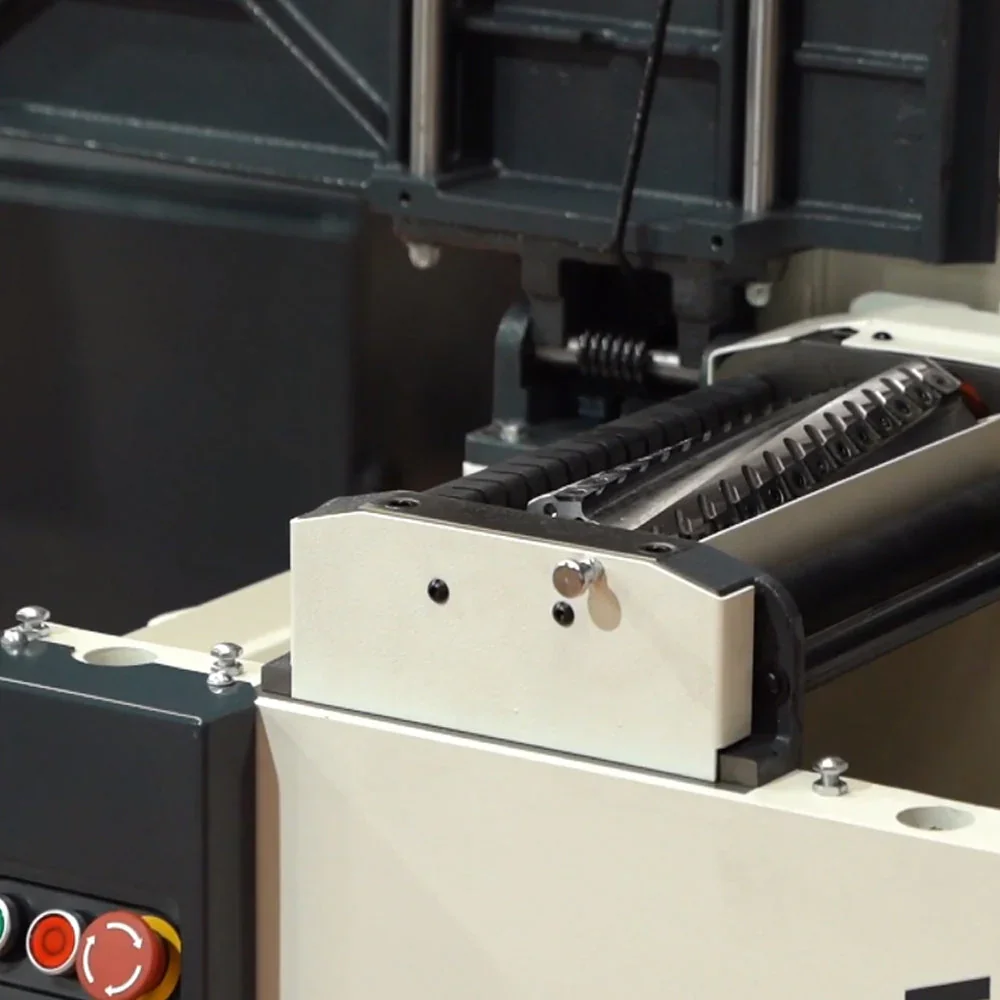

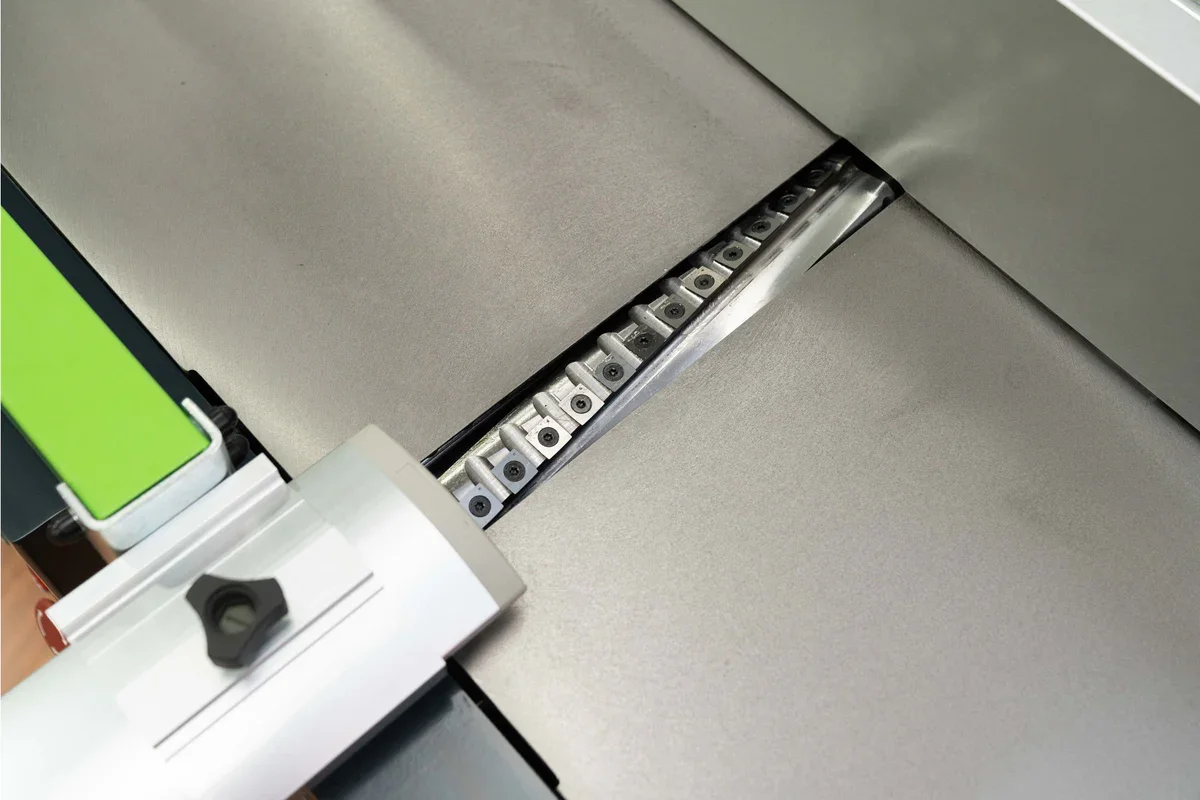

  • Spiral Head Cutter Block

  • Thicknessing Capacity is 4mm-225mm x 310mm width

  • Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration

  • Feed Rollers On / Off Lever


SPECIFICATIONS

SKU                8900080

Part Number                   PT260B

Size                  260mm (10")

Power Source            240V 50Hz Single Phase

Motor Power (Output)          3HP (2.2kW)

Feed Speed 7m / Min

Cutting Capacity - Height 225mm

Maximum cutting depth 4mm (5/32")

Table size 545 x 307mm (Thicknesser)

Blade - Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)

Blade - Cutter Head Block - Diameter 70mm

Blade - Cutter Head Block Speed (RPM) 5500

Blade - Cutter Head Block - No. of Blades / Tips 56

Dust Hose Inlet Diameter 100mm

Product Weight (Net Weight) 175kg

Shipping Length 1480mm

Shipping Width 570mm

Shipping Height 1130mm

Shipping Weight (Gross) 217kg
