Surfacing lumber to a specific thickness requires a machine that has plenty of power to remove a lot of material from oversized lumber, especially if the boards are wide and hardwood. TH410A with spiral head cutters has proven that it can handle these conditions and reduce smooth surfaces that required little sanding before finishing.


SPECIFICATIONS

SKU                8000843

Part Number                   TH410A

Size                  410mm (16")

Motor Power (Output)          4HP

Feed Speed 6.5m / Min

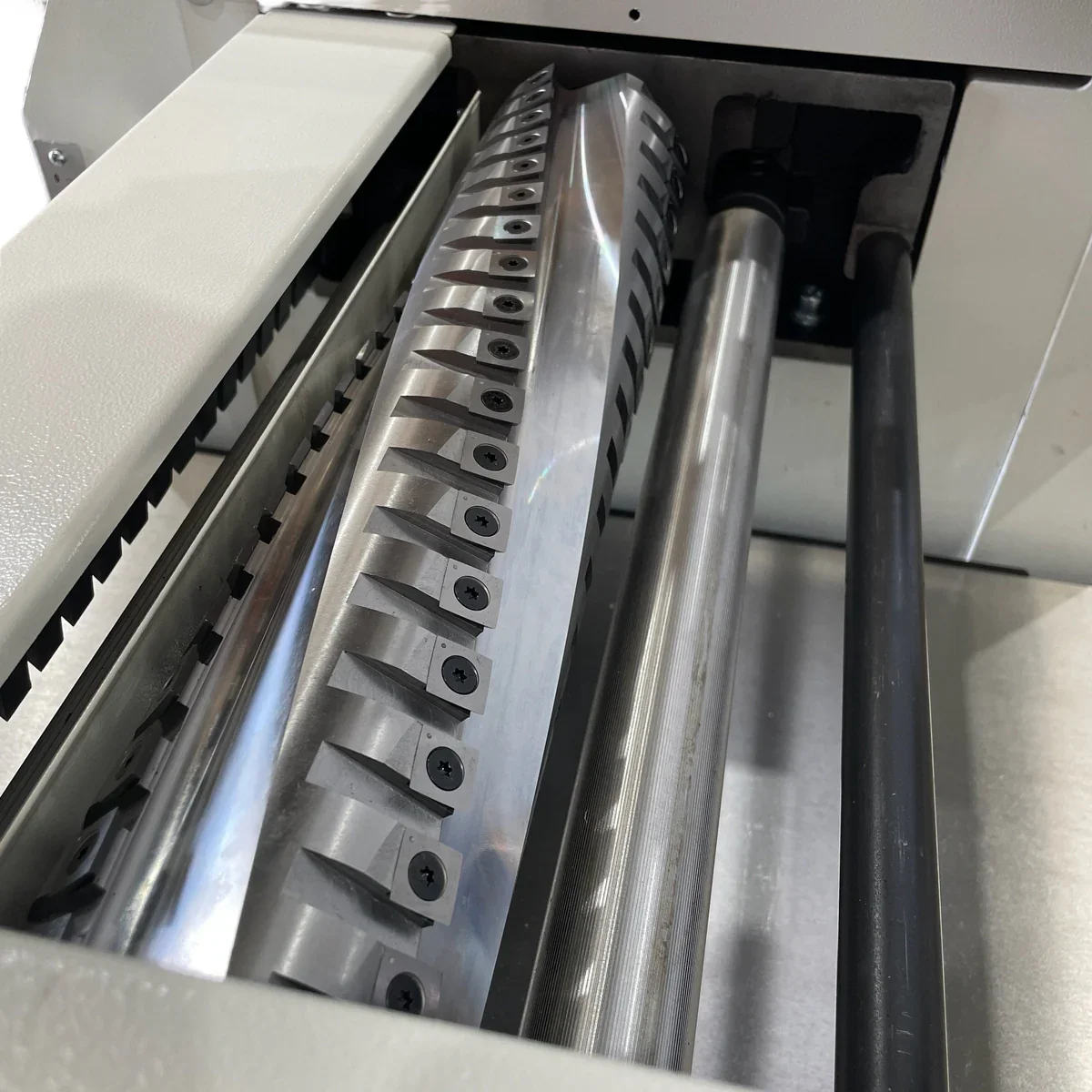

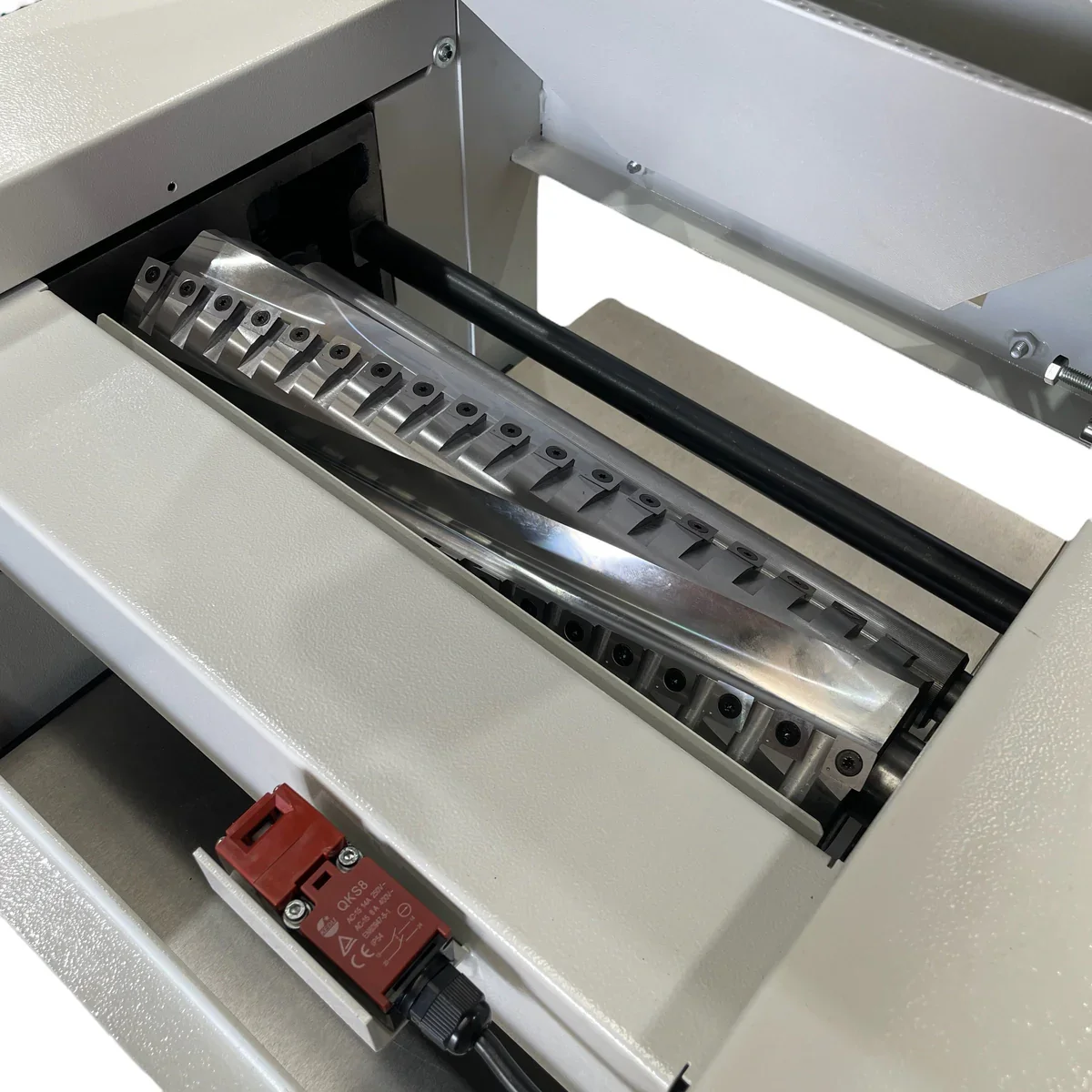

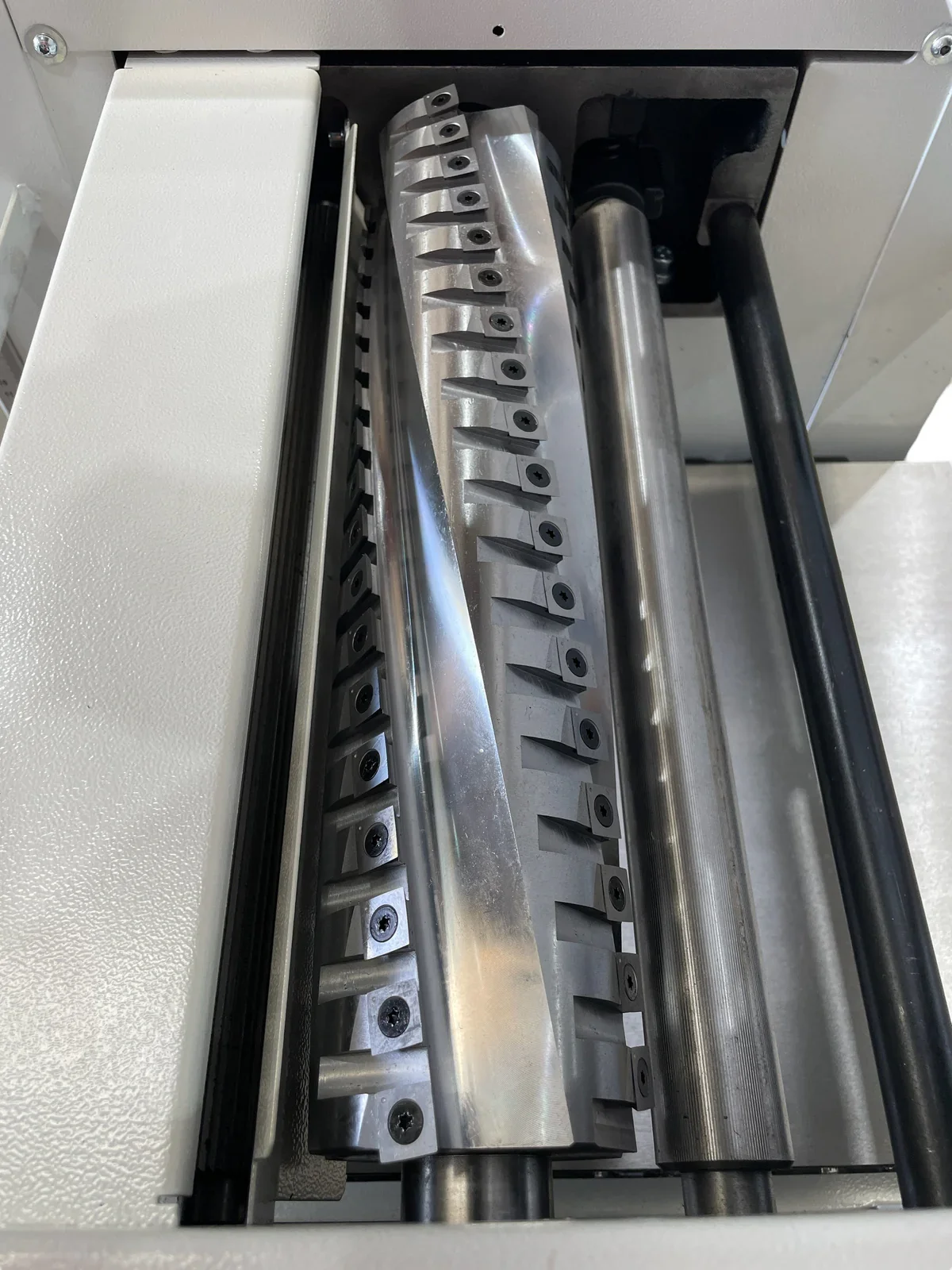

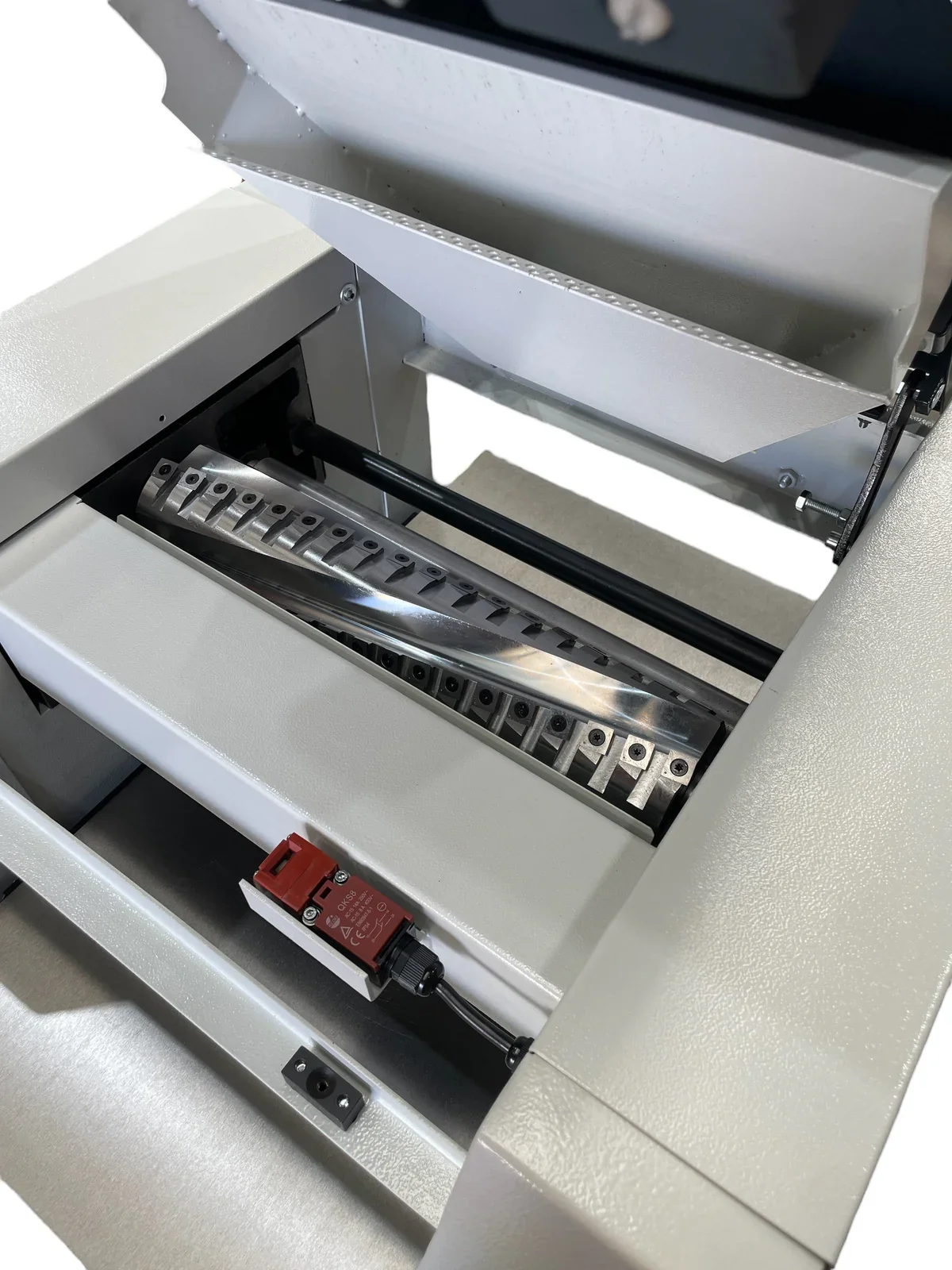

Blade Type Spiral Head Cutter Block

Cutting Capacity - Height 220mm

Maximum cutting depth 4mm (5/32")

Table size 750mm x 408mm

Material (Stock) - Maximum Width 405mm

Material (Stock) - Maximum Height 220mm

Blade- Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)

Blade - Cutter Head Block - Diameter 97mm

Blade - Cutter Head Block - Rows 4

Blade - Cutter Head Block Speed (RPM) 4200

Blade - Cutter Head Block - No. of Blades / Tips 72

Dust Hose Inlet Diameter 120mm

Product Weight (Net Weight) 240kg

Shipping Length 75cm

Shipping Width 85cm

Shipping Height 114cm

Shipping Weight (Gross) 280kg
