The Woodfast TH530B Industrial Thicknesser is the latest evolution in the Woodfast legacy — a machine born from decades of Australian research and development, refined through real-world feedback from our service technicians and woodworking professionals.
Designed for heavy-duty industrial use, the TH530B delivers outstanding performance with its 530mm (21") planing width, 7.5HP 415V motor, and spiral head cutter block. Whether you’re processing solid hardwoods or wide panels, the result is consistently smooth, accurate, and quiet.
Features
New Touch Screen Display Panel (2025 upgrade from TH530A model) – intuitive, easy-to-read control panel for quick, accurate adjustments.
Australian-designed and locally refined – developed through ongoing R&D and feedback from Woodfast’s Australian technician team.
Spiral head cutter block – produces a superior surface finish, reduced tear-out, and quieter operation.
Variable feed speeds – optimises finish and feed rate across different materials.
Electronic table adjustment with precise positioning control – ensures repeatable thicknessing accuracy.
Spring-loaded pressure bar and double outfeed rollers – reduce vibration and maintain consistent feed through the cutter block.

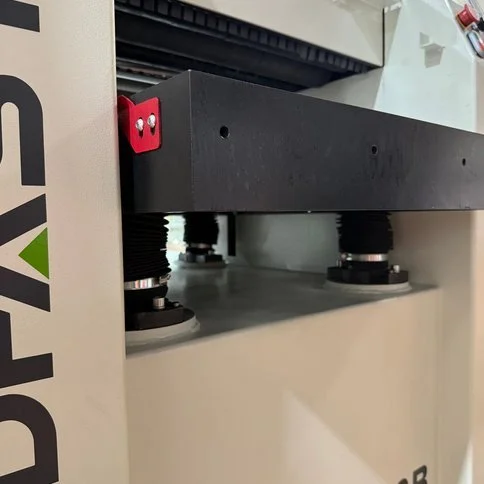

Robust 4-column table support system – guarantees stability and alignment under load.
Wide 530mm (21") planing capacity – perfect for large-scale joinery, cabinetry, and timber processing.
Heavy-duty cast-iron construction – ensures stability, strength, and long-term accuracy.
Minimum working table height: 600mm – designed for ergonomic use and operator comfort.
Efficient dust extraction port – promotes a cleaner, safer workspace.
SPECIFICATIONS
Model TH530B
Size 530mm (21")
Power Source 415V 50Hz Three Phase
Feed Speed 6.5m / Min
Blade Type Spiral Head Cutter Block
Cutting Capacity - Height 220mm
Maximum cutting depth 4mm (5/32")
Table size 750mm x 530mm
Blade- Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter 97mm
Blade - Cutter Head Block - Rows 4
Blade - Cutter Head Block Speed (RPM) 4200
Blade - Cutter Head Block - No. of Blades / Tips 72
Dust Hose Inlet Diameter 120mm
Shipping Weight (Gross) 526kg
