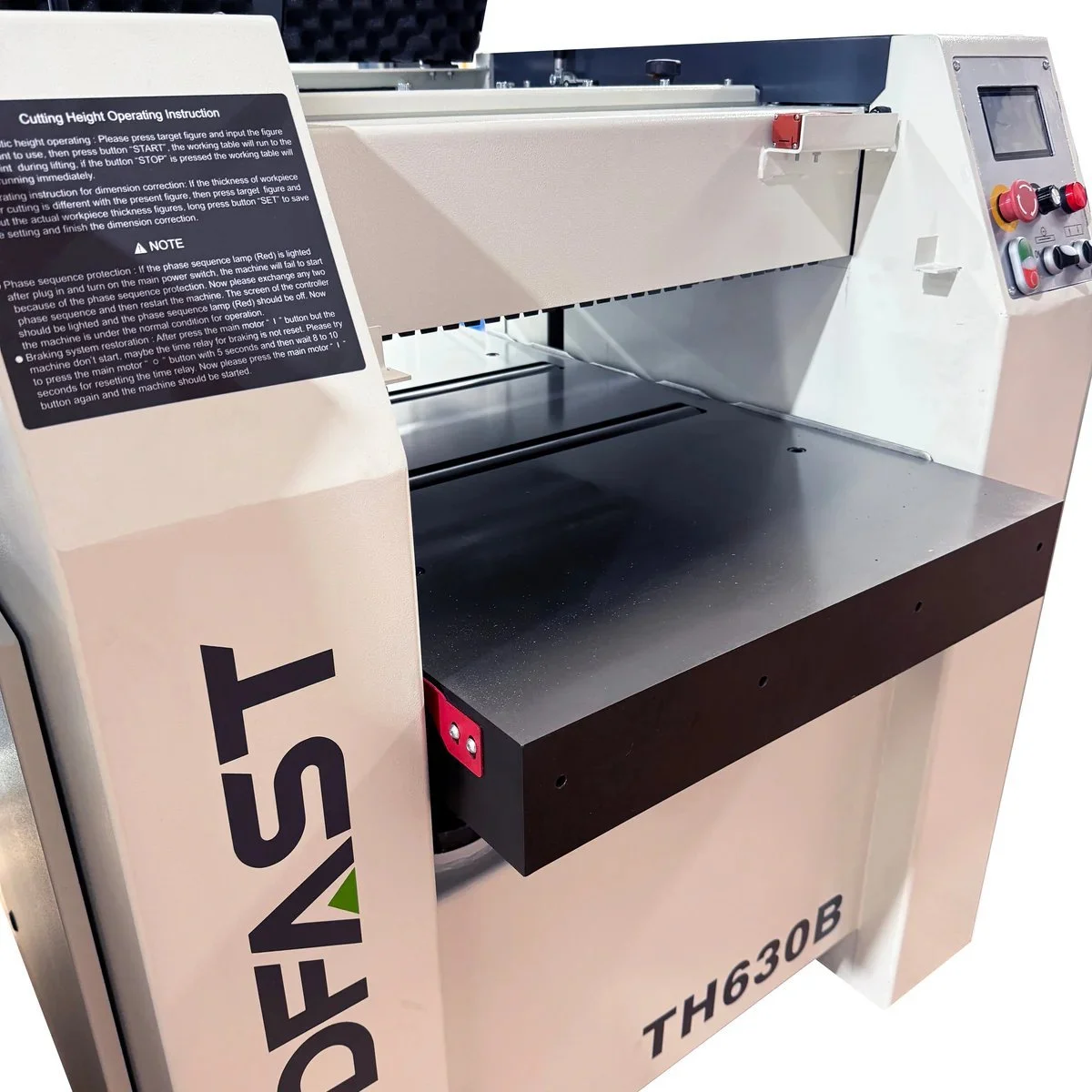

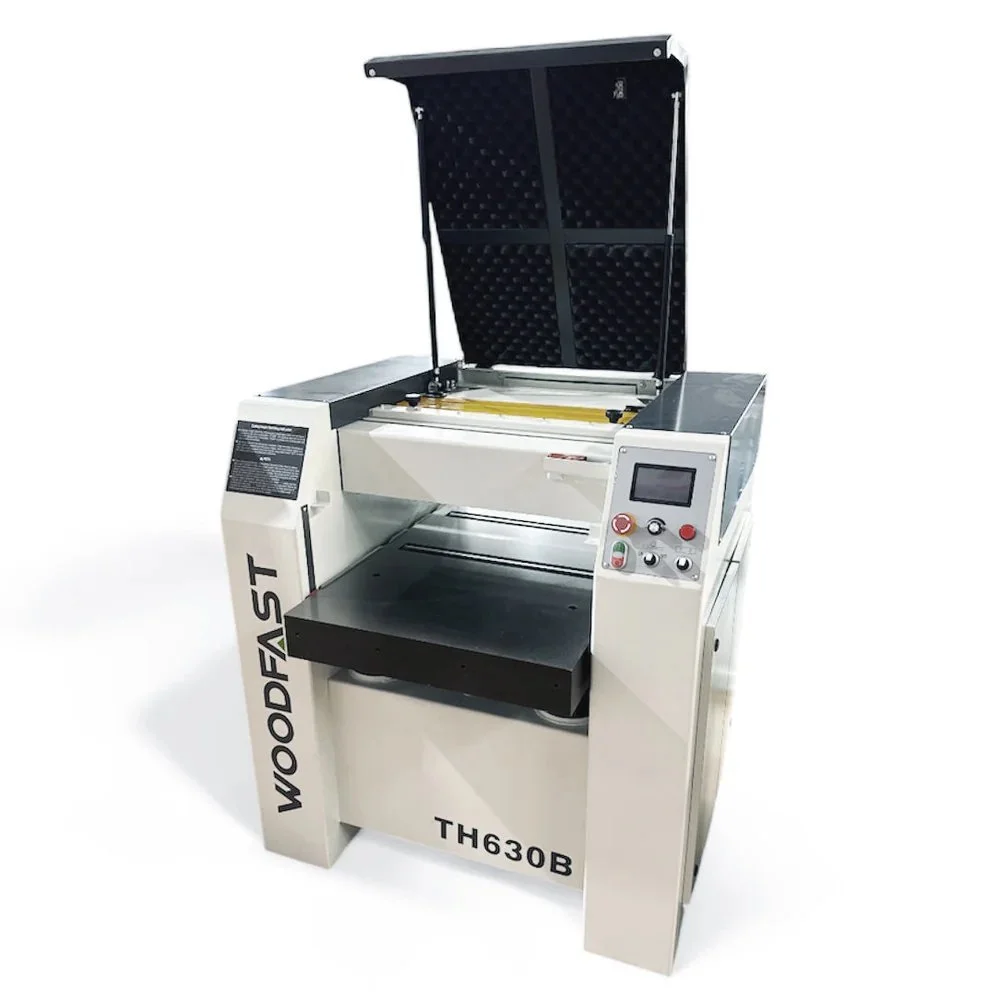

The Woodfast TH630B Industrial Thicknesser is the latest evolution in the Woodfast legacy — a machine born from decades of Australian research and development, refined through real-world feedback from our service technicians and woodworking professionals.

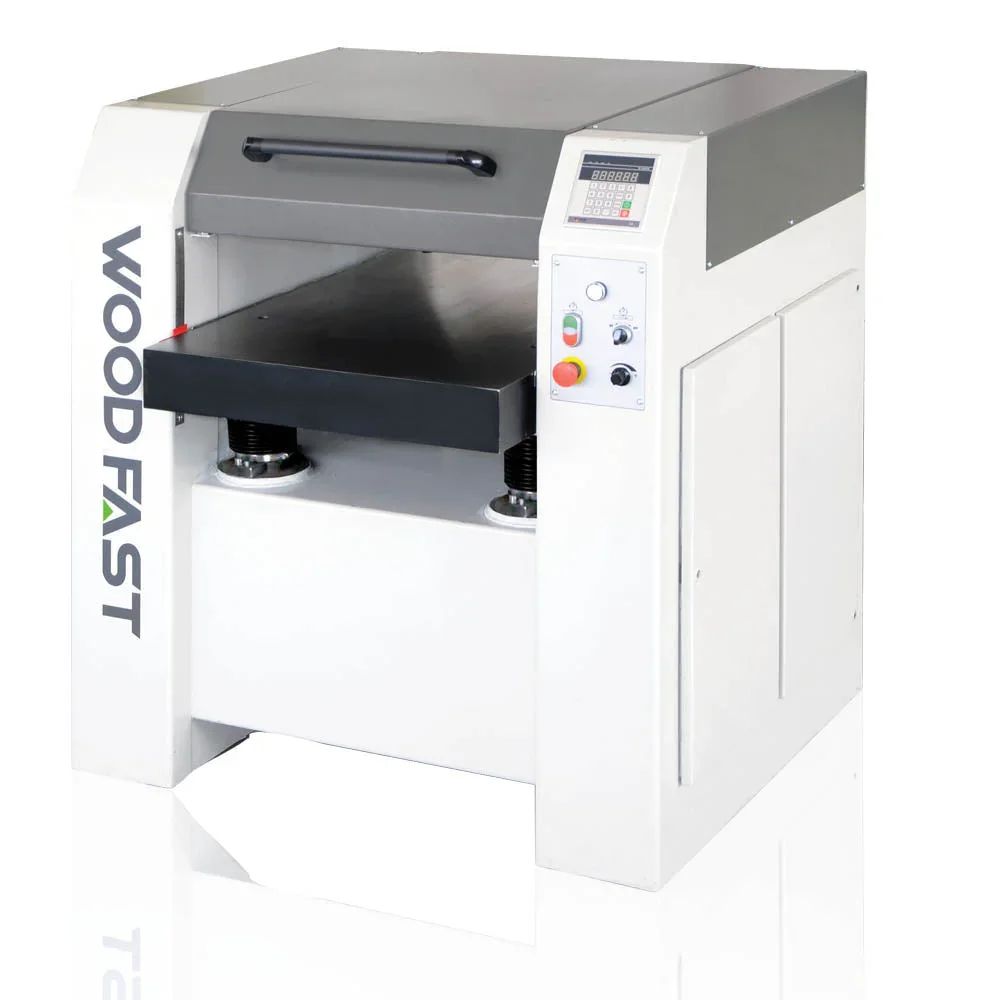

Superseding the TH630A in 2025, the TH630B introduces a modern Touch Screen Display Panel that delivers precise digital control and effortless adjustment. This upgrade enhances usability and accuracy, combining Woodfast’s proven engineering strength with today’s digital innovation.

Designed for heavy-duty industrial use, the TH630B delivers outstanding performance with its 630mm (25") planing width, 10HP 415V motor, and spiral head cutter block. Whether you’re processing solid hardwoods or wide panels, the result is consistently smooth, accurate, and quiet.

Features

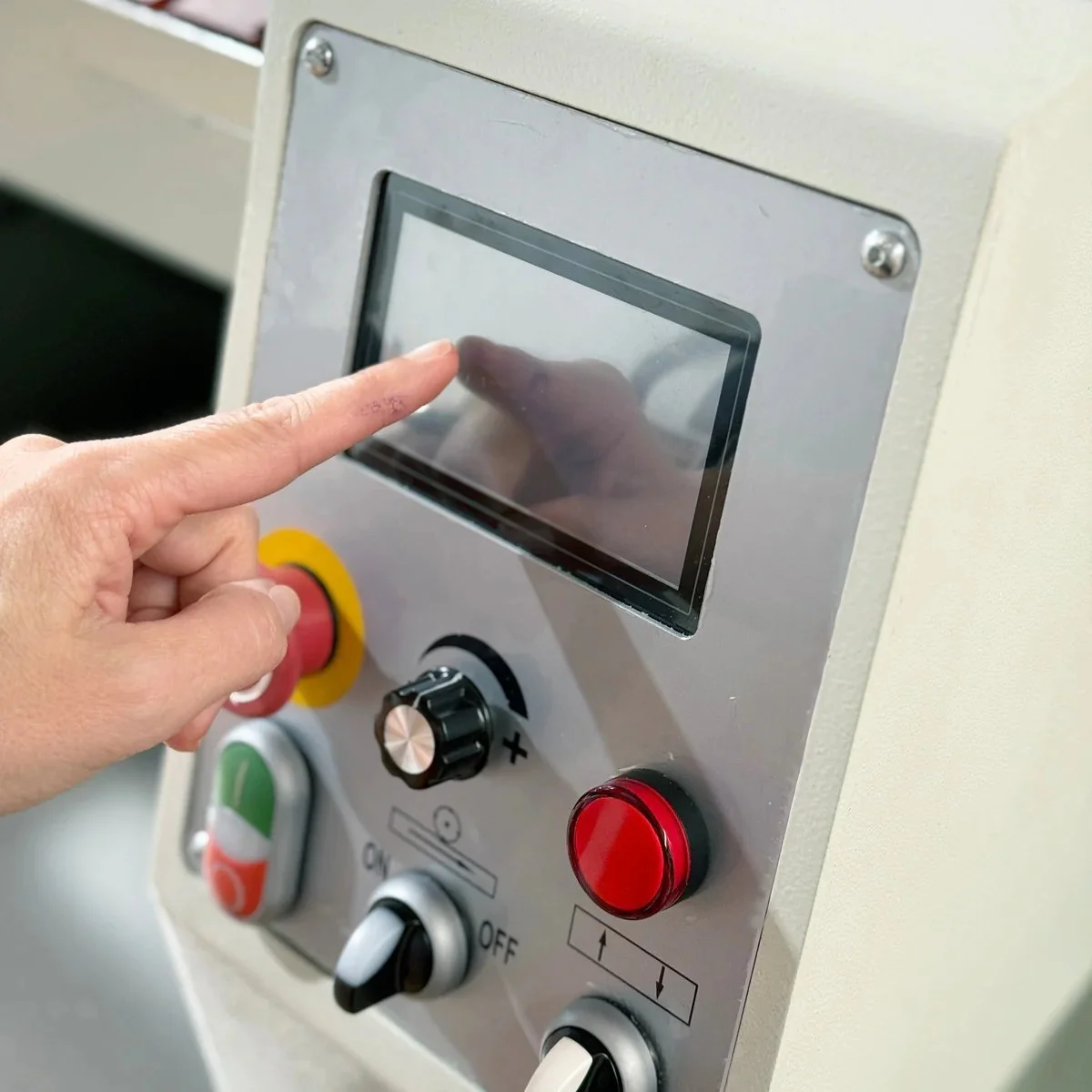

• New Touch Screen Display Panel (2025 upgrade from TH630A model) – intuitive, easy-to-read control panel for quick, accurate adjustments.

• Australian-designed and locally refined – developed through ongoing R&D and feedback from Woodfast’s Australian technician team.

• Spiral head cutter block – produces a superior surface finish, reduced tear-out, and quieter operation.

• Variable feed speeds – optimises finish and feed rate across different materials.

• Electronic table adjustment with precise positioning control – ensures repeatable thicknessing accuracy.

• Spring-loaded pressure bar and double outfeed rollers – reduce vibration and maintain consistent feed through the cutter block.

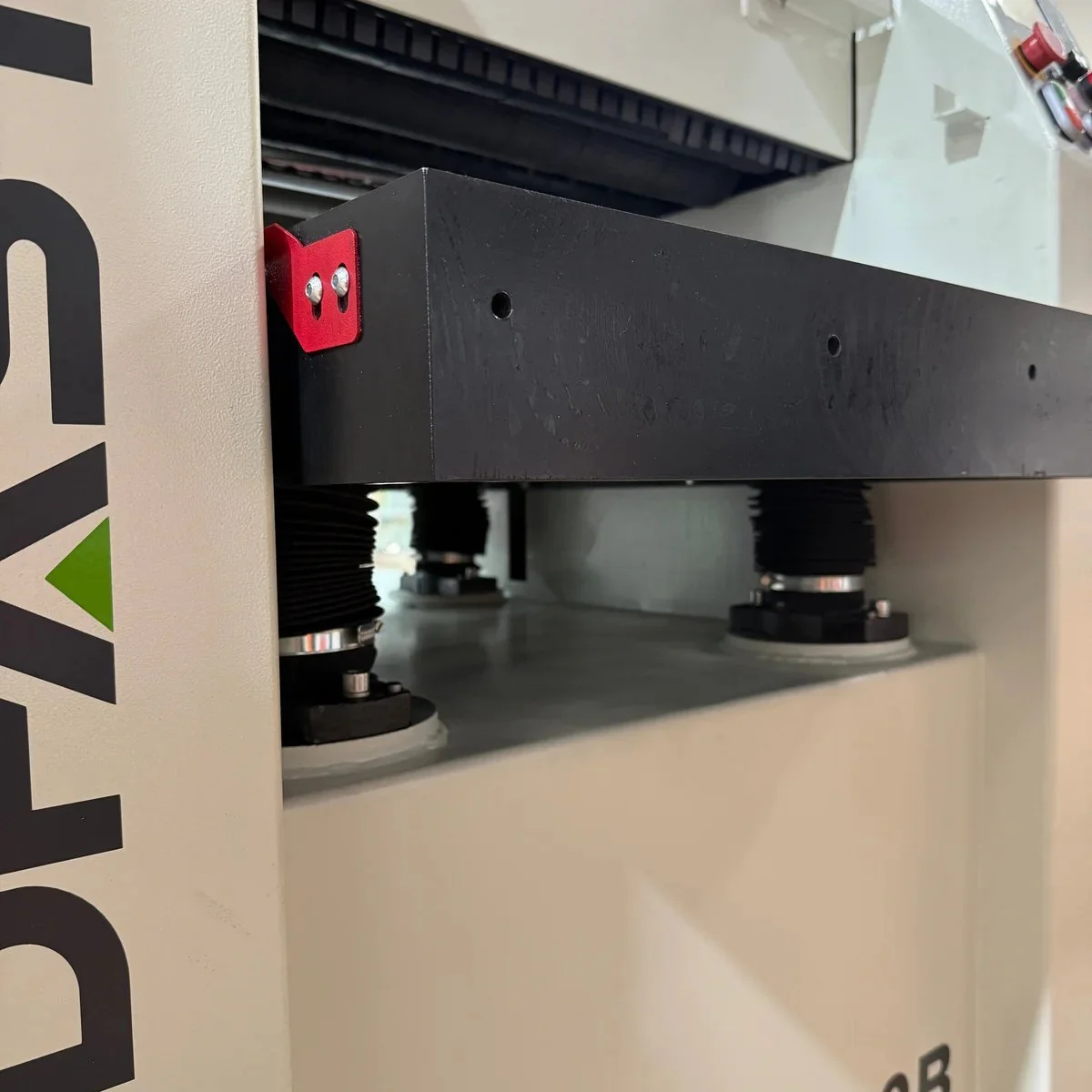

• Robust 4-column table support system – guarantees stability and alignment under load.

• Wide 630mm (25") planing capacity – perfect for large-scale joinery, cabinetry, and timber processing.

• Heavy-duty cast-iron construction – ensures stability, strength, and long-term accuracy.

• Minimum working table height: 600mm – designed for ergonomic use and operator comfort.

• Efficient dust extraction port – promotes a cleaner, safer workspace.

---

SPECIFICATIONS

Model                   TH630B

Size                  630mm (25")

Power Source          415V 50Hz Three Phase

Blade Type Spiral Head Cutter Block

Cutting Capacity - Height 300mm

Blade Width 630mm (25")

Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)

Cutter Head Block - Diameter 117mm

Cutter Head Block Speed (RPM) 5500

Cutter Head Block - No. of Blades / Tips 108

Shipping Length 1220mm

Shipping Width 1150mm

Shipping Height 1325mm

Shipping Weight (Gross) 667kg
