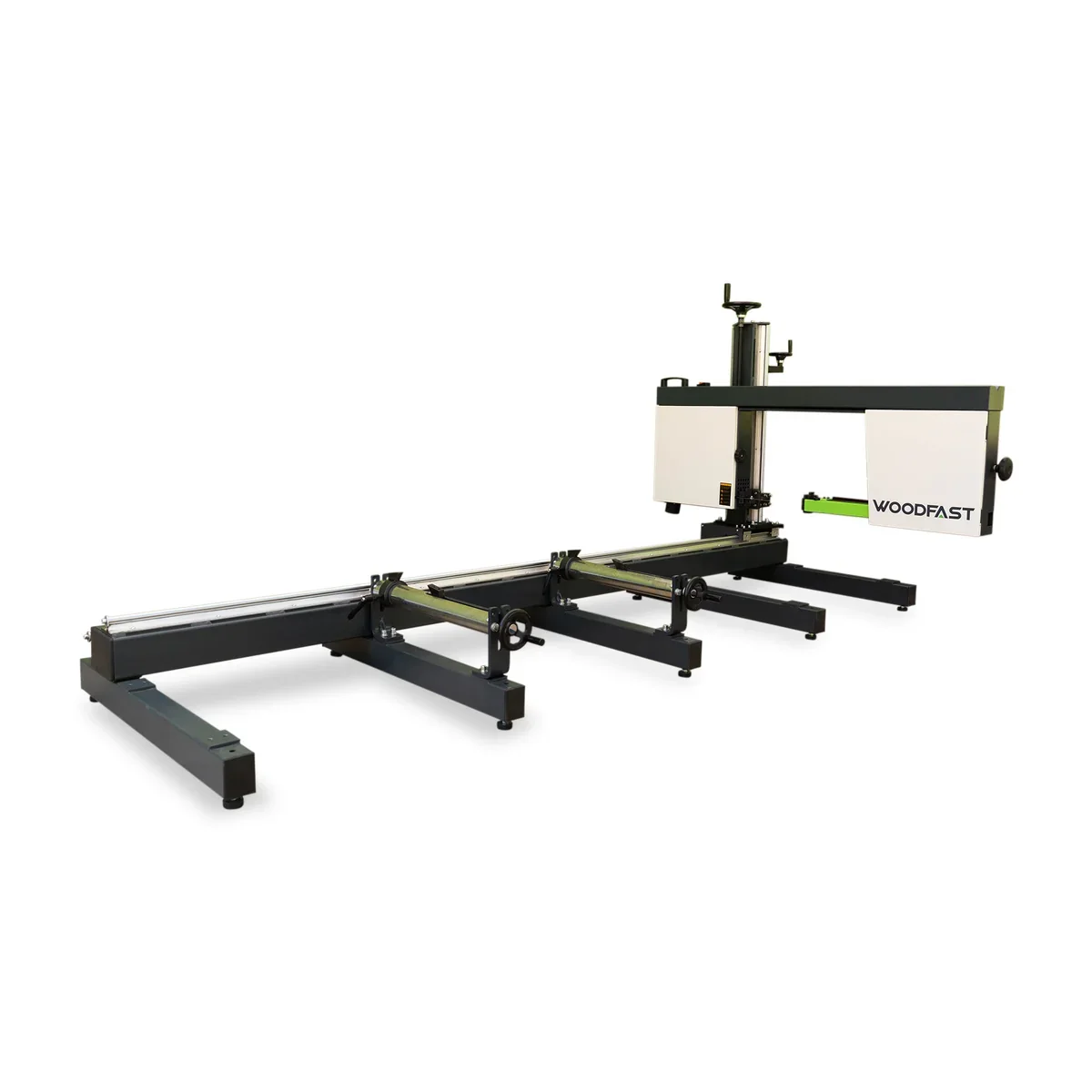

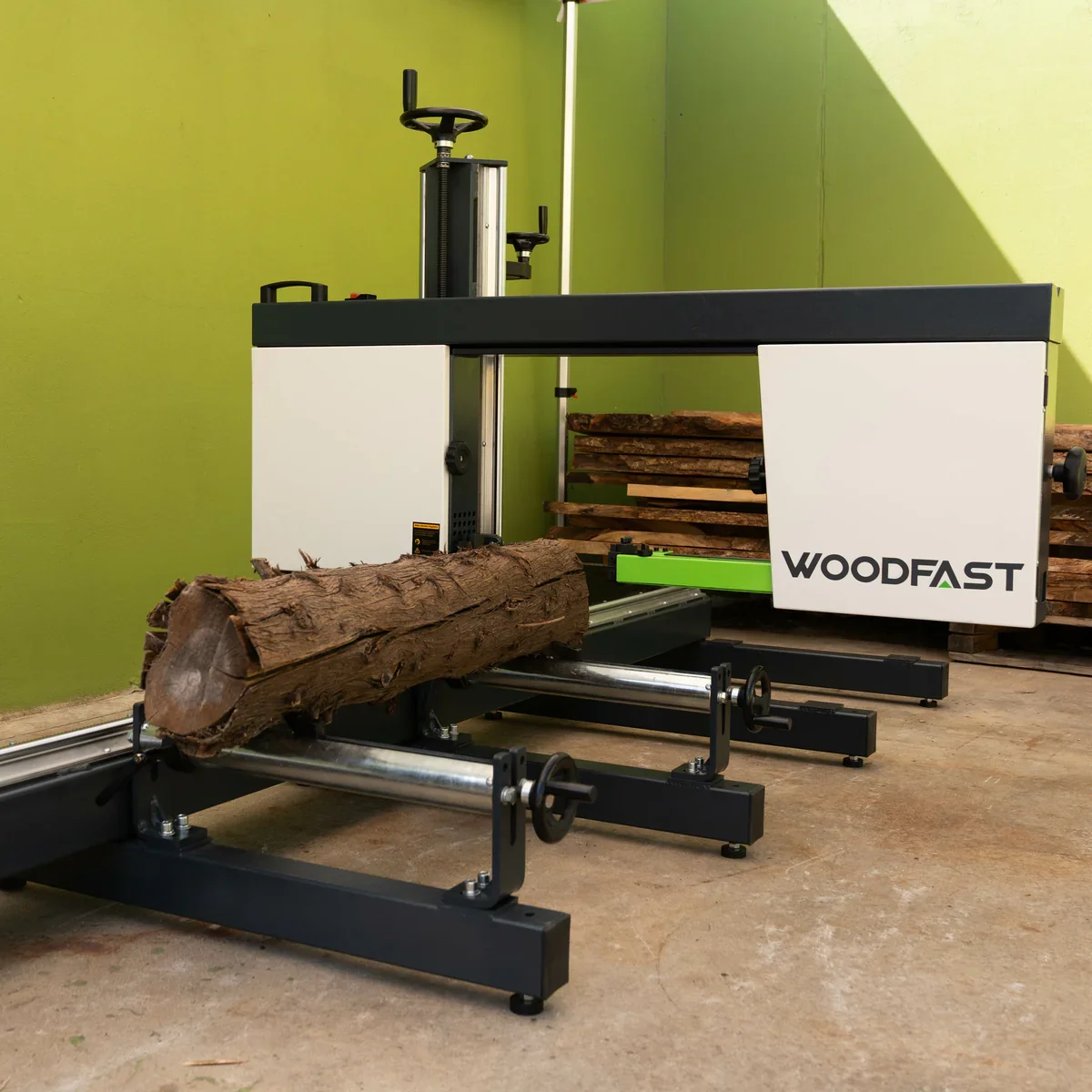

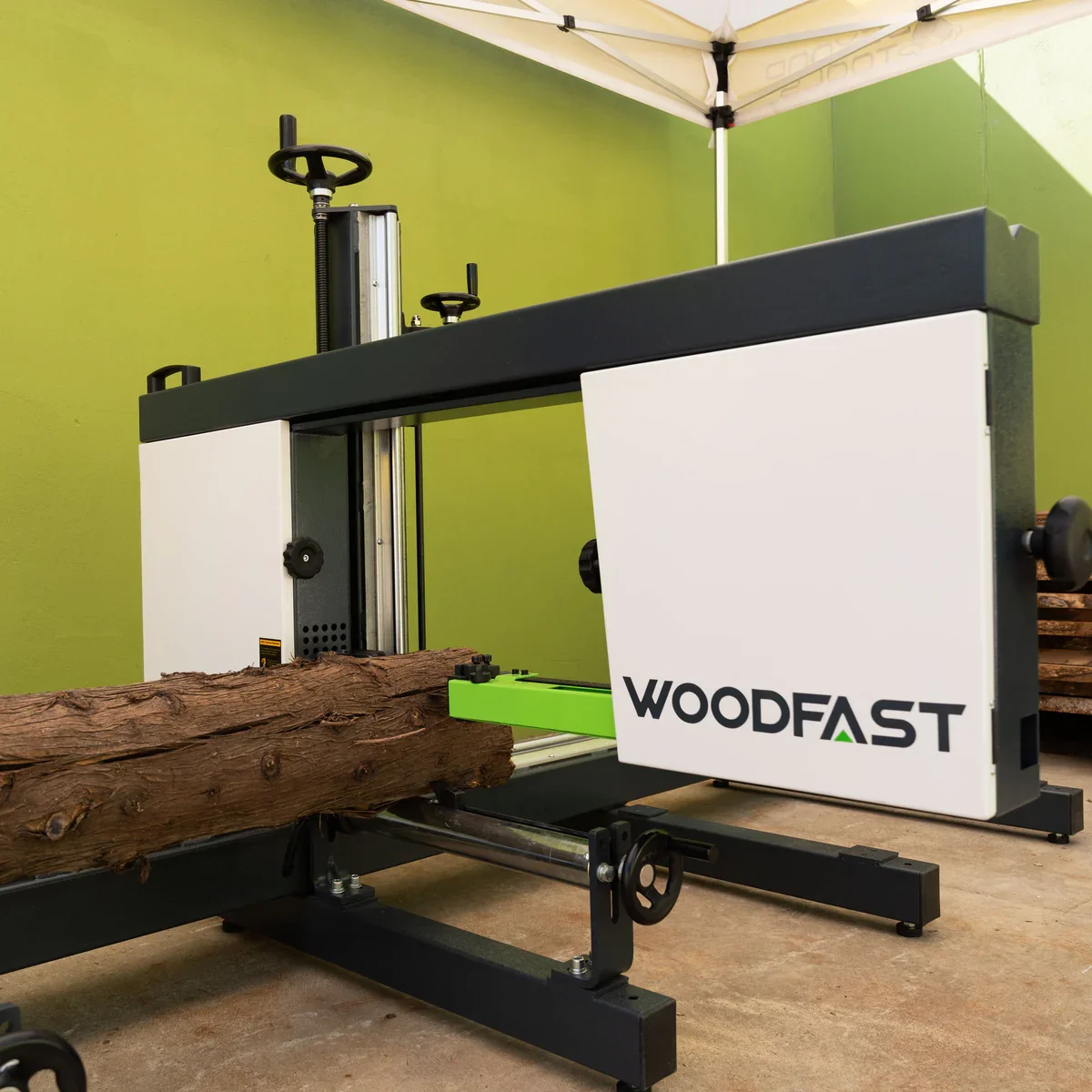

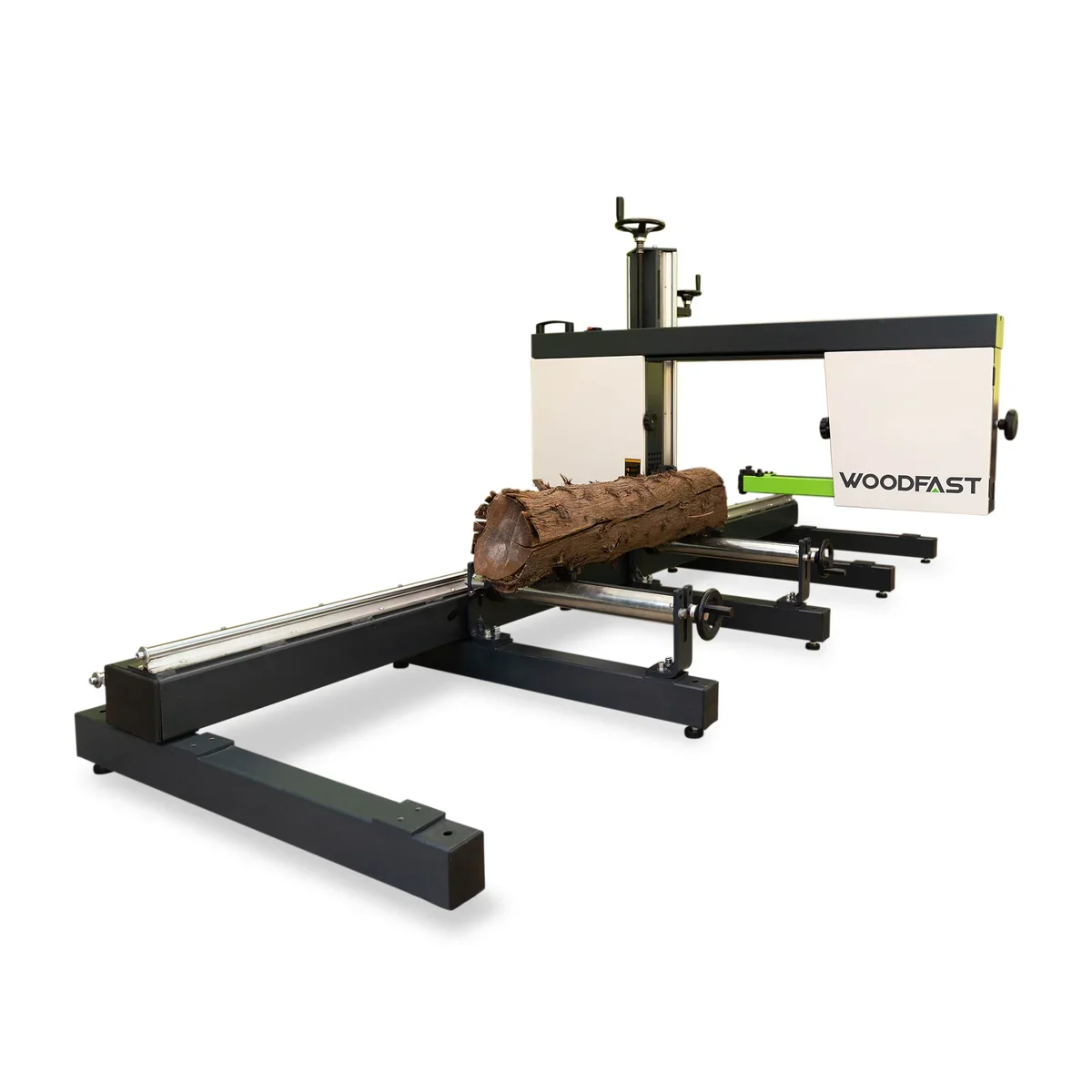

The Woodfast HB350B Saw Mill is the perfect choice for budget-conscious individuals eager to begin milling their own lumber. Offering exceptional value at an affordable price, this sawmill is designed for hobby sawyers who want a reliable, easy-to-use solution. With the ability to mill logs up to 40cm in diameter and 2.4 meters in length, the HB350B is the ideal option for those starting their woodworking journey.


ADVANTAGES

  • The HB350B works just like a professional sawmill, but with a compact design ideal for smaller spaces.

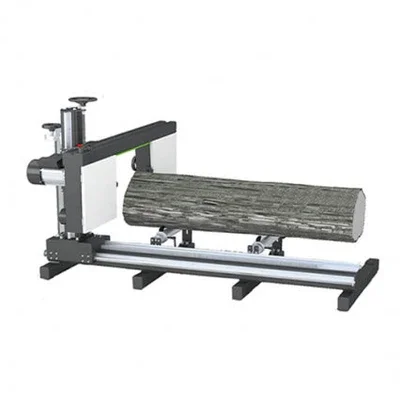

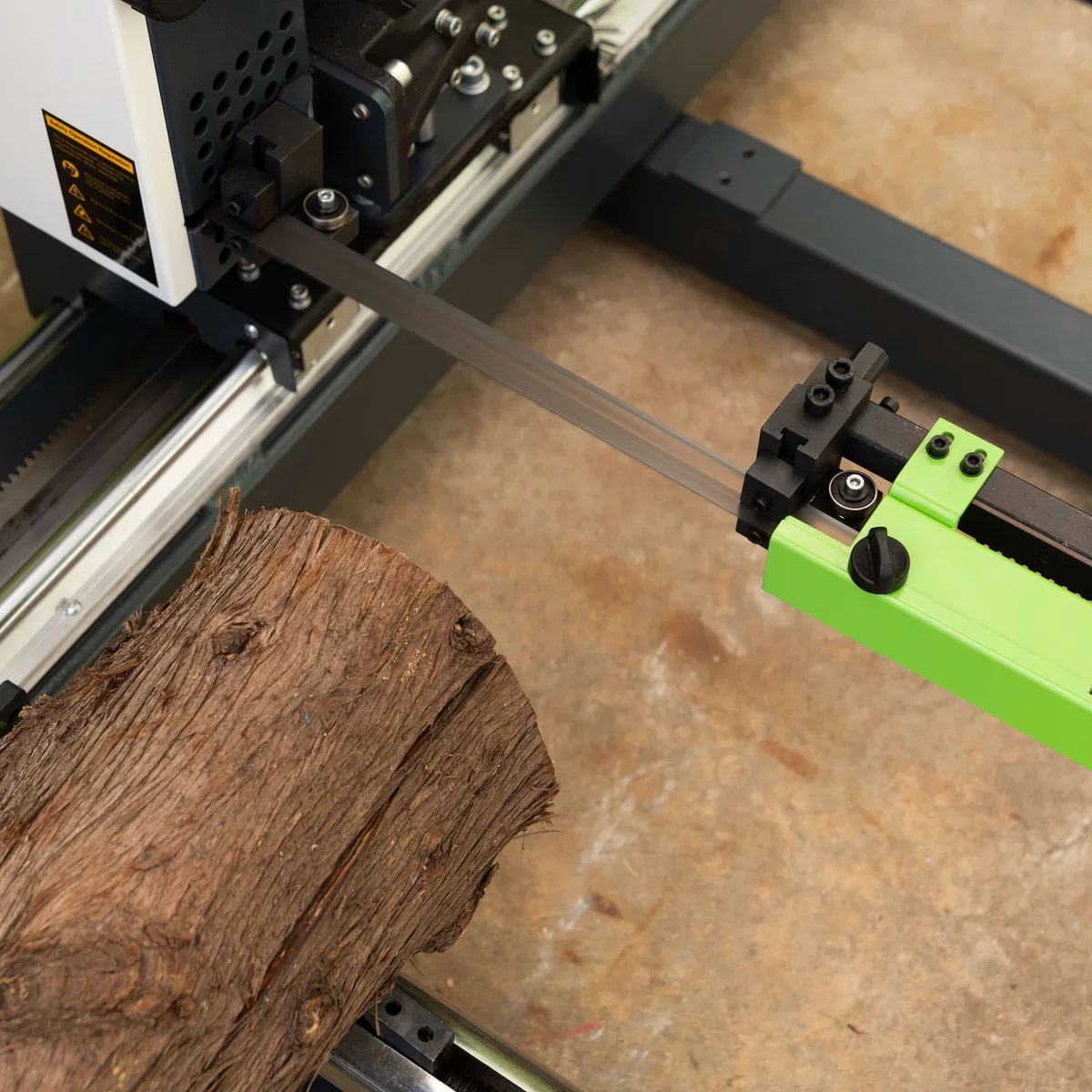

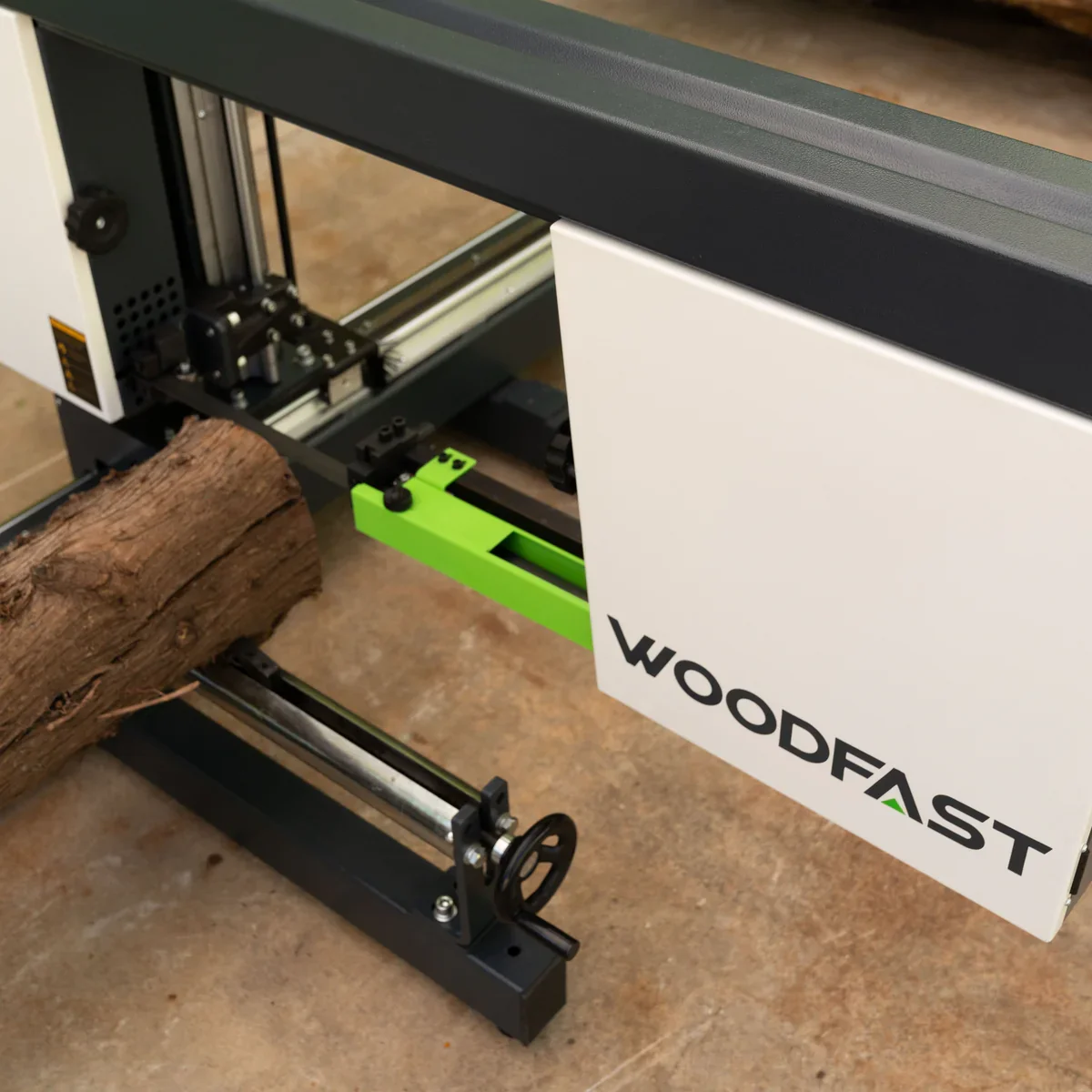

  • The log stays stationary while the saw head moves along its length, allowing you to slice boards with precision at your chosen height.

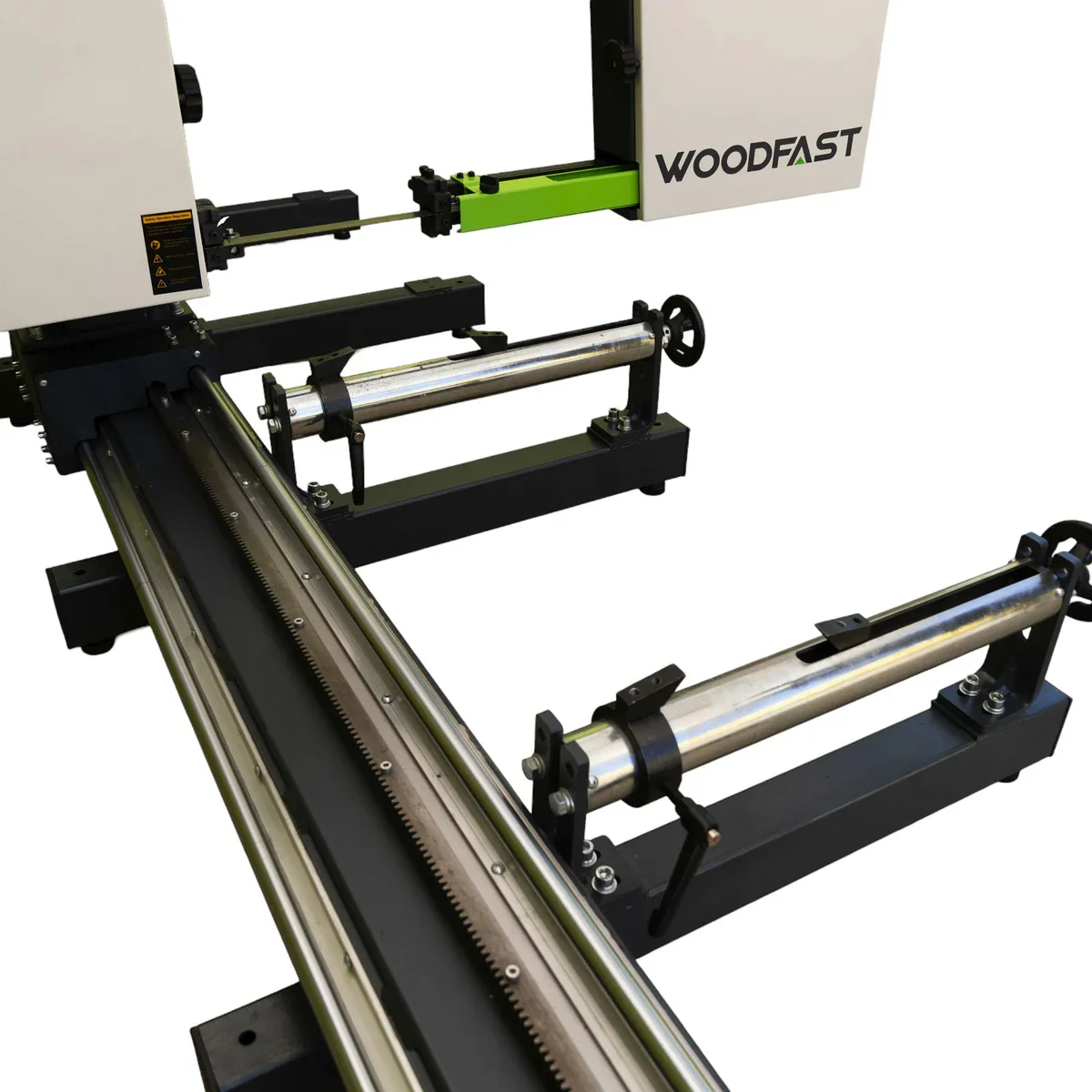

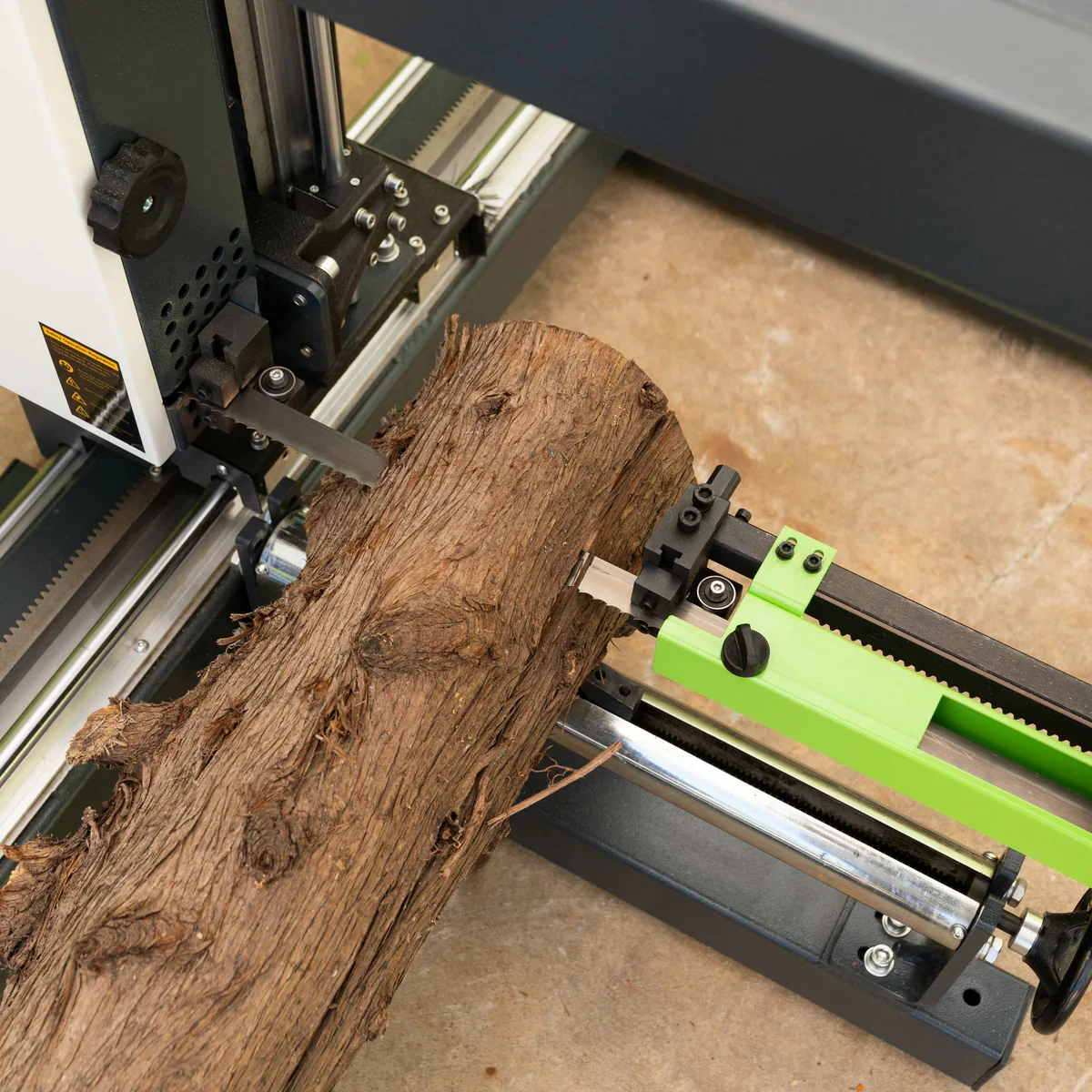

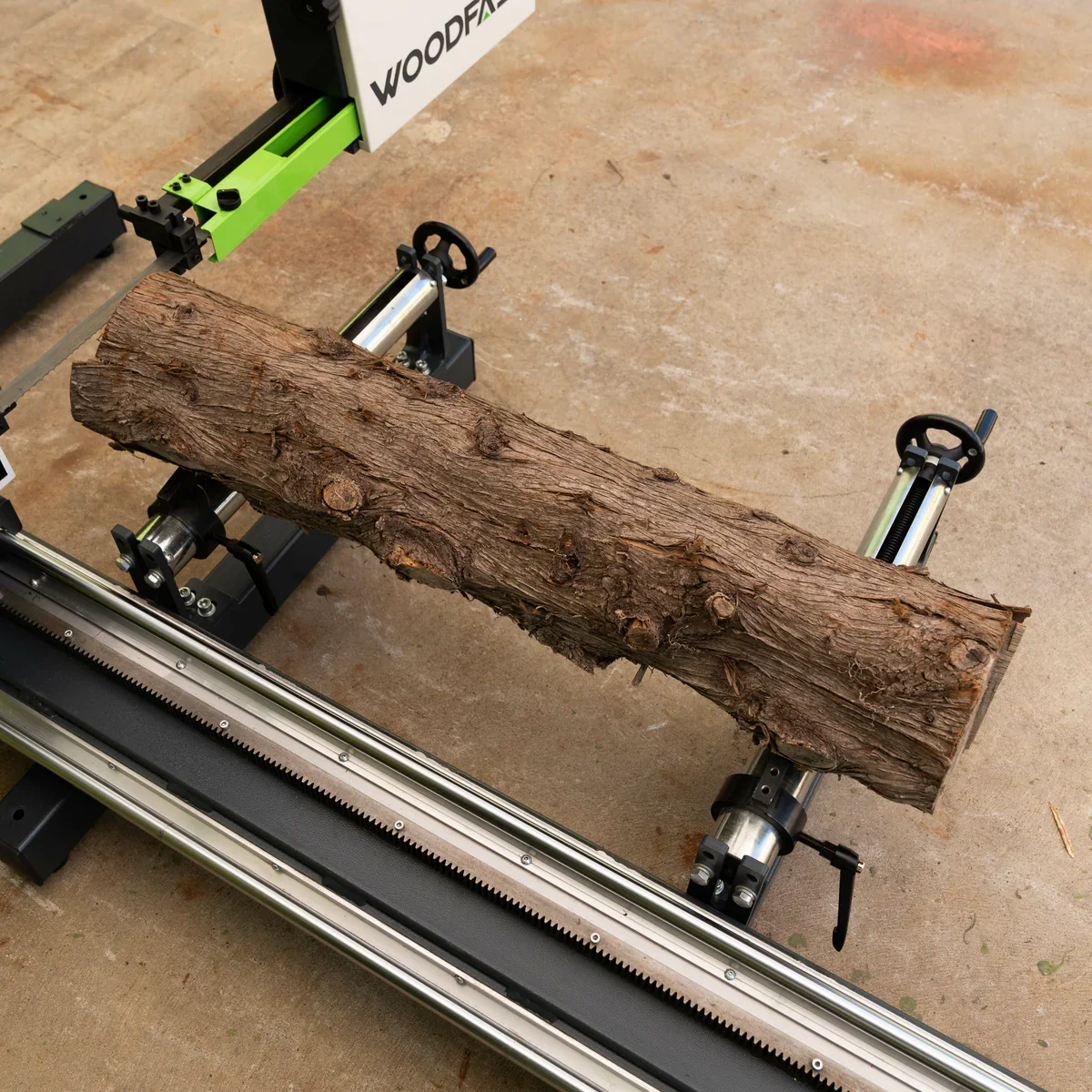

  • The sawmill comes standard with two log rest/log dog assemblies that ensure fast dogging and positive locking for easy operation.

  • Back dogs offer an added benefit for quickly clamping beams, cants, and boards, providing more versatility in your milling tasks.

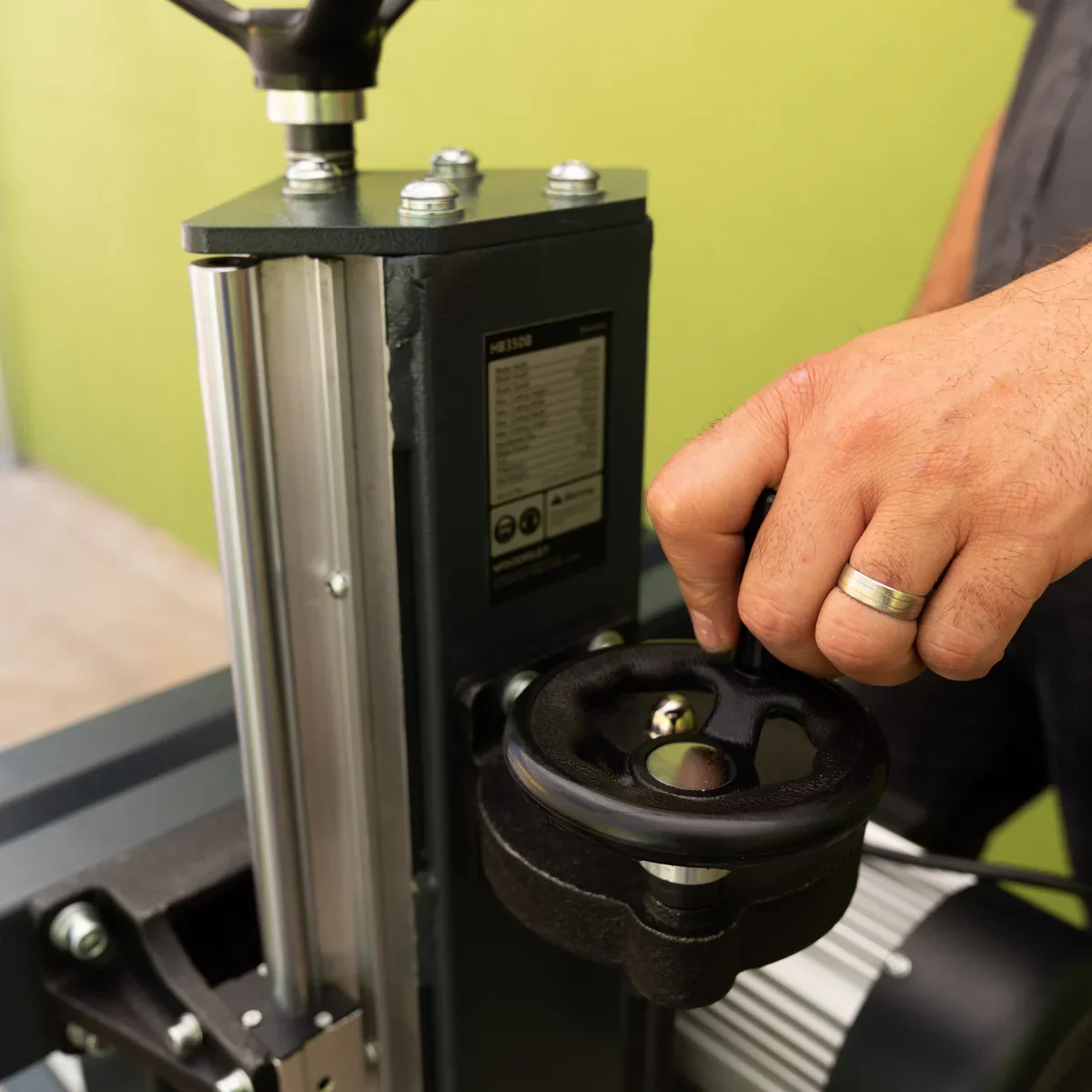

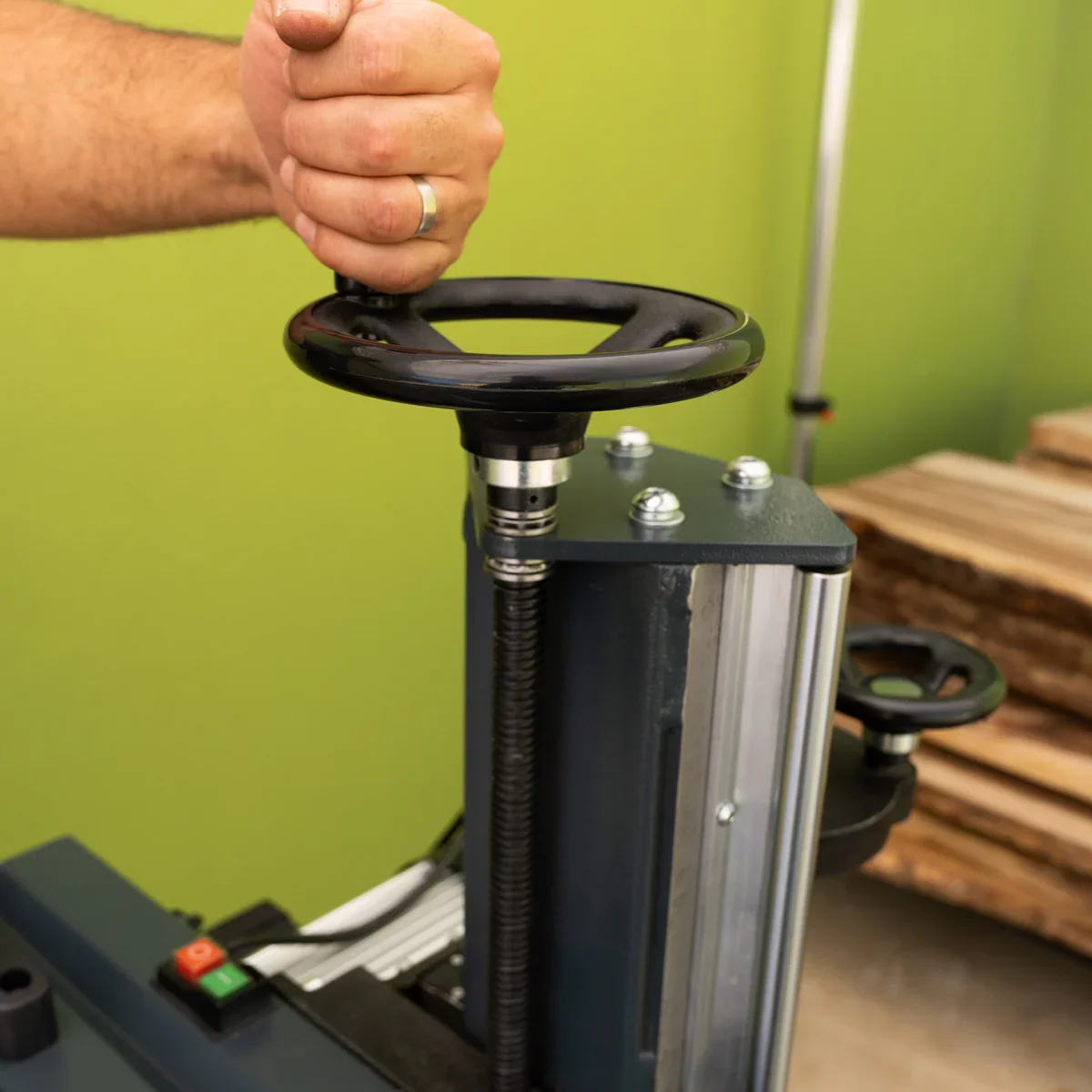

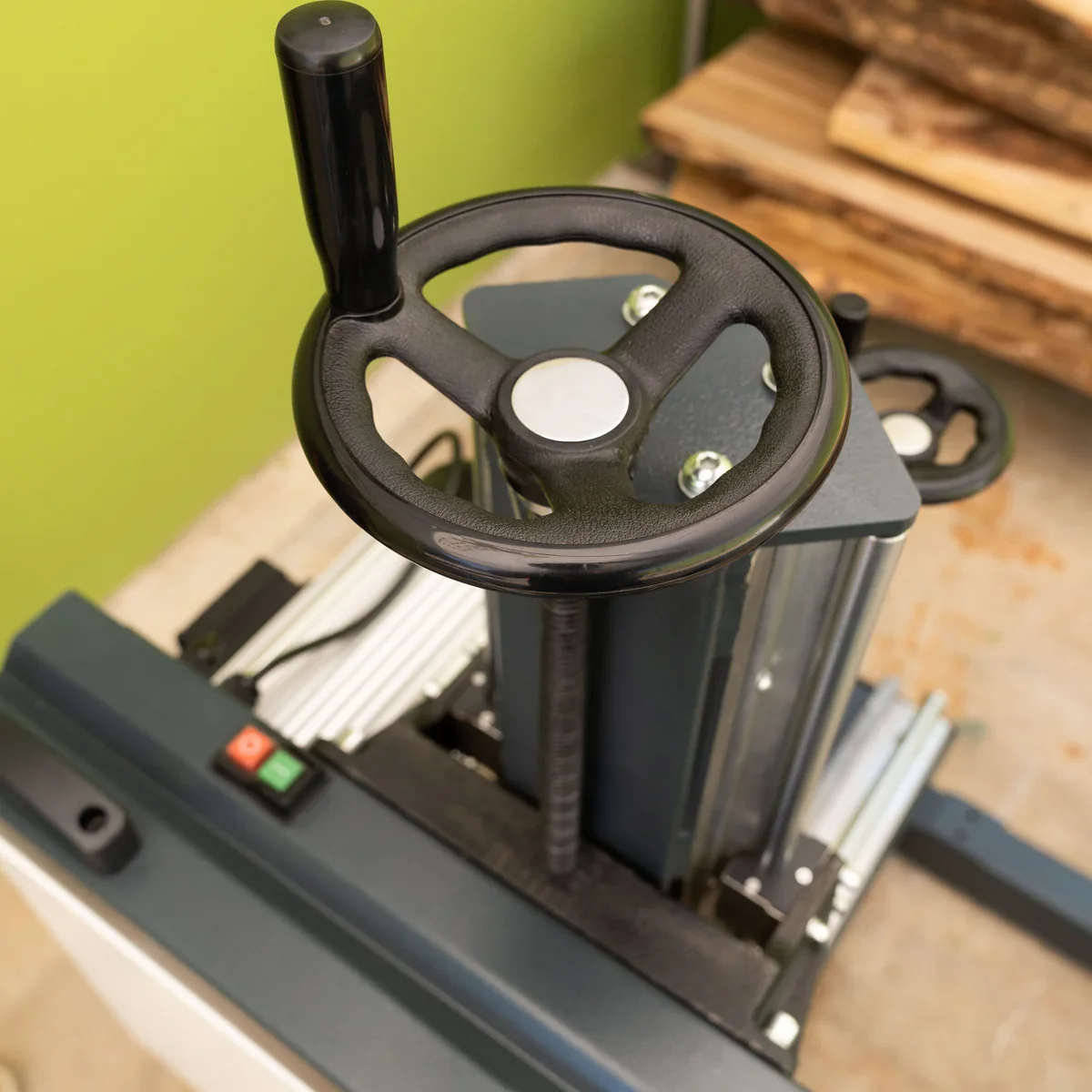

  • The saw head features a smooth crank handle that allows for precise adjustments to the saw head height.

  • Turn the crank clockwise to raise the saw head and counterclockwise to lower it, ensuring accurate cuts with ease.

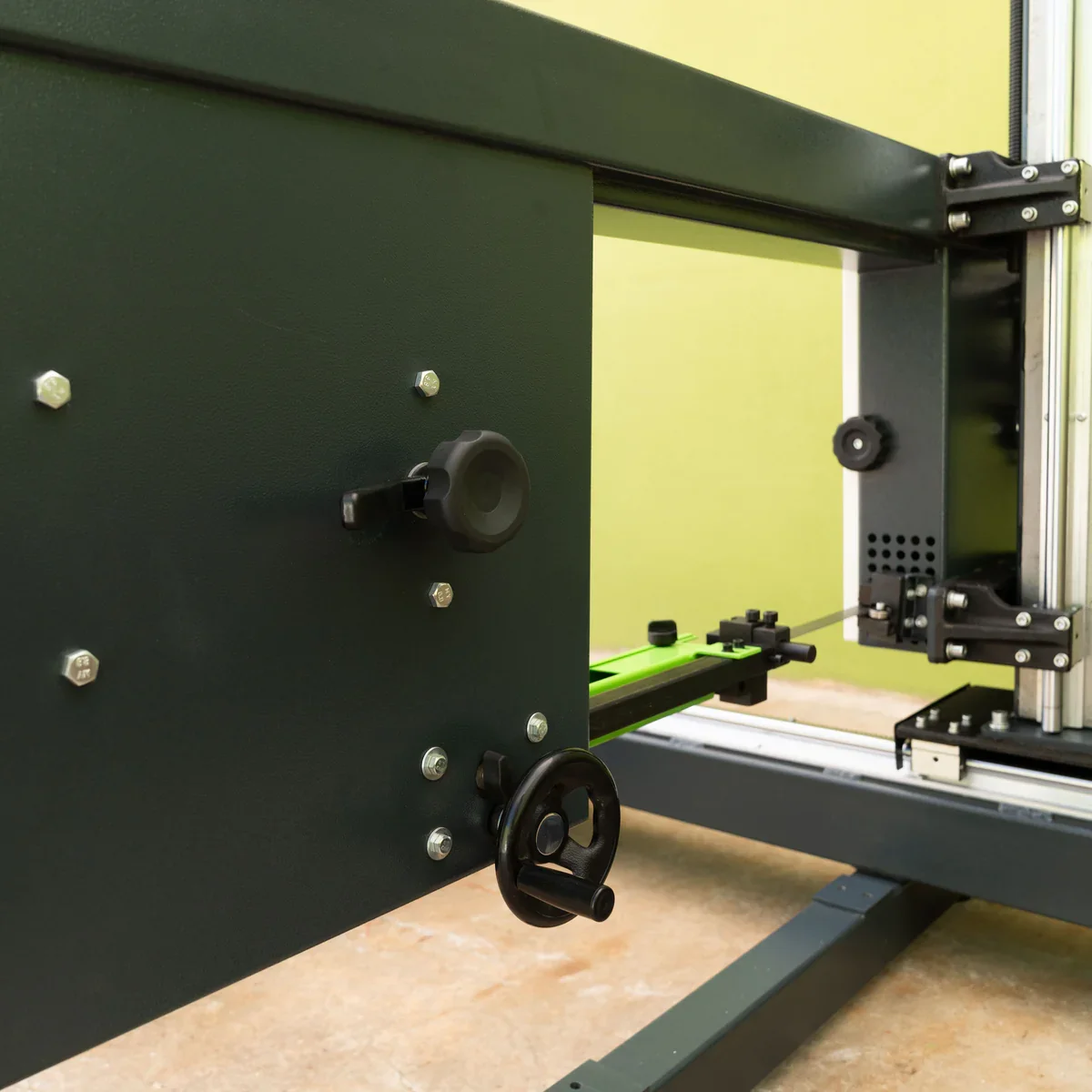

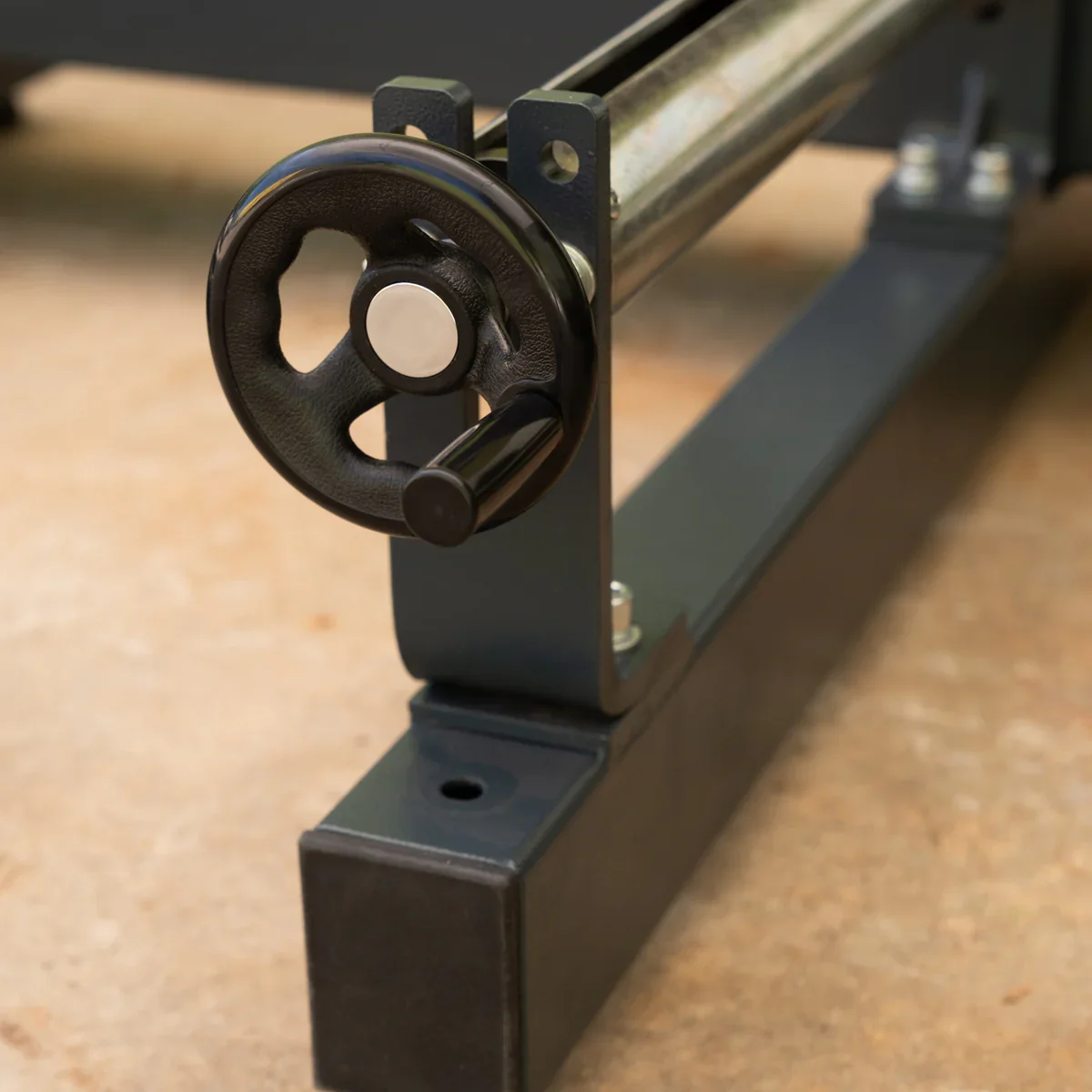

  • The HB350B features a crank feed wheel designed for operator comfort, providing easy control over the milling process for better efficiency.


SPECIFICATIONS

SKU                8723804

Part Number                   HB350B-2.4-3HP(HBS350C)

Size                  2.4m

Power Source          230-240V 50Hz (Single Phase)

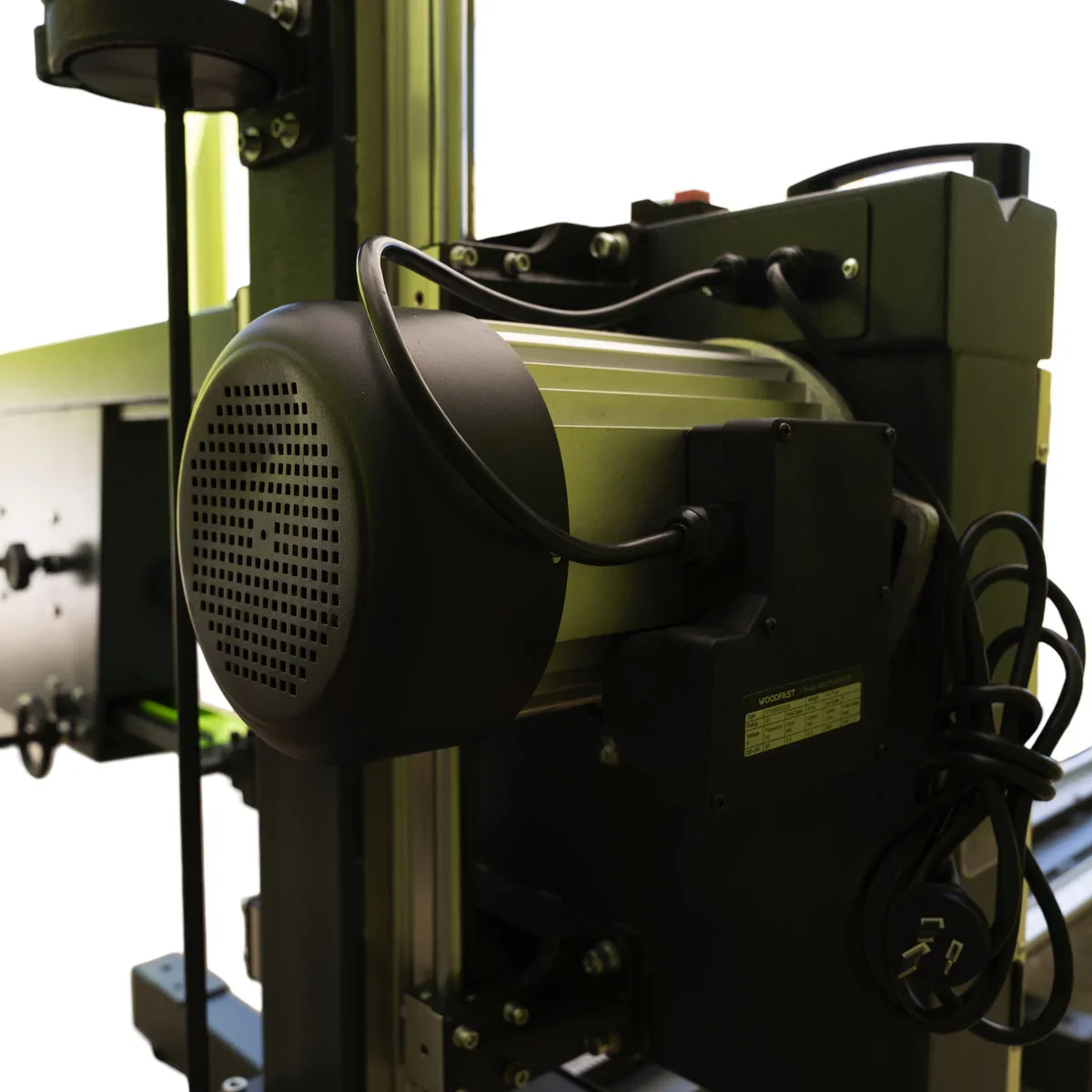

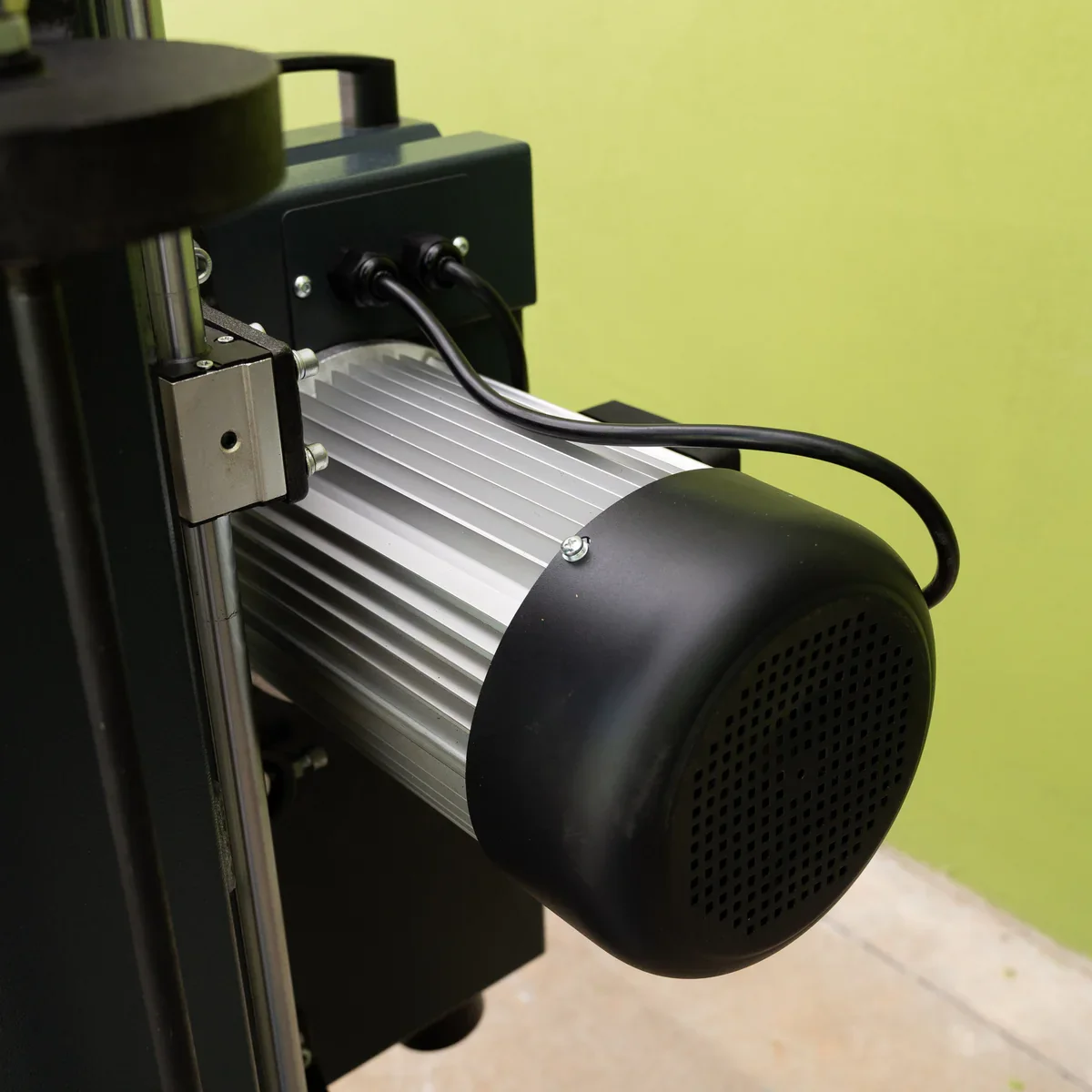

Motor Power (Output) 3HP (2.2kW)

Blade Type Continuous

Blade Length 3114mm

Blade Width 19-26mm

Cutting Capacity - Height 300mm

Cutting Capacity - Length 1500mm

Cutting Capacity - Width 400mm

Throat Capacity 340mm

Blade (Main) - Speed 1040m / min

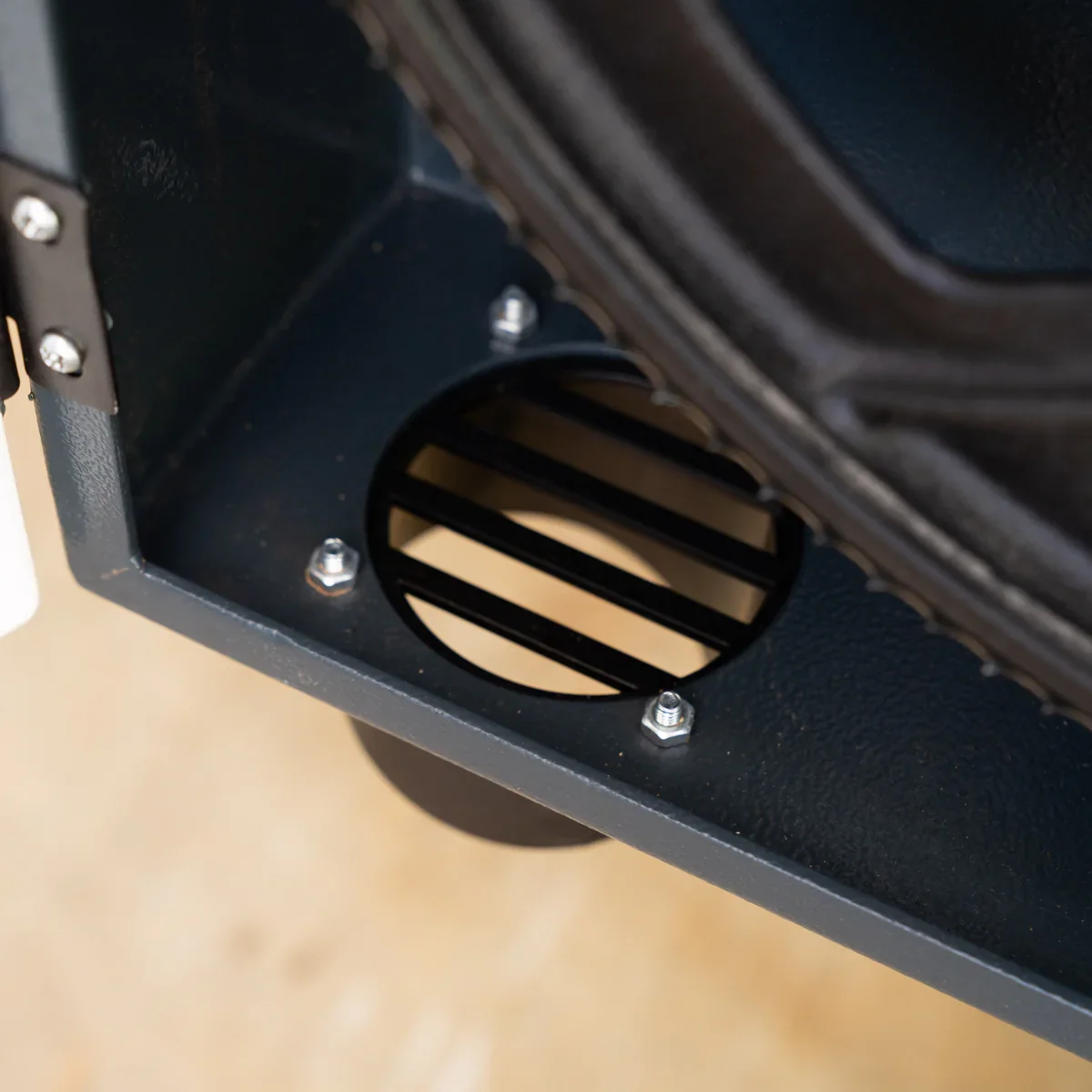

Dust Hose Inlet Diameter 1 x 50mm

Product Length 2400mm

Product Width 1200mm

Product Weight (Net Weight) 242kg

Shipping Weight (Gross) 311kg

Packaging Box Qty 2

Carton 1 (L X W X H x KG) Box 1 of 2 (Top) 1480 x 430 x 695mm (NW: 104Kg) (GW: 133Kg)

Carton 2 (L X W X H x KG) Box 2 of 2 (Base) 2900 x 480 x 325mm (NW: 138Kg) (GW: 178Kg)
