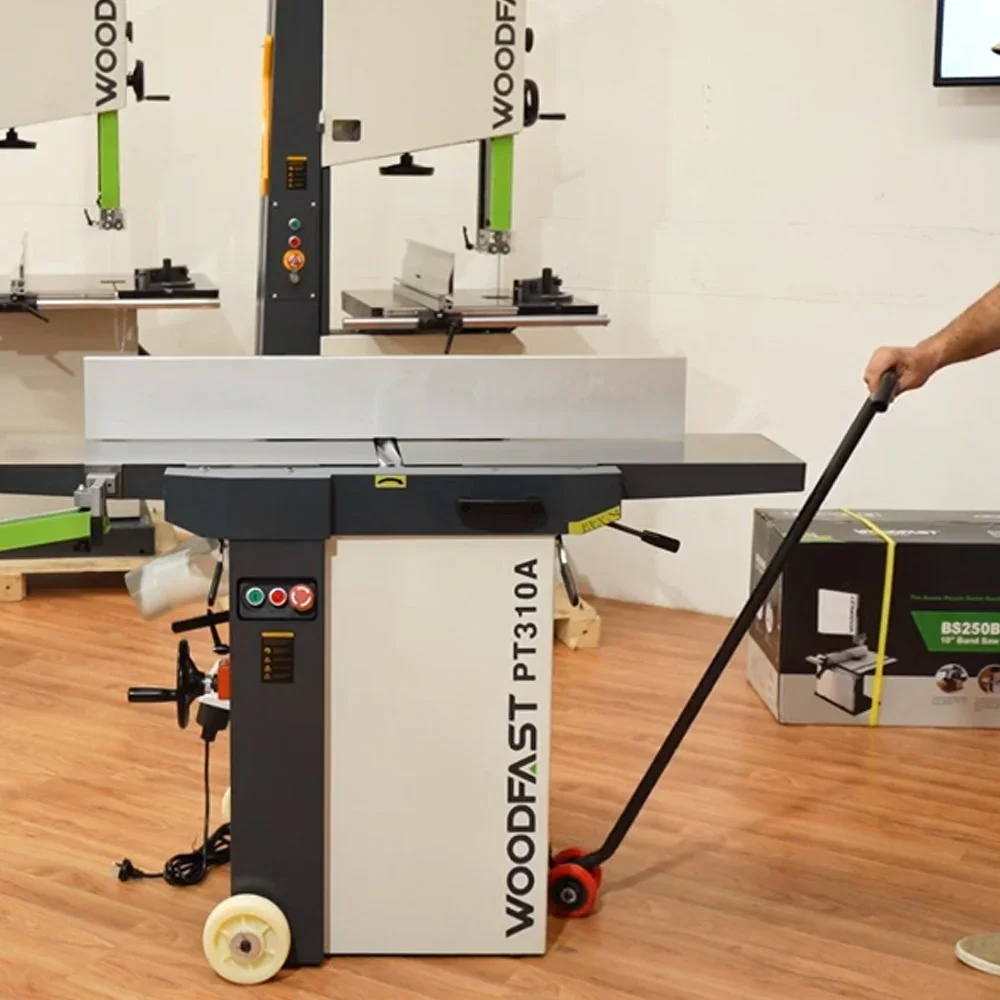

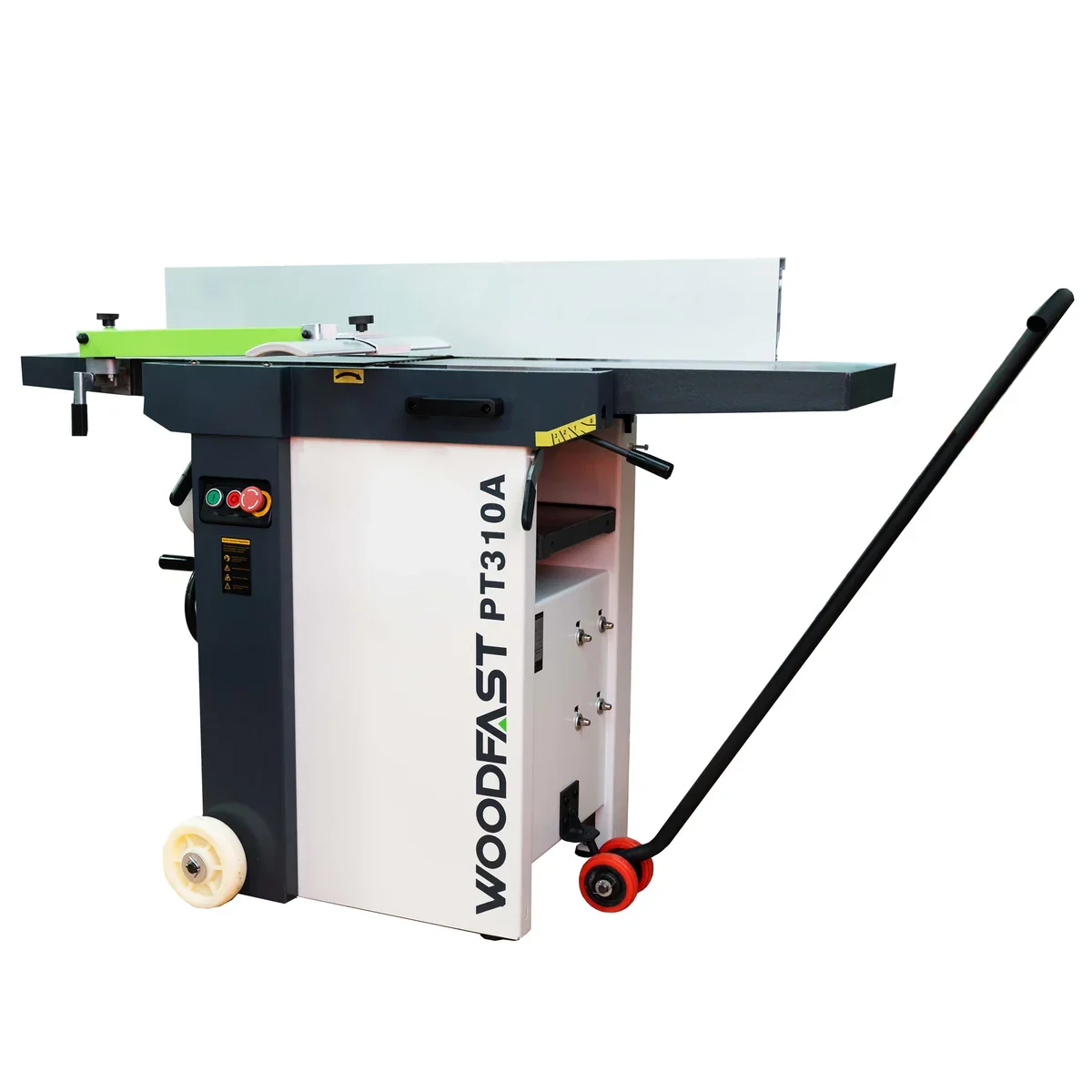

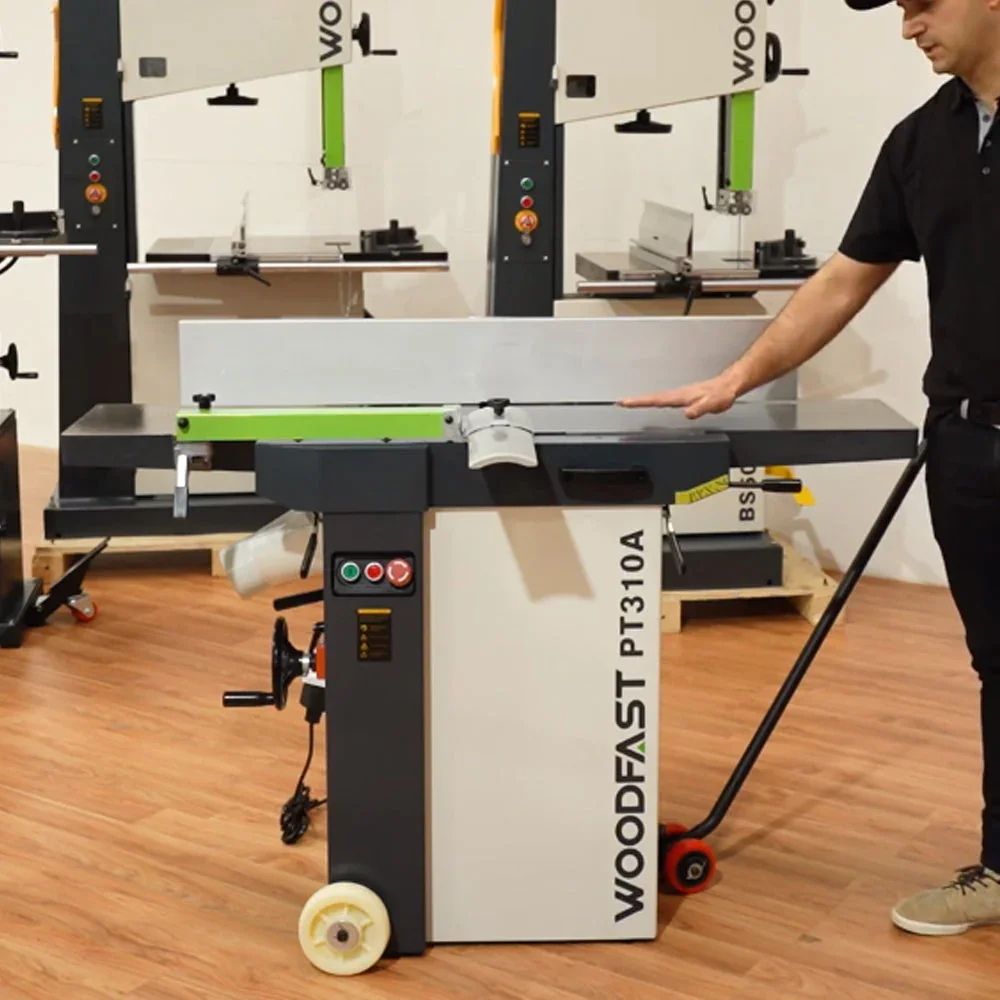

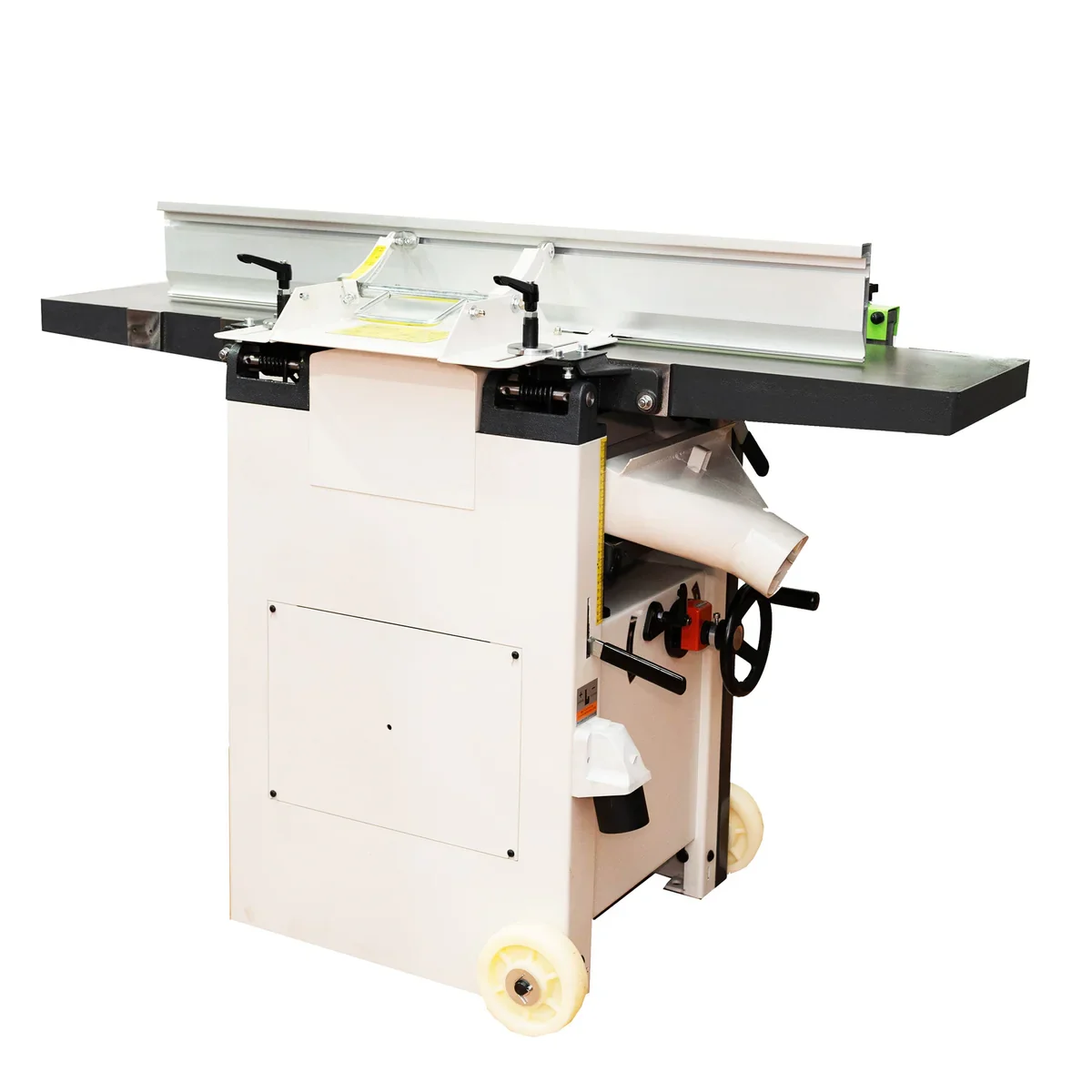

Introducing the Woodfast PT310A Planer Thicknesser - your all-in-one solution for precision woodworking!
This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT310A is built to handle even the toughest woodworking projects.

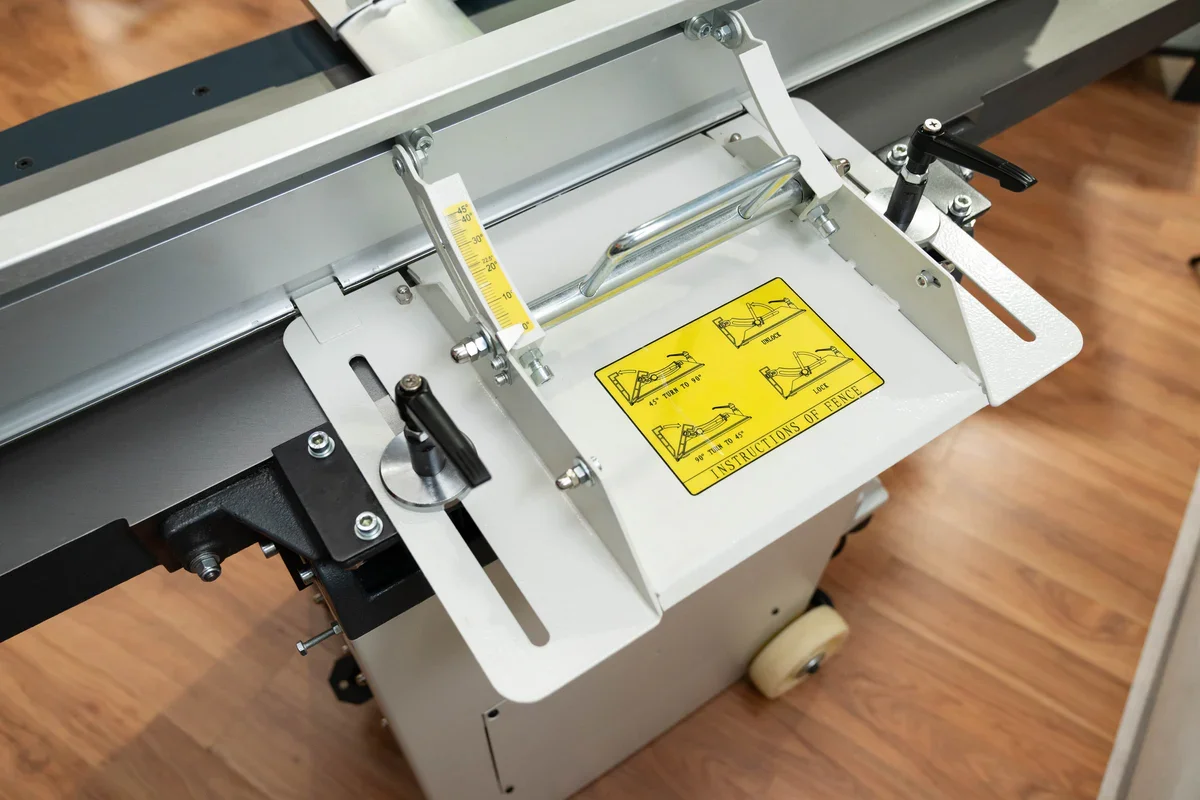

The PT310A has a large 310 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.
ADVANTAGES
310mm (12") wide cutting capacity

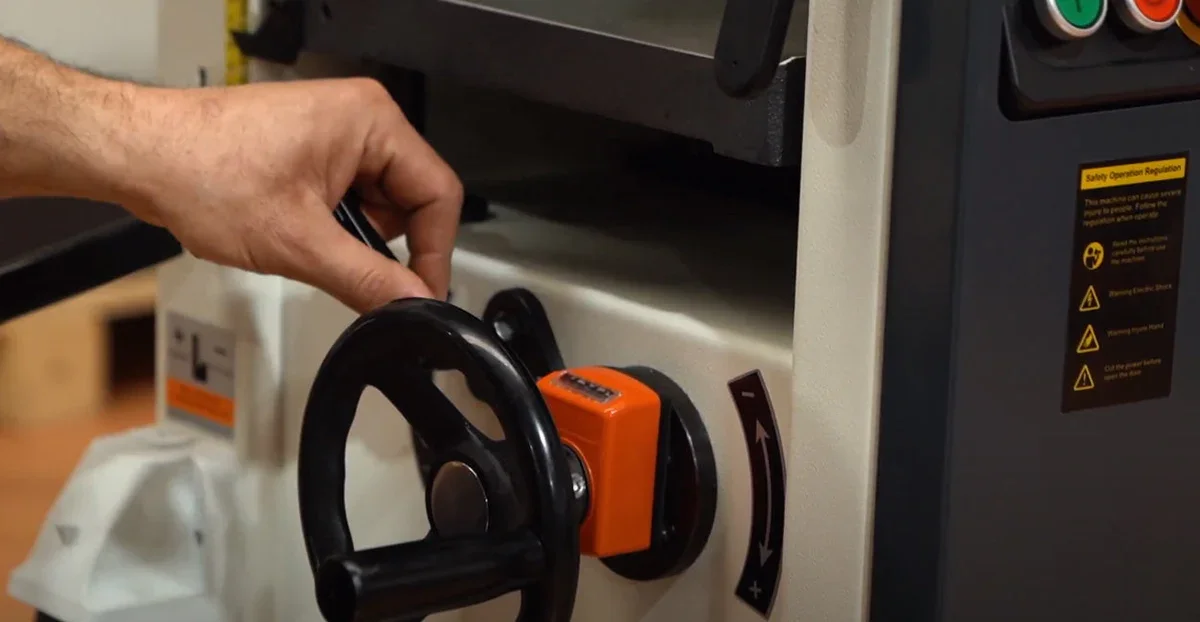

Automatic material thickness measurement for quick and easy setup via digital height readout.
Micromillemeter adjustment of material feeding

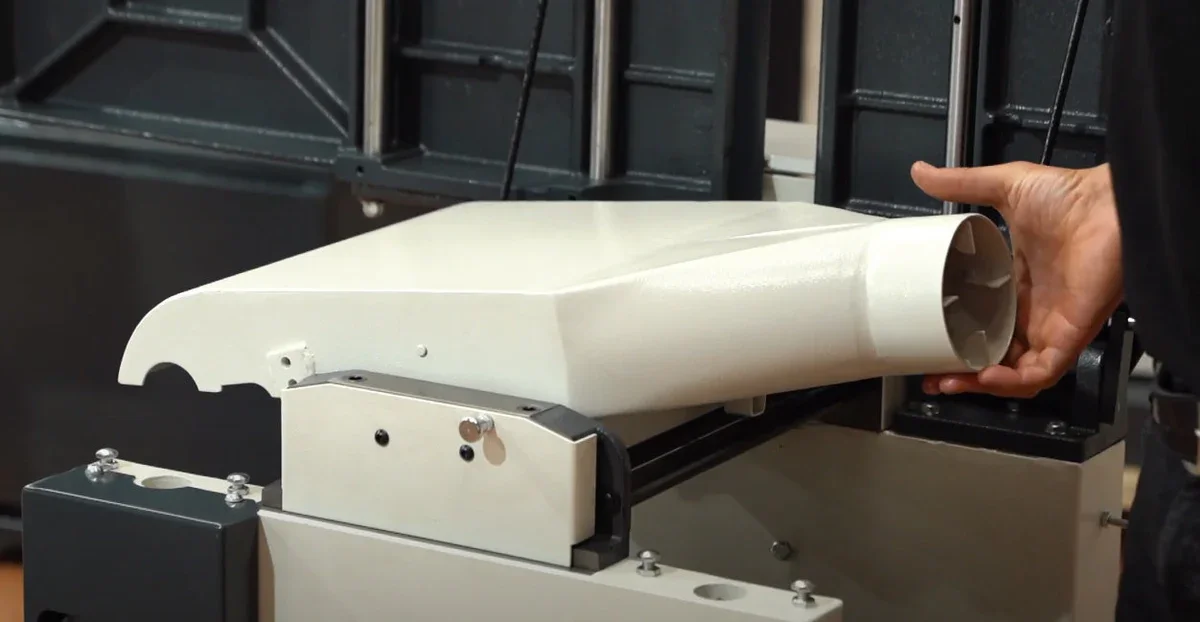

Large dust collection port for efficient dust extraction

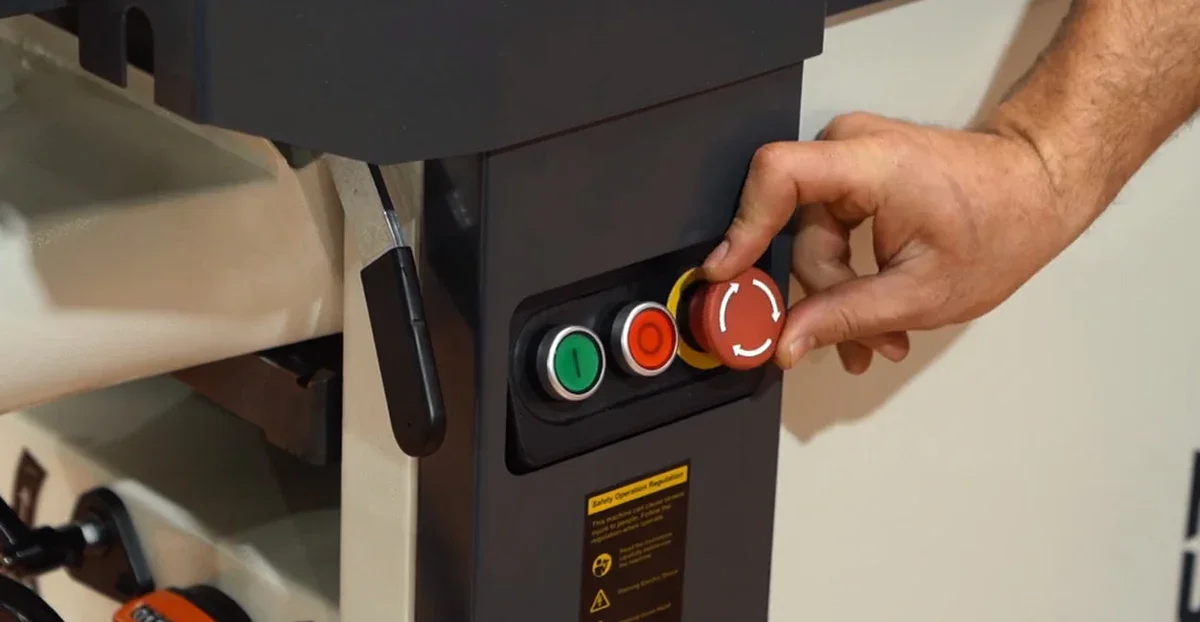

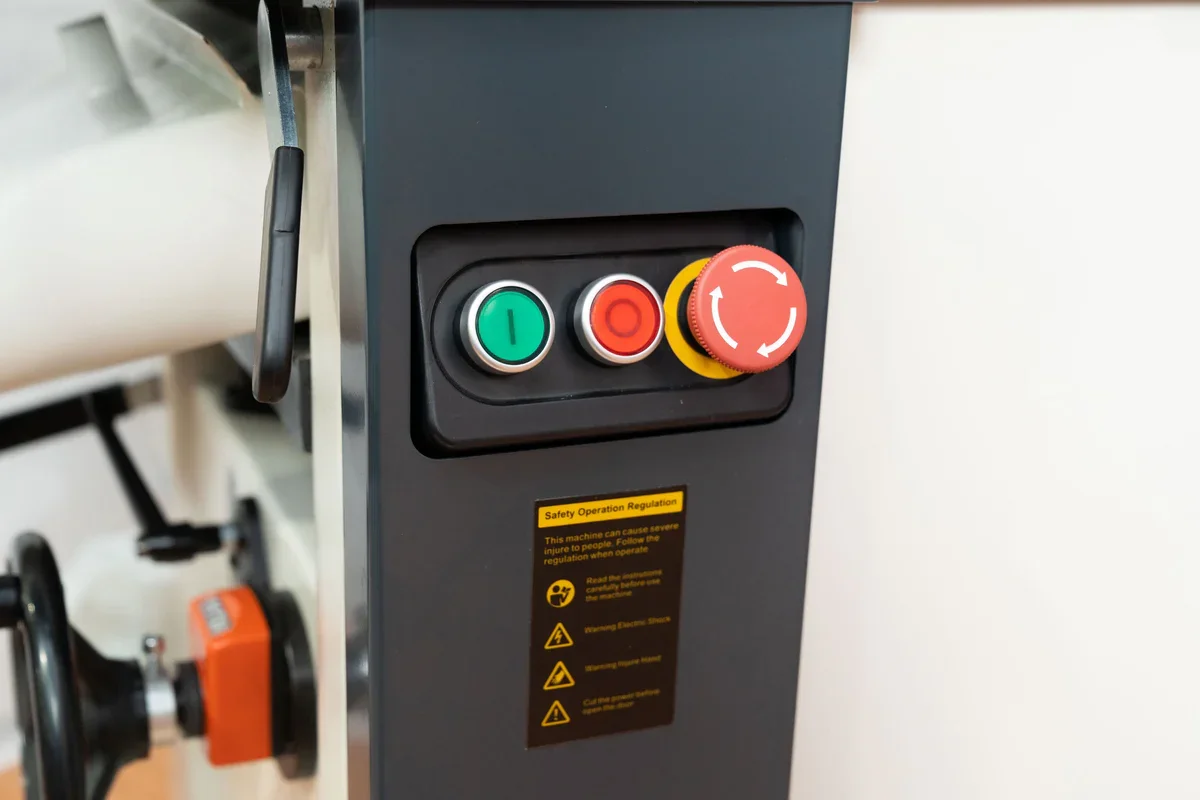

Emergency Stop

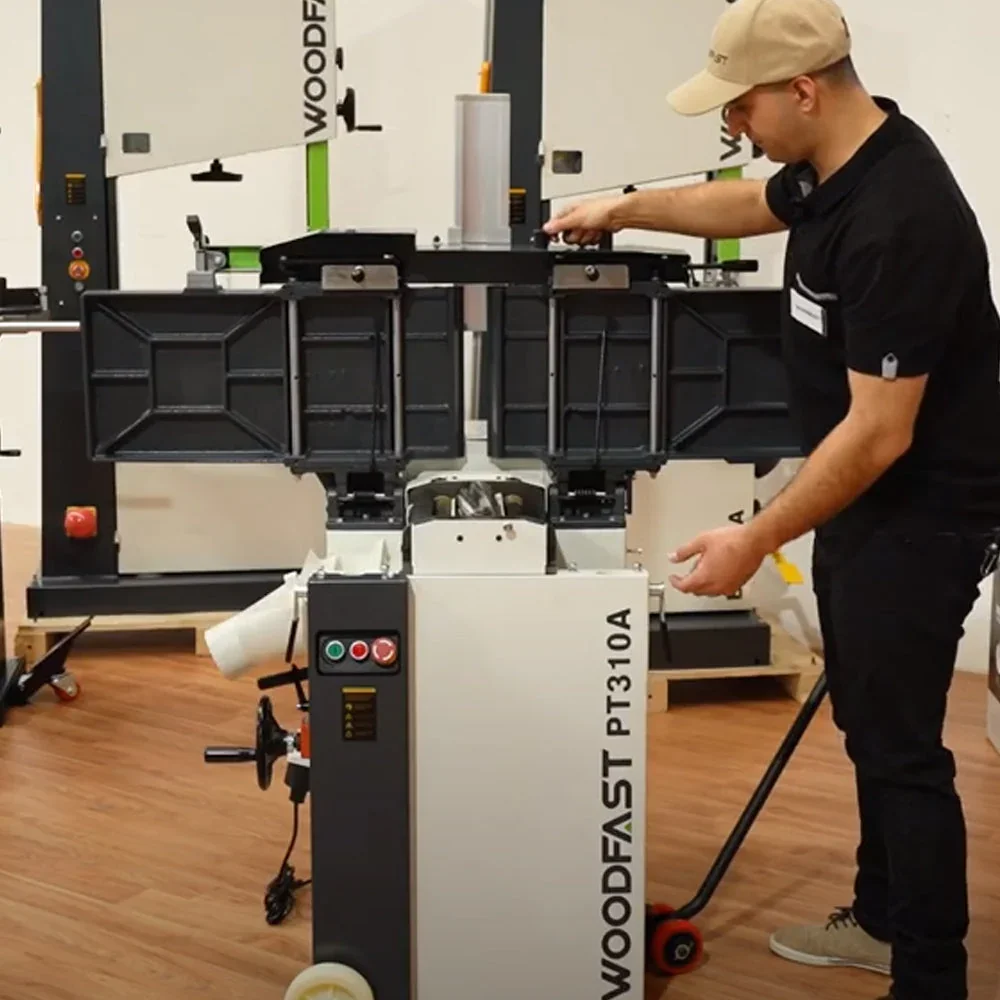

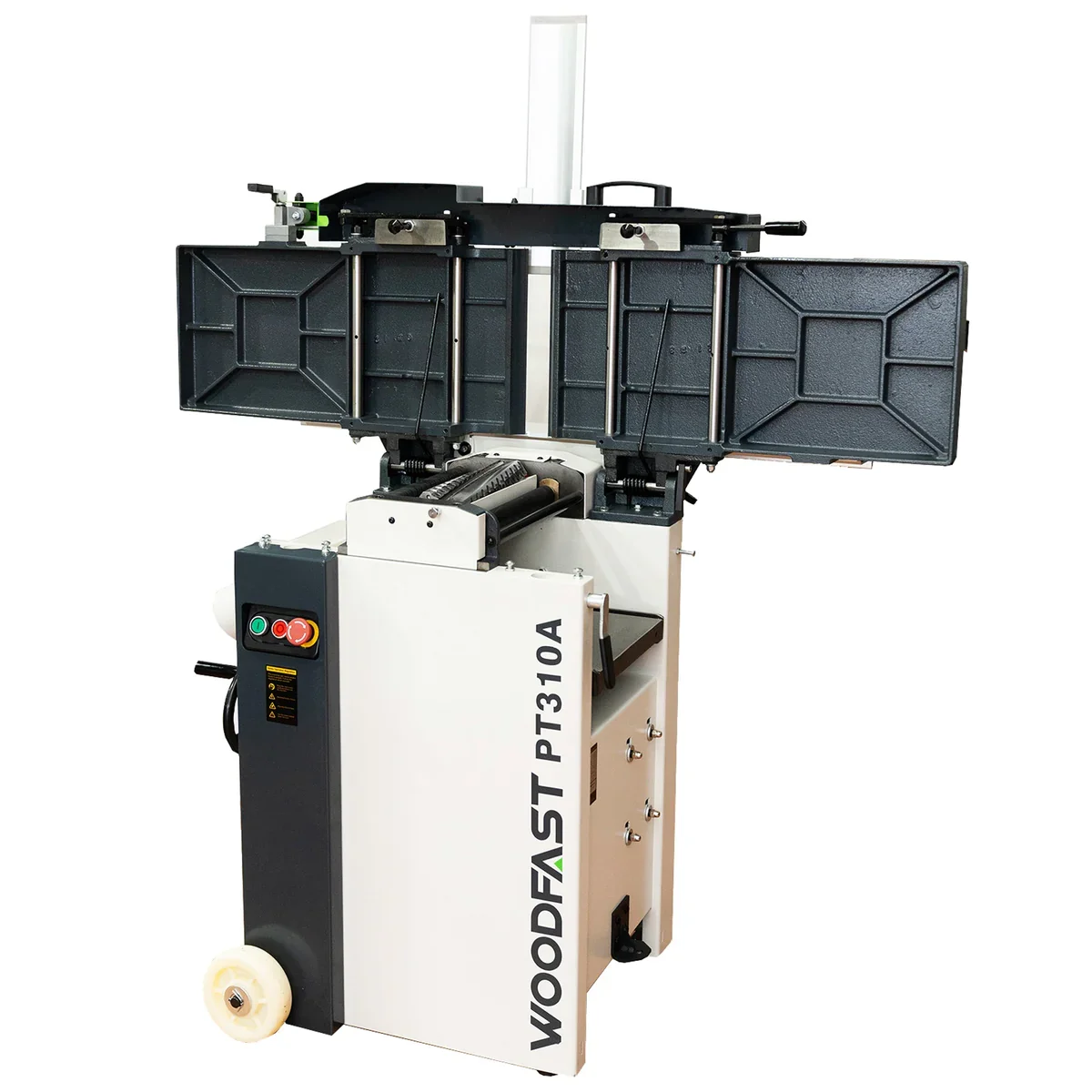

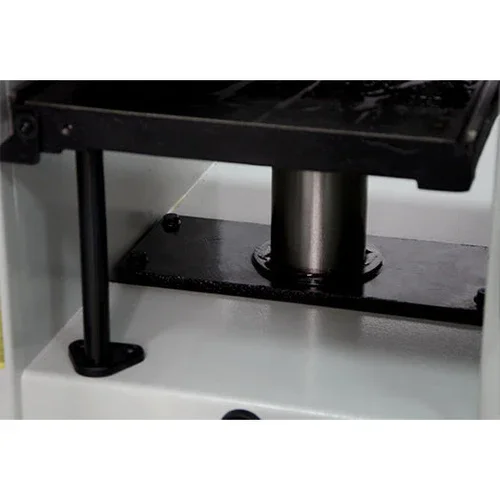

Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.

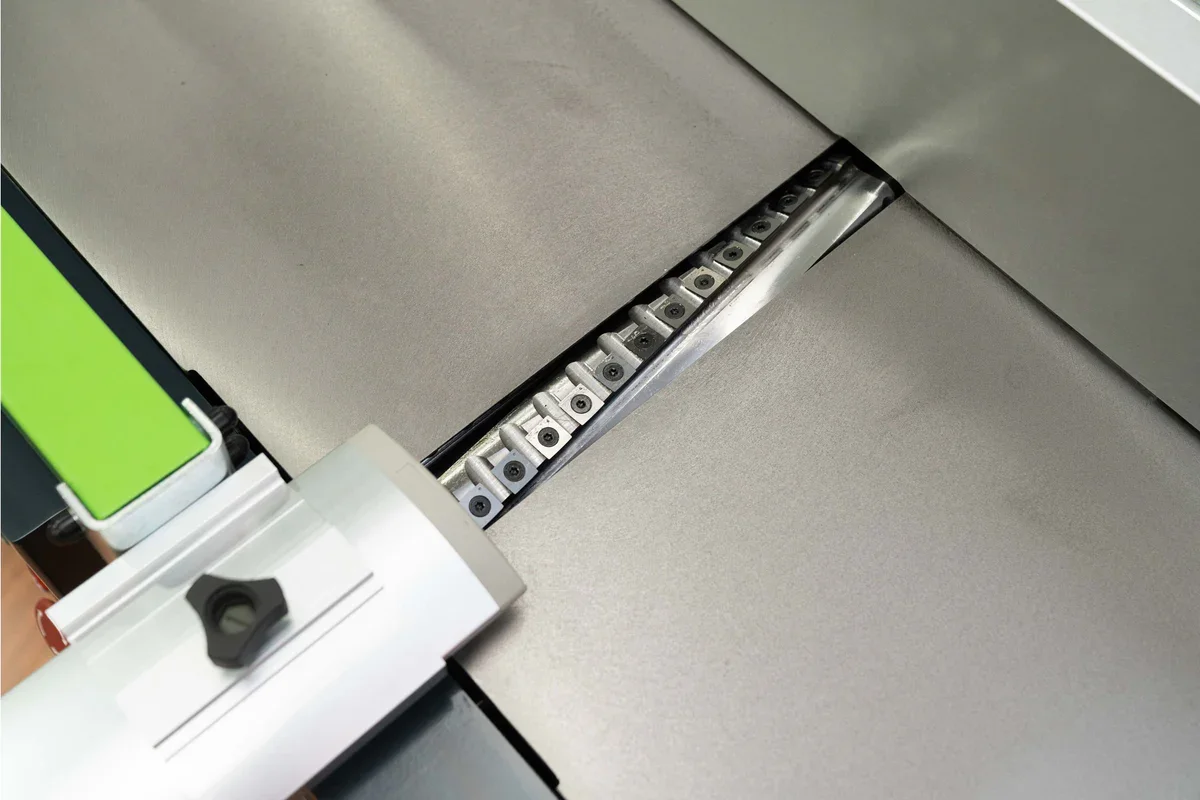

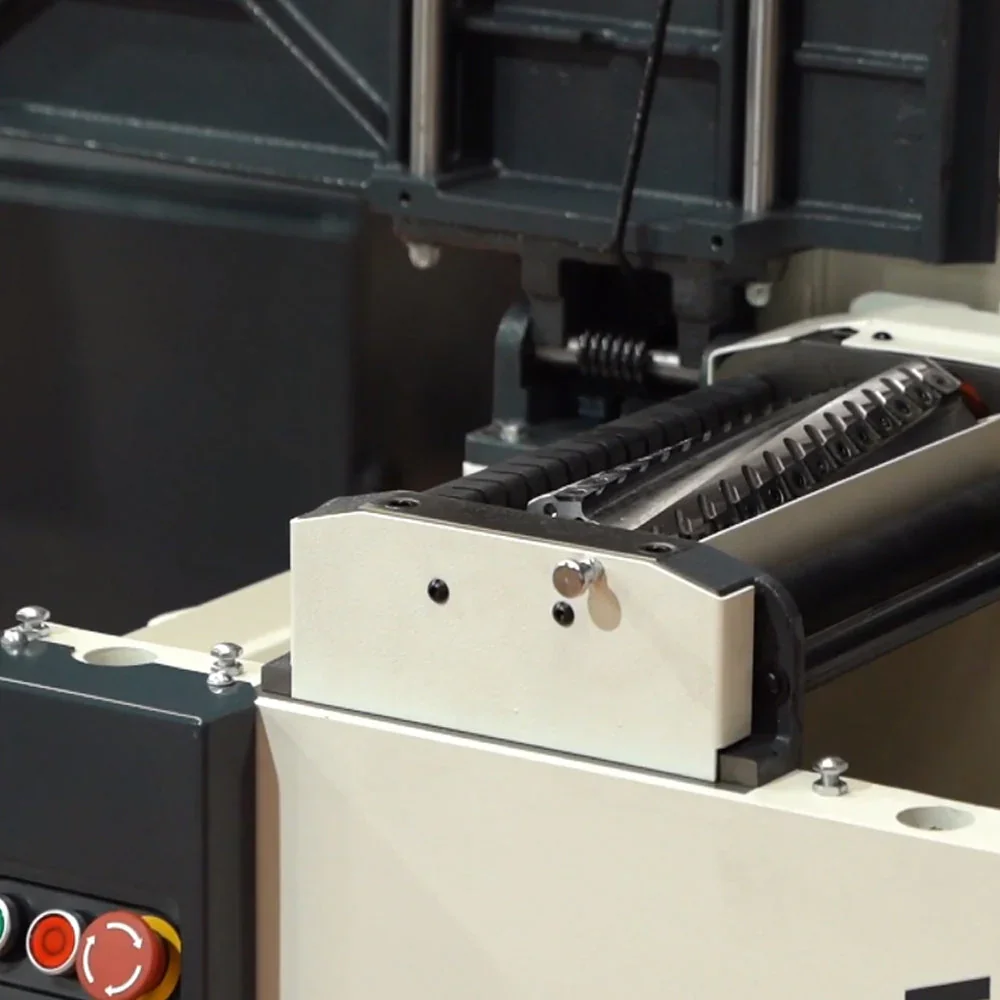

Spiral Head Cutter Block
Thicknessing Capacity is 4mm-225mm x 310mm width
Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration

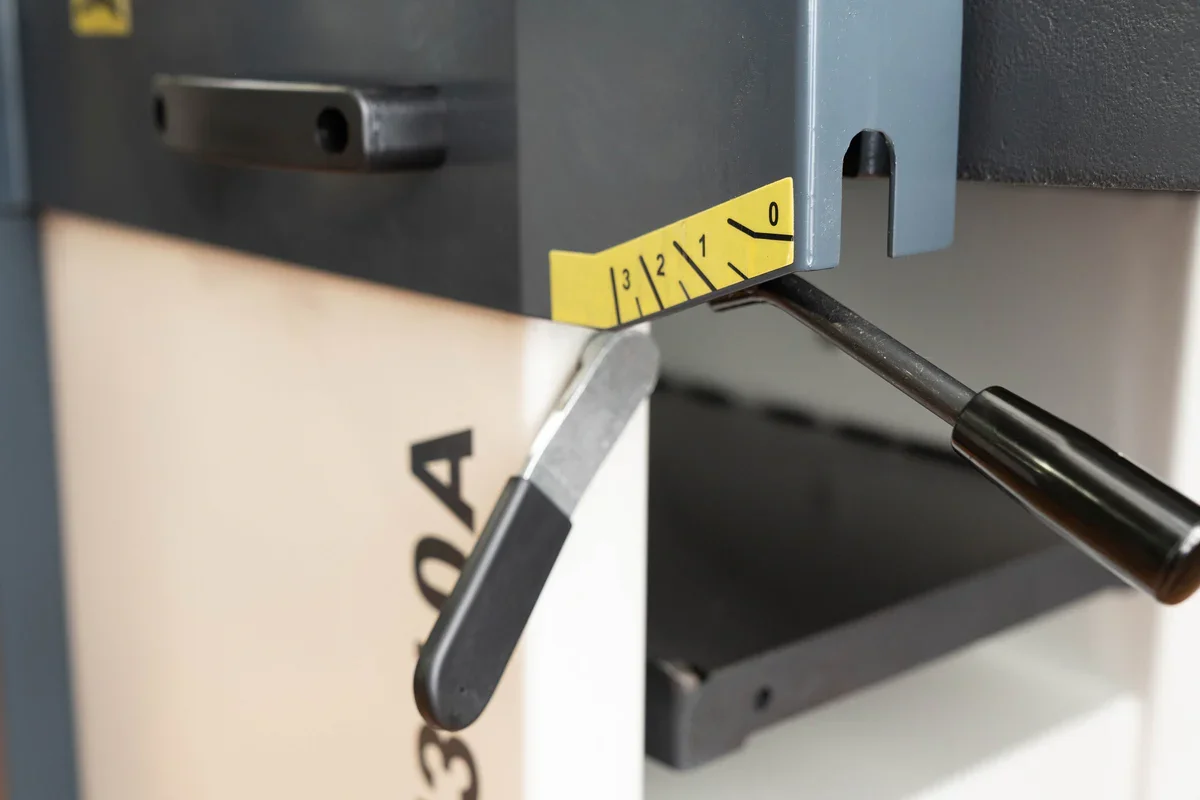

Feed Rollers On / Off Lever
SPECIFICATIONS
SKU 8900080
Part Number PT310A
Size 310mm (12")
Power Source 240V 50Hz Single Phase
Motor Power (Output) 3HP (2.2kW)
Feed Speed 7m / Min
Cutting Capacity - Height 225mm
Blade Width 310mm
Blade - Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter 70mm
Blade - Cutter Head Block Speed (RPM) 5500
Blade - Cutter Head Block - No. of Blades / Tips 72
Dust Hose Inlet Diameter 100mm
Product Weight (Net Weight) 230kg
Shipping Length 1480mm
Shipping Width 580mm
Shipping Height 1480mm
Shipping Weight (Gross) 280kg
