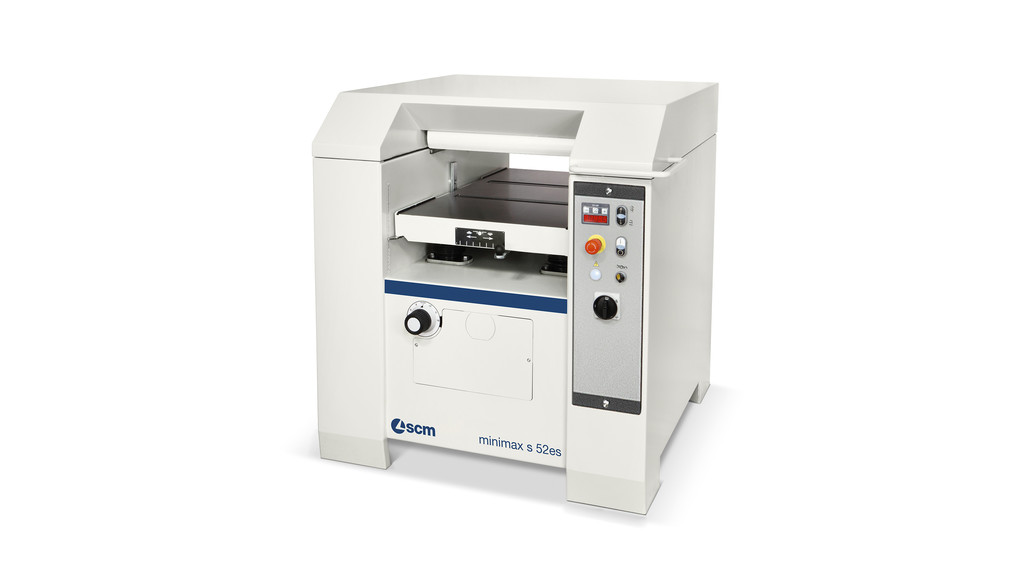

The new minimax s 41es and s 52es thicknessing planer with 520 mm working width, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.

Discover the "Xylent" cutterhead, available for this machine.


ADVANTAGES

Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block  and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller in-feed has a helicoidal profile to guarantee firm and constant work piece feed, while the out-feed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected.

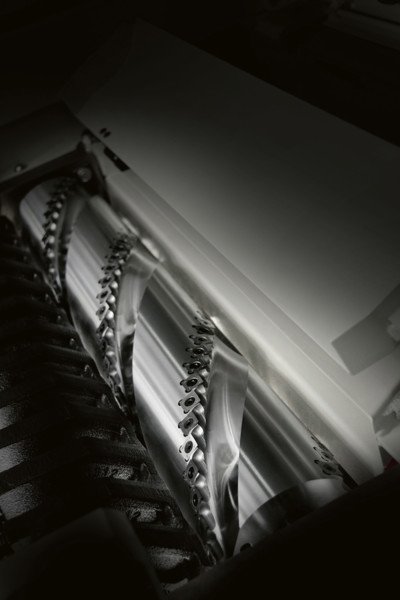

“Xilent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
